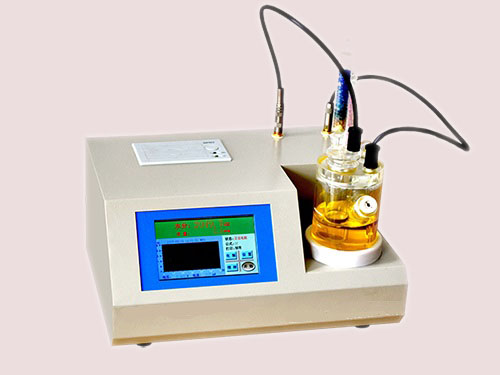

Oil Moisture tester HYWS3000
HYWS3000 micro moisture meter is a new development of the determination of trace water analysis instrument. It uses high resolution color touch LCD display, which is intuitive and easy to operate. The instrument adopts Karl Fisher coulomb titration method, which can reliably determine trace moisture in liquid, gas and solid samples. It is an efficient, fully automated analytical instrument. The instrument is widely used in electric power, petroleum, chemical, pharmaceutical, railway, environmental protection, scientific research institutions and other industries.
Datasheet
Video
Contact Us★The fault diagnosis function, the end of the test, display and print results
★Measuring dynamic curve indicating function, makes the test more intuitive.
★Data storage capacity up to store 500 data records
★Delay measuring function, is very effective in the testing of lower moisture content of specimen.
★Adopt the sliding touch to control the stirring speed.
★Parameters can be modified in a timely manner and does not affect the measurement of moisture content.
| Drop formula | electric quantity titration (Coulomb analysis) |
| Range | 100mg ~ 0ug (10ug ~ 100ug) |
| Threshold | 0.1ug |
| Accuracy | 100ug + 3ug, 500ug + 3% (no error, environmental humidity error) |
| Test sample type | solid, liquid, gas |
| Display method | 64K color high definition touch monitor |
| Data storage | 1000 test records |
| Stir mixing speed | sliding touch panel speed control |
| Printer | micro thermal printer, paper width 56mm |
| Power source | AC220V±10% 50Hz±5% |
| Power | 50VA |
| Using ambient temperature | 5 ~ 35 ℃ |
| The use of environmental humidity | less than 85% |
| Size | 260mm X 220mm 330mm (length x width x height) |
-
