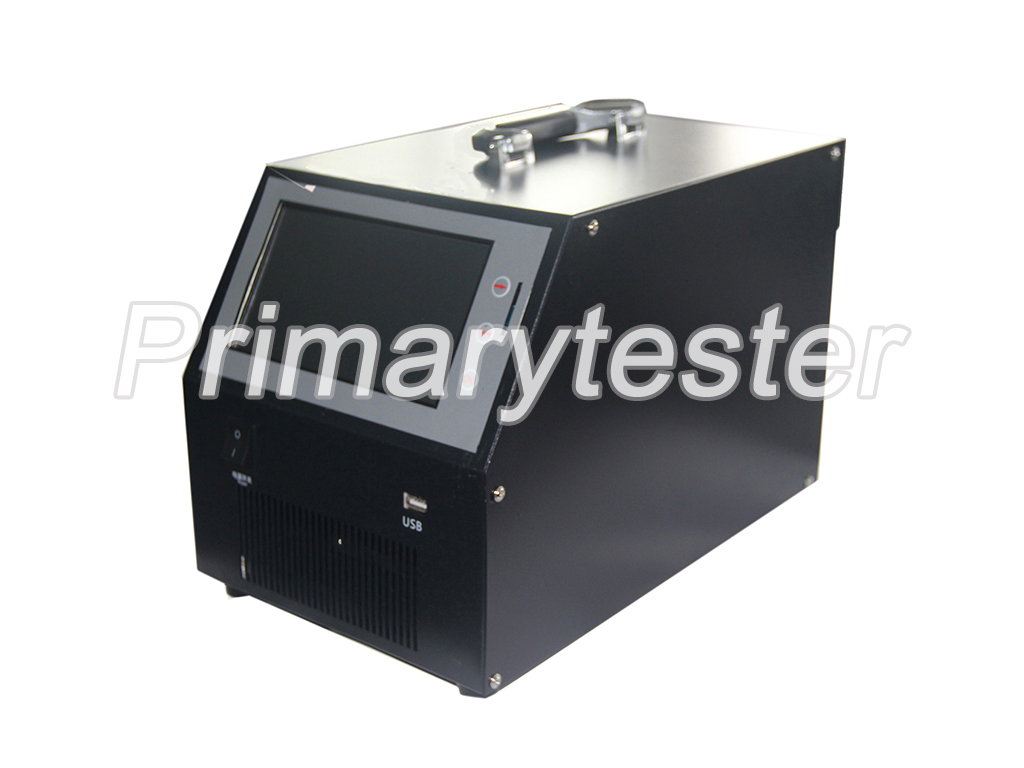

Battery Charger & Discharger HYBT-701

Battery Charger & Discharger HYBT-701 is special equipment for activation of VRLA (hereinafter referred as storage battery) with bad capacity caused by plate sulfuration crystallization. It possesses the functions of “activation” 、“check discharge” and “automatic charging” and etc. This equipment adopts current advanced testing technology theory, and it has obtained a series of breakthrough in research and application of new technology, new parts, new material and new technics.


Features
Technical Specification


Measurement type   of cell voltage

2V/6V/12V;

Measurement   range of cell voltage

2V:03V; 6V: 4-8V; 12V:4-15V

Resolution of cell voltage

2V: 0.001V,6V:   0.01V, 12V:0.01V

Voltage testing   accuracy

0.5%

Working range of   charge and discharge current

2A100A

Control accuracy   of charge and discharge current

0.1A

Current testing   accuracy

1%

Battery capacity   check range

2V:20-1000Ah;   6V:20-200Ah:12V:20-300Ah;

Working voltage

AC 220±15%

Communication   mode

RS232   communication and USB communication

Cooling mode

Refrigeration by   blasting

Working   environment

Temperature: 040    Humidity: 20%80%RH

Storage   condition

-2070  package and storage

Display mode

LCD with   High-brightness

External   dimensions(w×h×l)

450mm×190mm×585mm

Weight

11kg

Carry method

Portable type   ,move with roller wheel


Instrument parameter setup range:

Battery type

Charge/discharge   current

Charge/discharge   time

Min final   voltage of discharge

Max limit   voltage of charge

2V

2100A

00:0199:59

1.65V

2.50V

Activation   cycling

18

Charge/discharge   time of single cycle during activation

00:0119:59

6V

 220A

00:0199:59

4V

7.8V

Activation   cycling

18

 Charge/discharge   time of   single cycle duringactivation

00:0119:59

12V

 2A30A

00:0199:59

 8V

15V

Activation   cycling

18

Charge/discharge   time of single cycle during activation

00:0119:59
