Home > Products > Insulating Oil Tester HYYJ-501

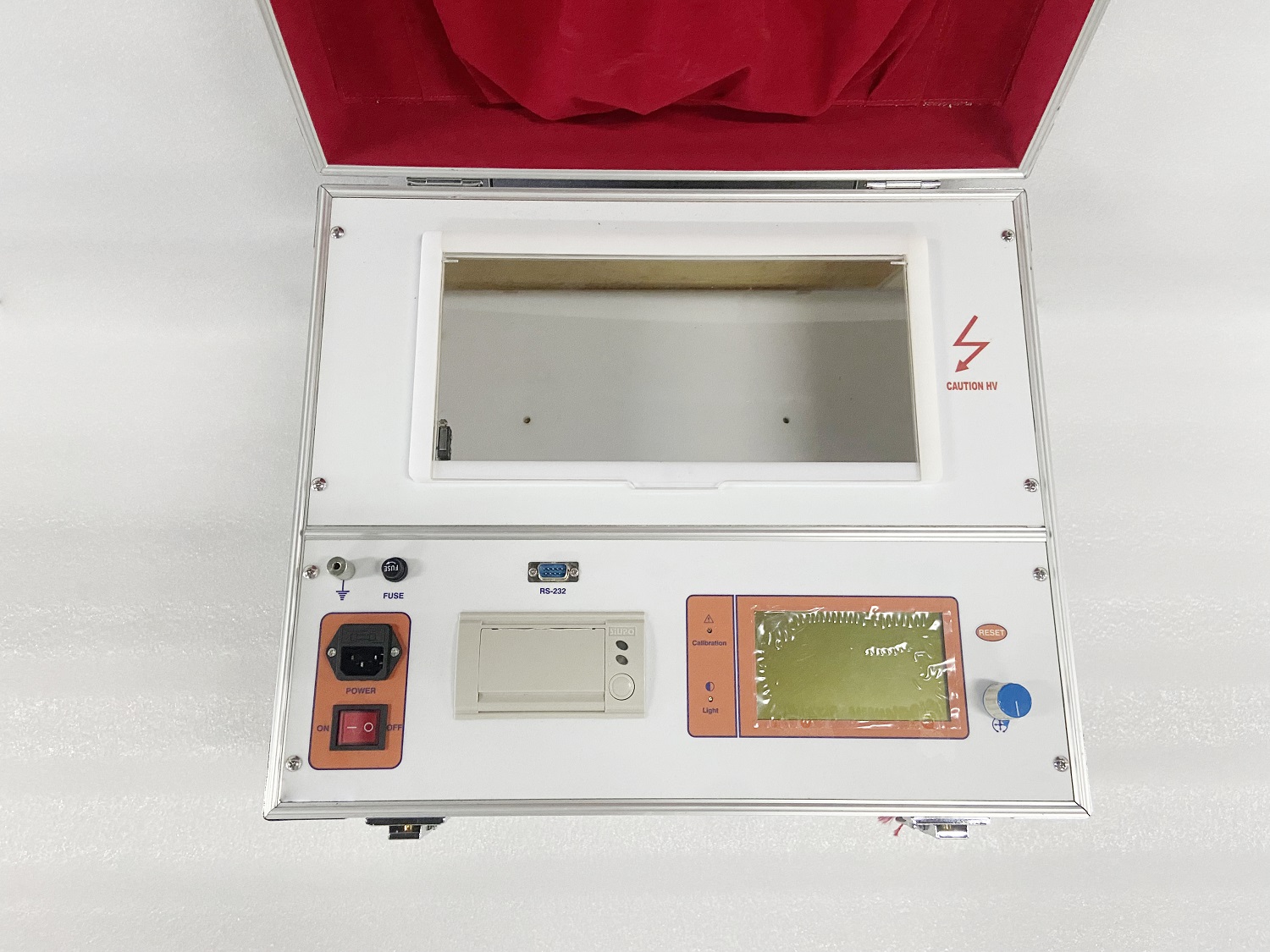

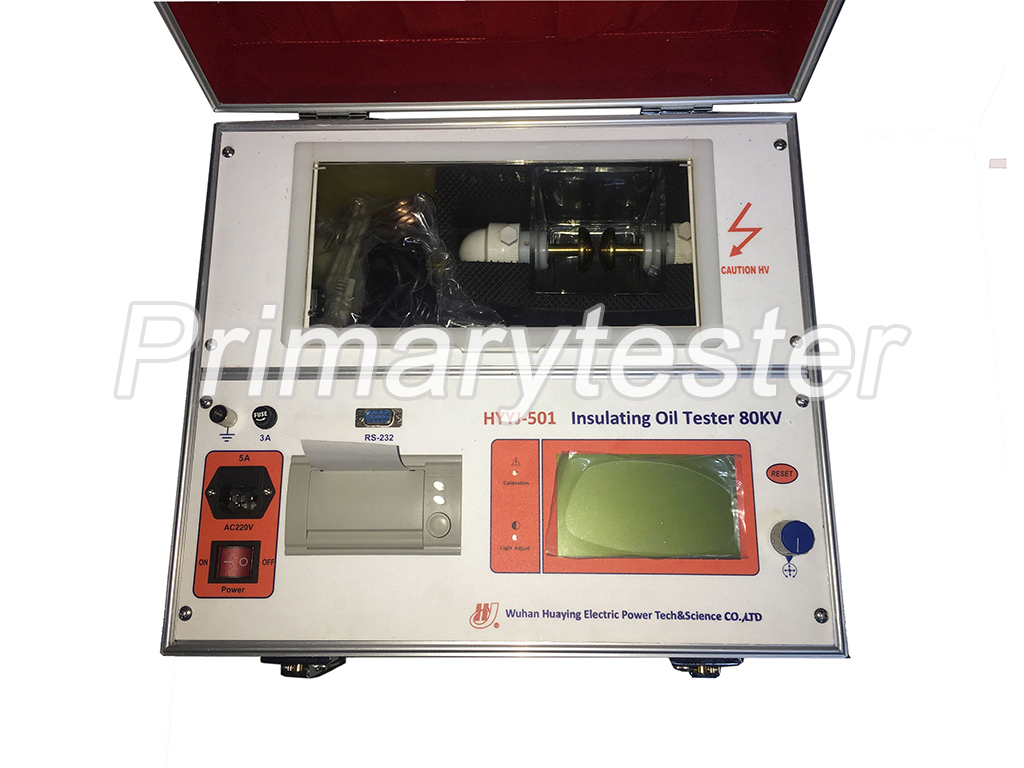

Insulating Oil Tester HYYJ-501

The insulating oil tester HYYJ-501 is developed according to the national standard GB-86 "Insulation oil dielectric strength measurement method". The test process and result is displayed in the LCD screen. The built-in EEPROM memory can save up to 100 sets of test data and results. The micro-printer can print the test results at any time. The tester is easy to operate, powerful, stable and reliable, and it has excellent anti-interference ability. No crash occurred during the test.

Features
Technical Specification
Power supply inputAC220V input
Output voltageAC 0V~80KV (80KV)
AC 0V~100KV (100KV)
Rate of voltage rise2kv/s±10%
Max test times9
Stir time0~999s
Wait time0~999s
Test error3% max in the range of 10kv~80kv (80KV)
3% max in the range of 10kv~100kv (100KV)
Storage100 groups
Weight 28kg
Size420 mm*380mm*410mm


Product Certificates

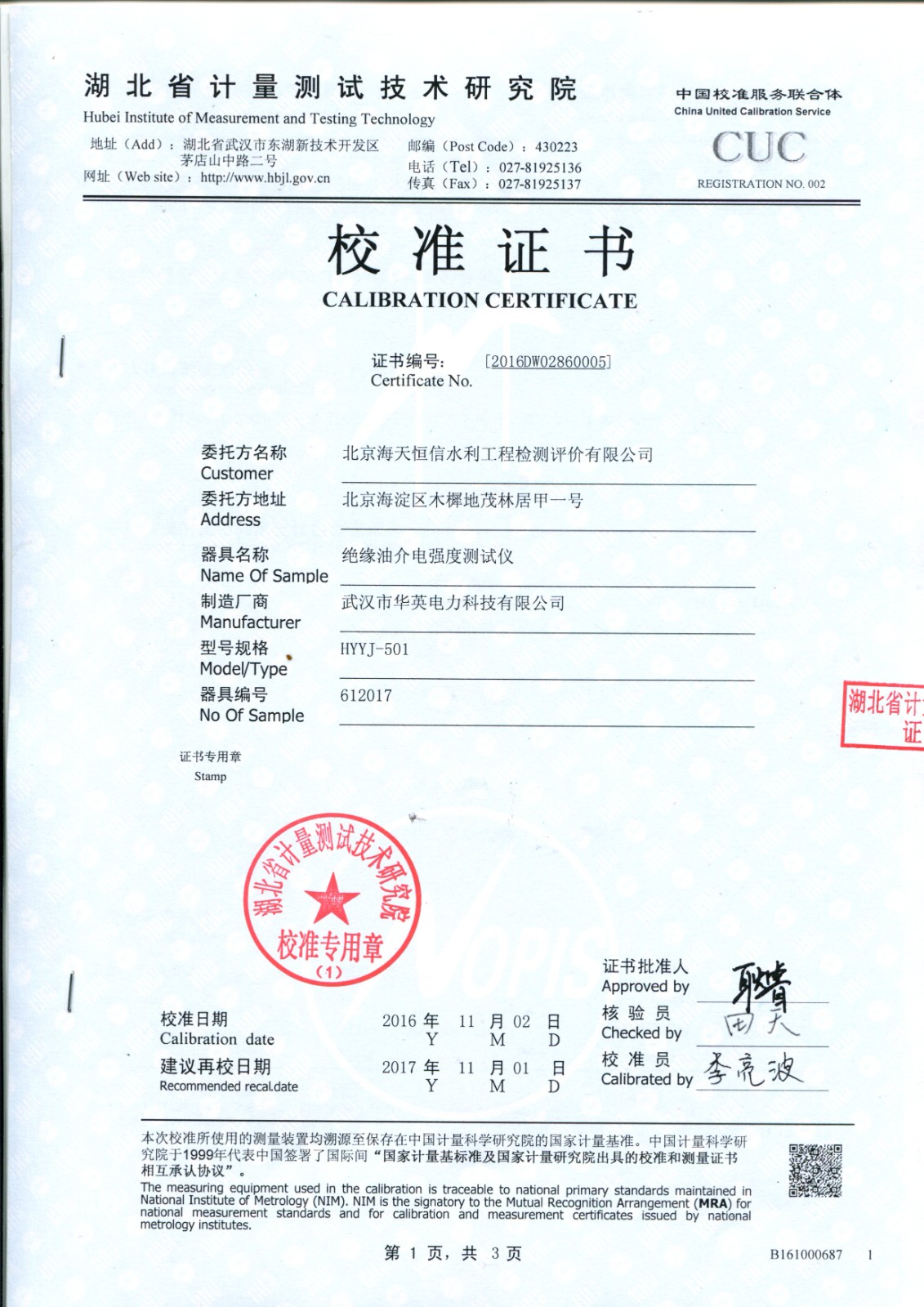

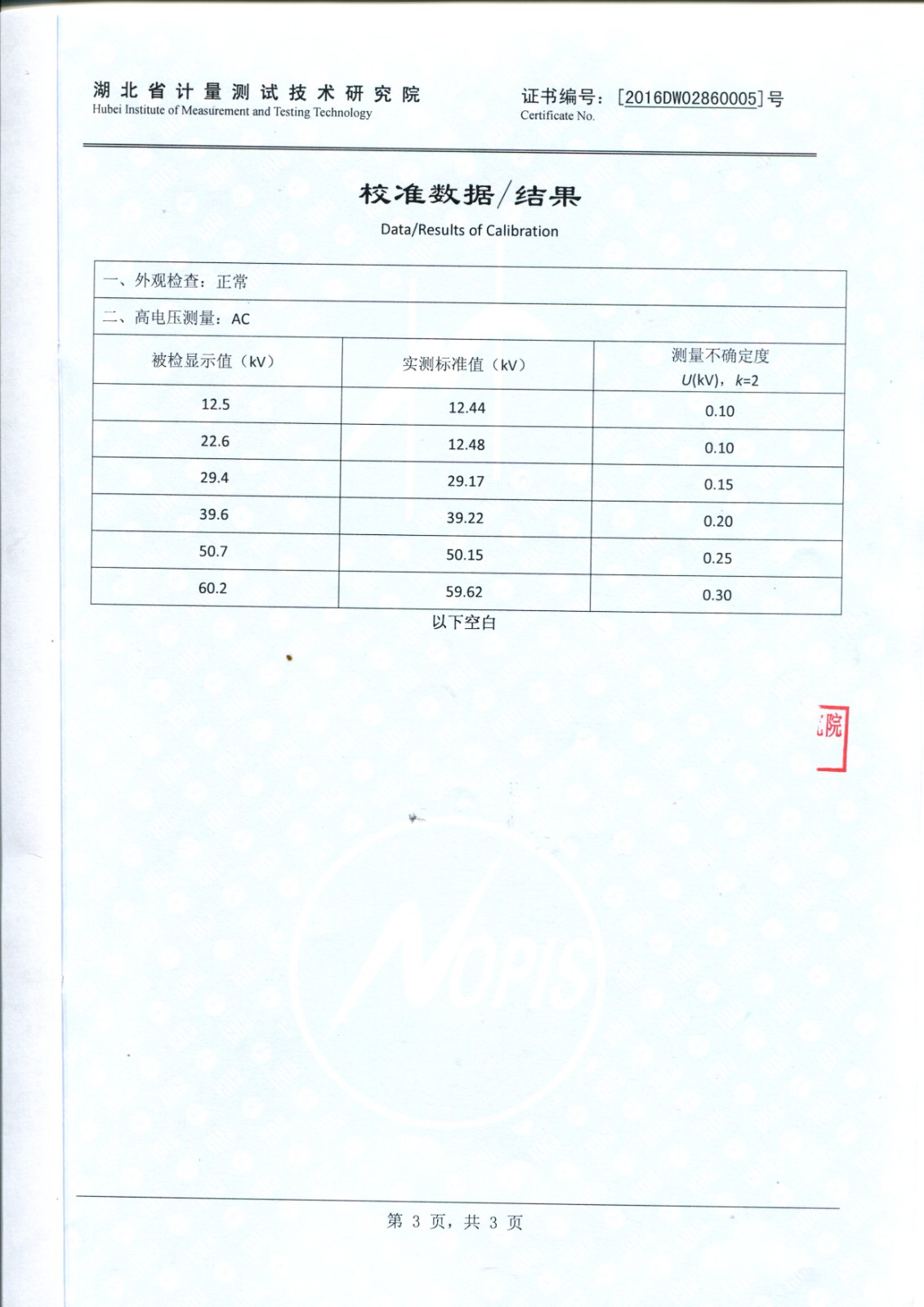

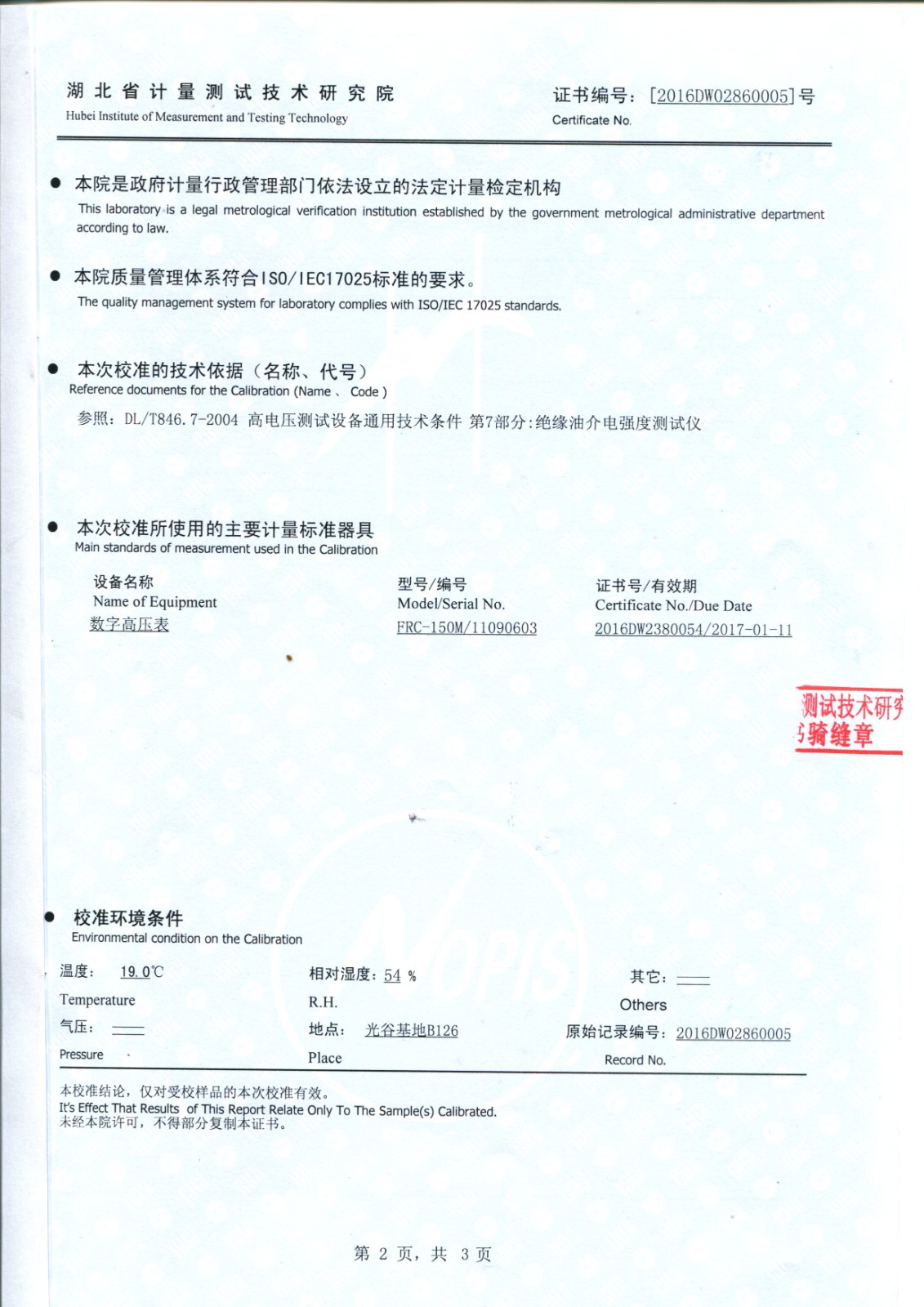

Calibration certificate of Insulating Oil Tester HYYJ-501 issued by Hubei Institute of Measurement and Testing Technology

Service commitment
