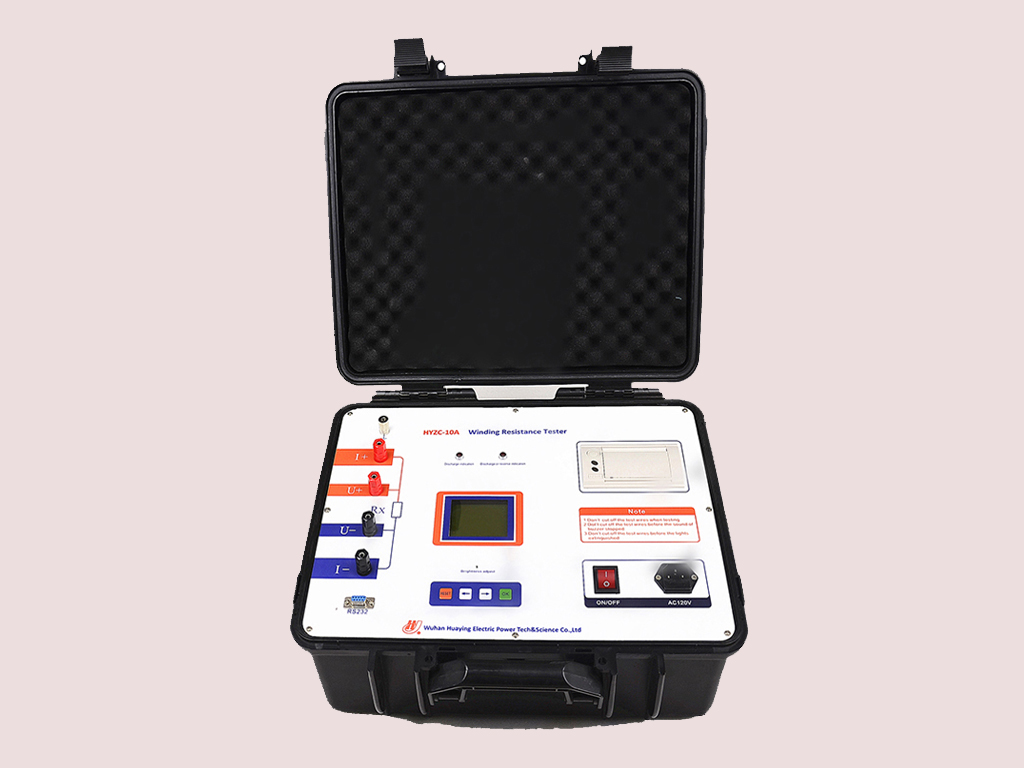

Winding Resistance Tester HYZC-10A

HYZC-10A winding resistance tester has five current positions of 20mA, 200mA, 2A, 5A, 10A. It is a ideal tester for testing various resistances especially the sensibility equipment.

Technical Specification

1. Resistance precision:±(0.2%RGD+2d)

2. Test range:


    100.0mΩ-100.0Ω (200mA)

    10.00mΩ-10.00Ω (2A)

    4.000mΩ-4.000Ω (5A)

    2.000mΩ-2.000Ω (10A)

3. The least scale:1uΩ

4. Output current precision:±5%

5. Support for data uploading to PC

6. Two hundred groups of data can be stored

7. With thermal printer to print the test data

8. Weight:10KG

9. Power supply:AC220V±10%,(50±1)HZ

10. Operation condition:-10~50℃  Humidity <90%  no condensation

Product Certificates

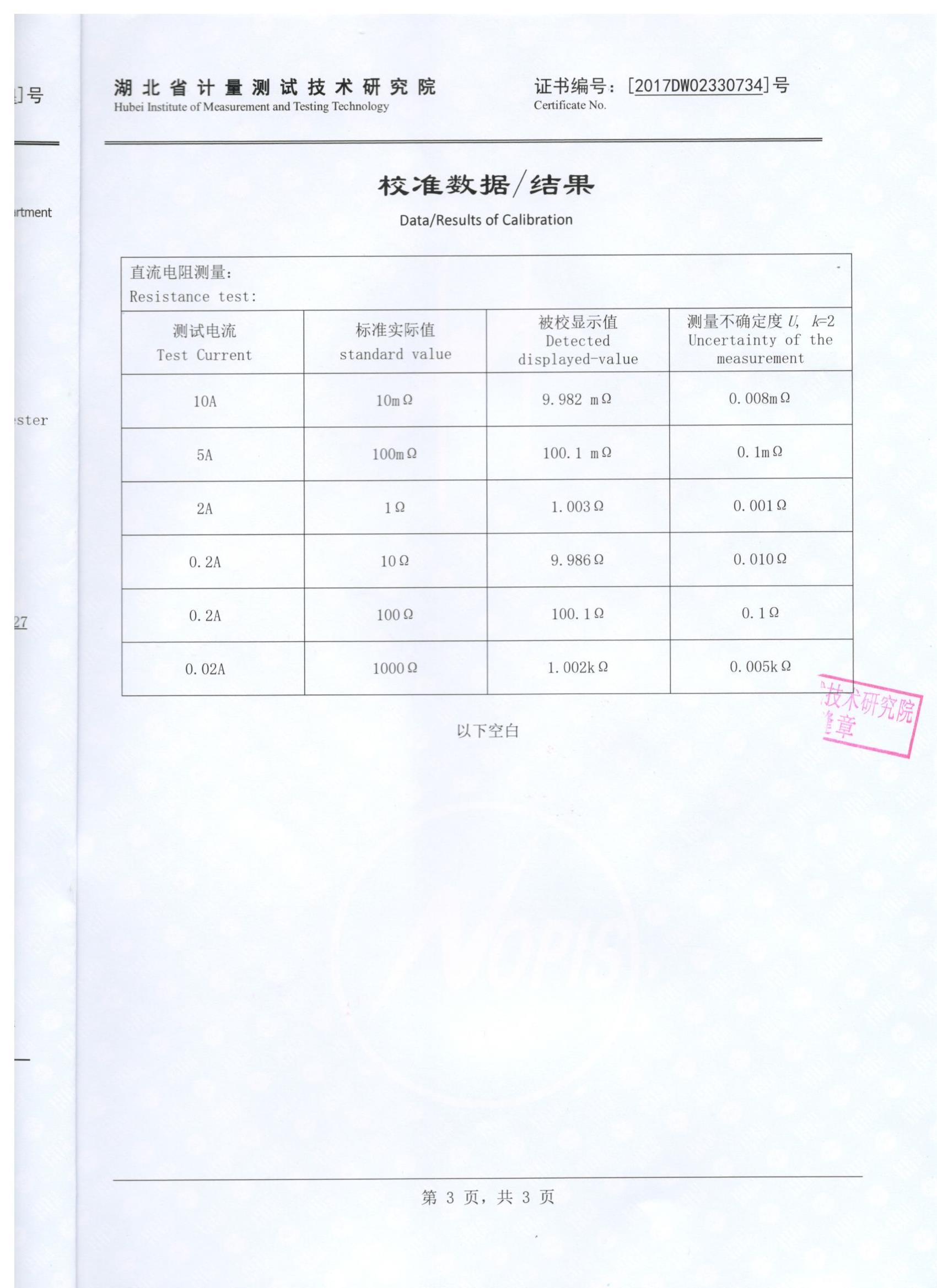

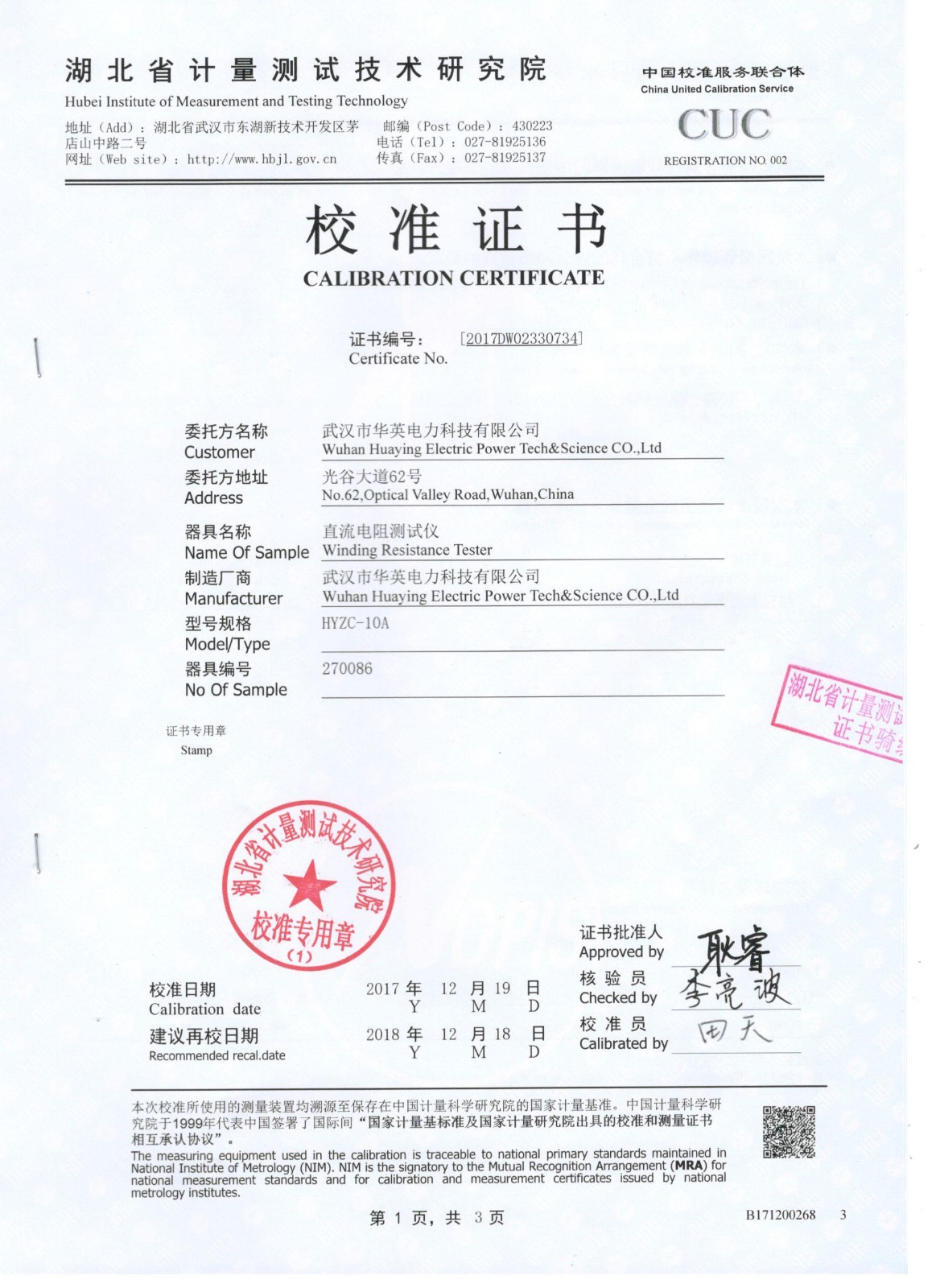

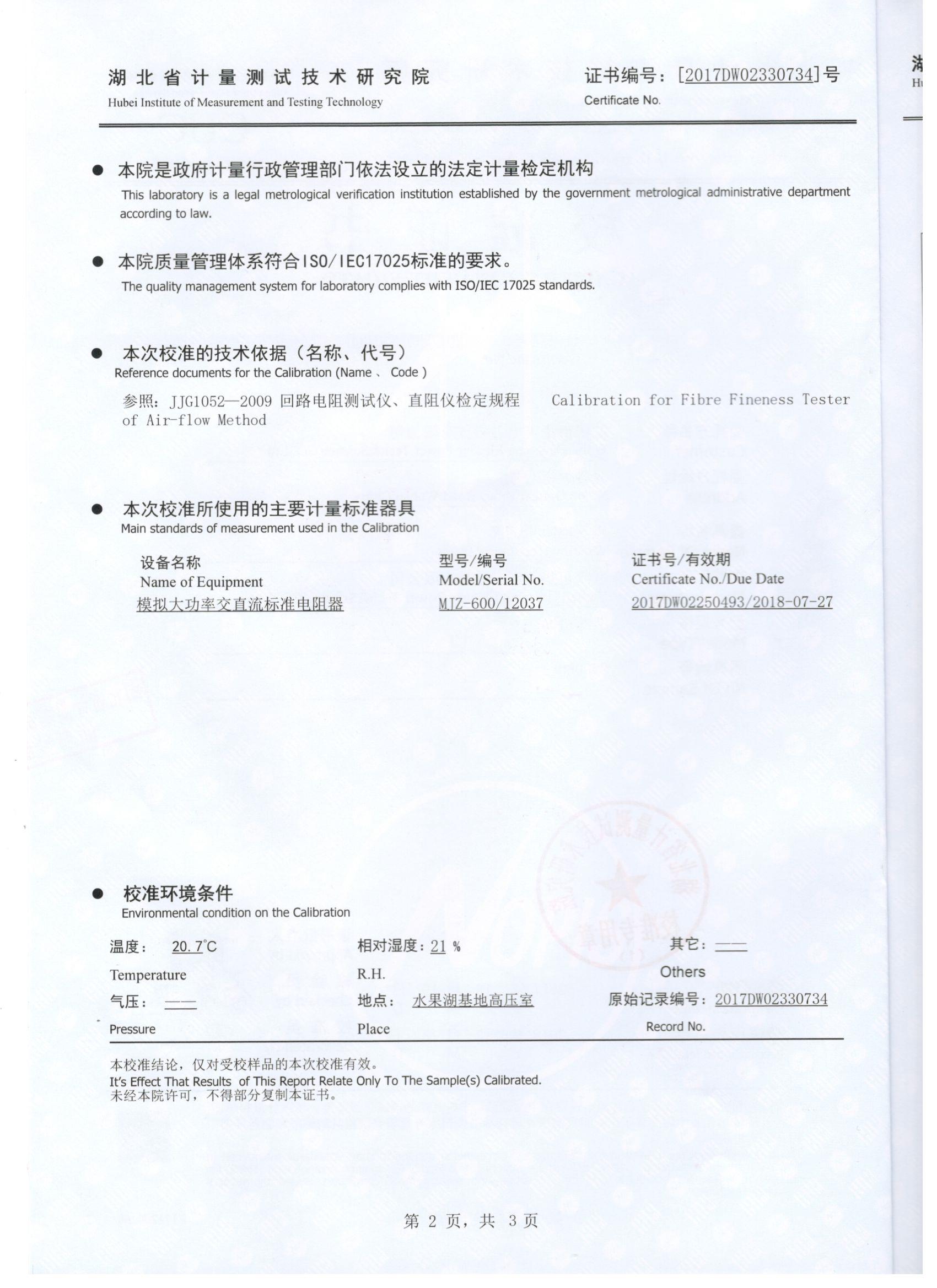

Calibration certificate of Winding Resistance Tester HYZC-10A issued by Hubei Institute of Measurement and Testing Technology
