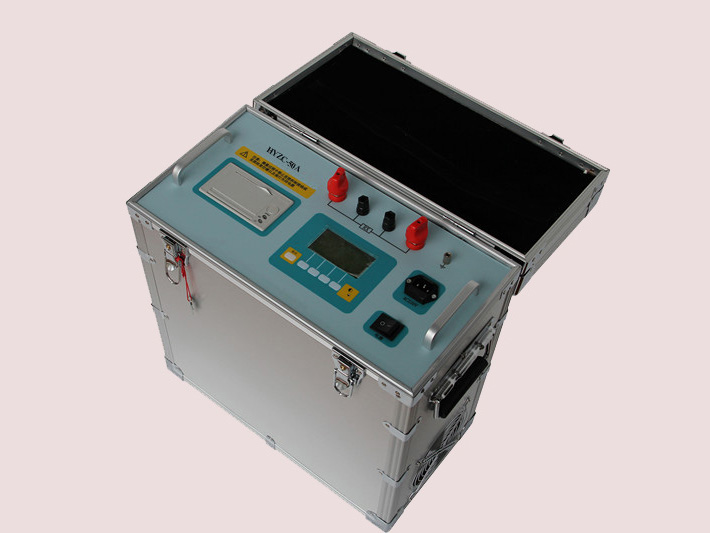

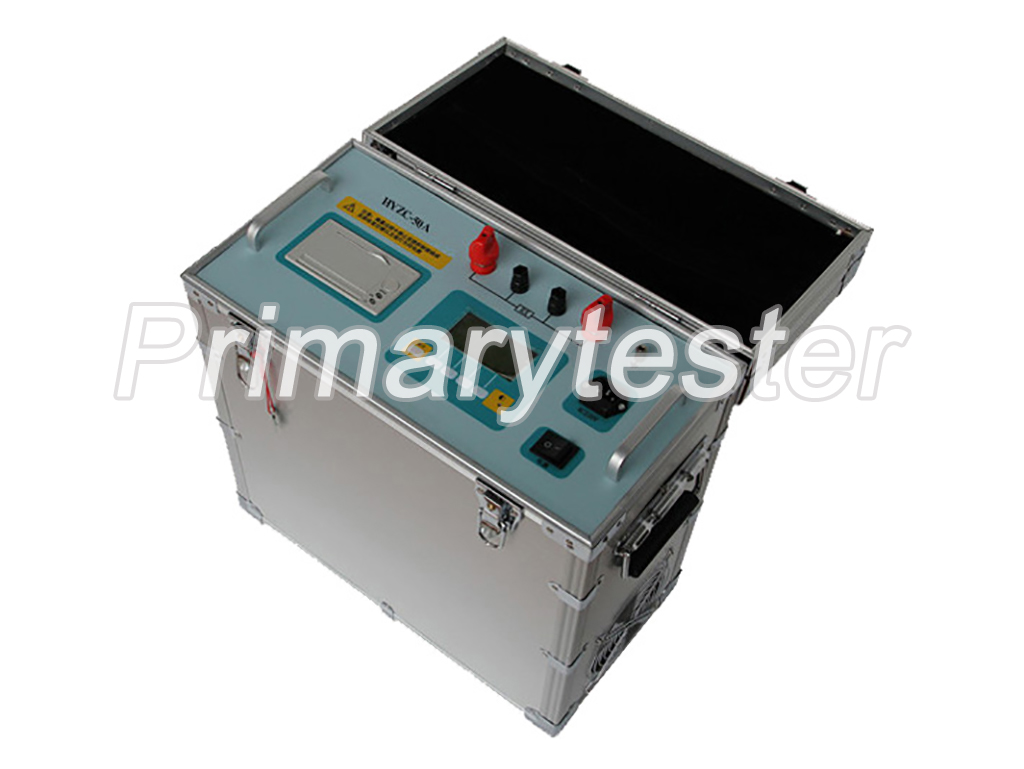

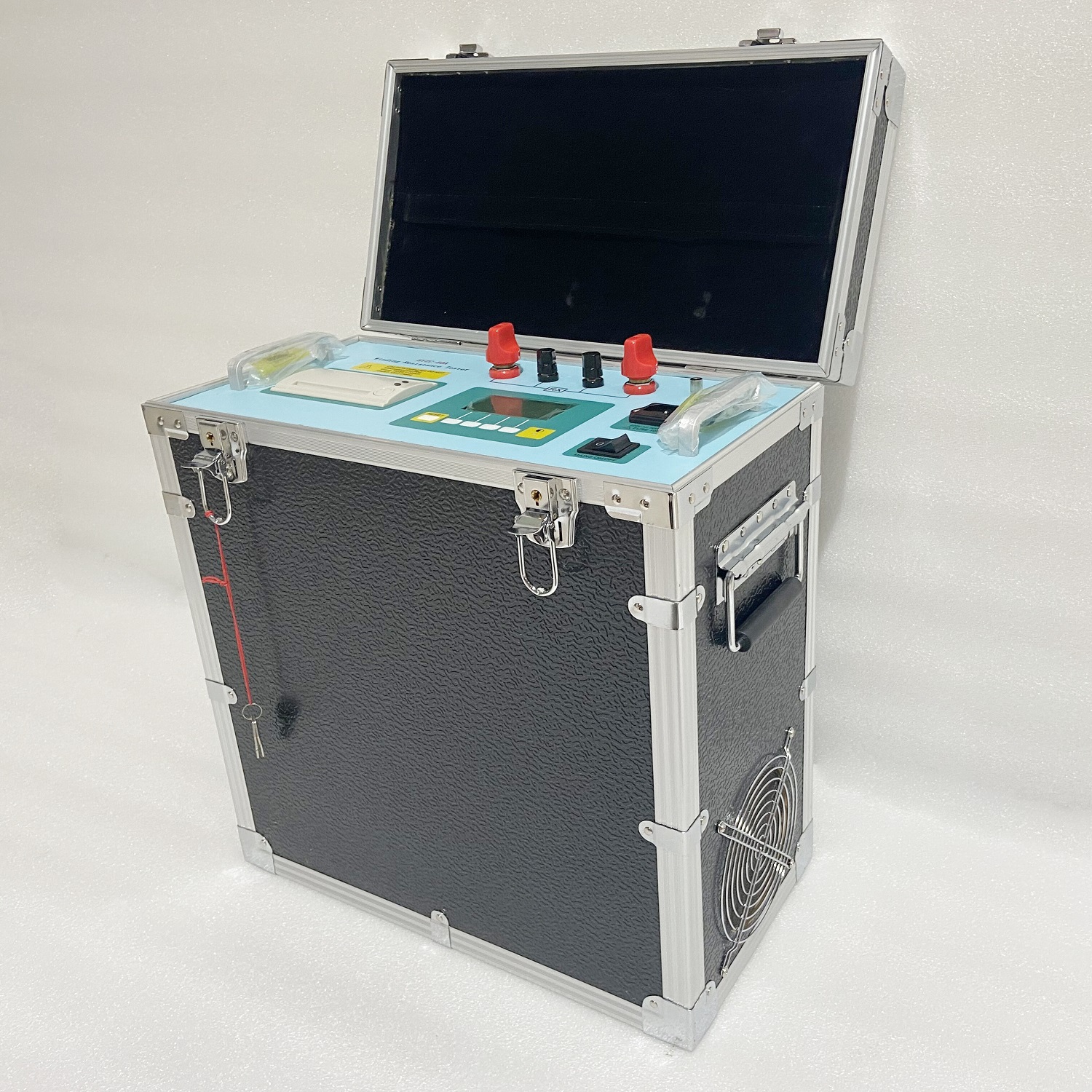

Winding Resistance Tester HYZC-50A
The winding resistance tester HYZC-50A is designed with new power supply technology and stable performance. It is an ideal piece of equipment for measuring transformer windings and large power output inductor equipment.
Datasheet
Video
Contact Us1. This instrument overcomes the shortcomings of traditional bridge method and voltage drop method which require a lot of time and energy when measuring transformer winding or high power output inductor equipment.
2. It shortens the measuring time and reduces the workload of the tester.
3. It is designed with new power supply technology and stable performance, fast measurement, compact, easy to use, high accuracy, good data reproducibility.
Items | Technical indicators and parameters | Notes | |
Testing current | 2.5A 5A 10A 20A 50A | ||
Testing range | 2.5A： 5A： 10A： 20A： 50A： | 10mΩ~8Ω 1mΩ~4Ω 1mΩ~2Ω 1mΩ~1Ω 1mΩ~400mΩ | |
Testing precision | ±0.2%（full-scale）±2 digital | ||
Data storage | 255 data | ||
Display | LCD Monitor | Resistance is displayed by 41/2 bit | |
Highest resolution ratio | 0.1μΩ | ||
Power supply | AC 230V±23V,50Hz±2Hz | Fuse 10A | |
Maximum power | 1200W | When the test current of 50A | |
Working | Temperature:0°～40℃ | ||
Volume | 220X440X480(mm) | ||
Weight | 16kg | With accessories | |

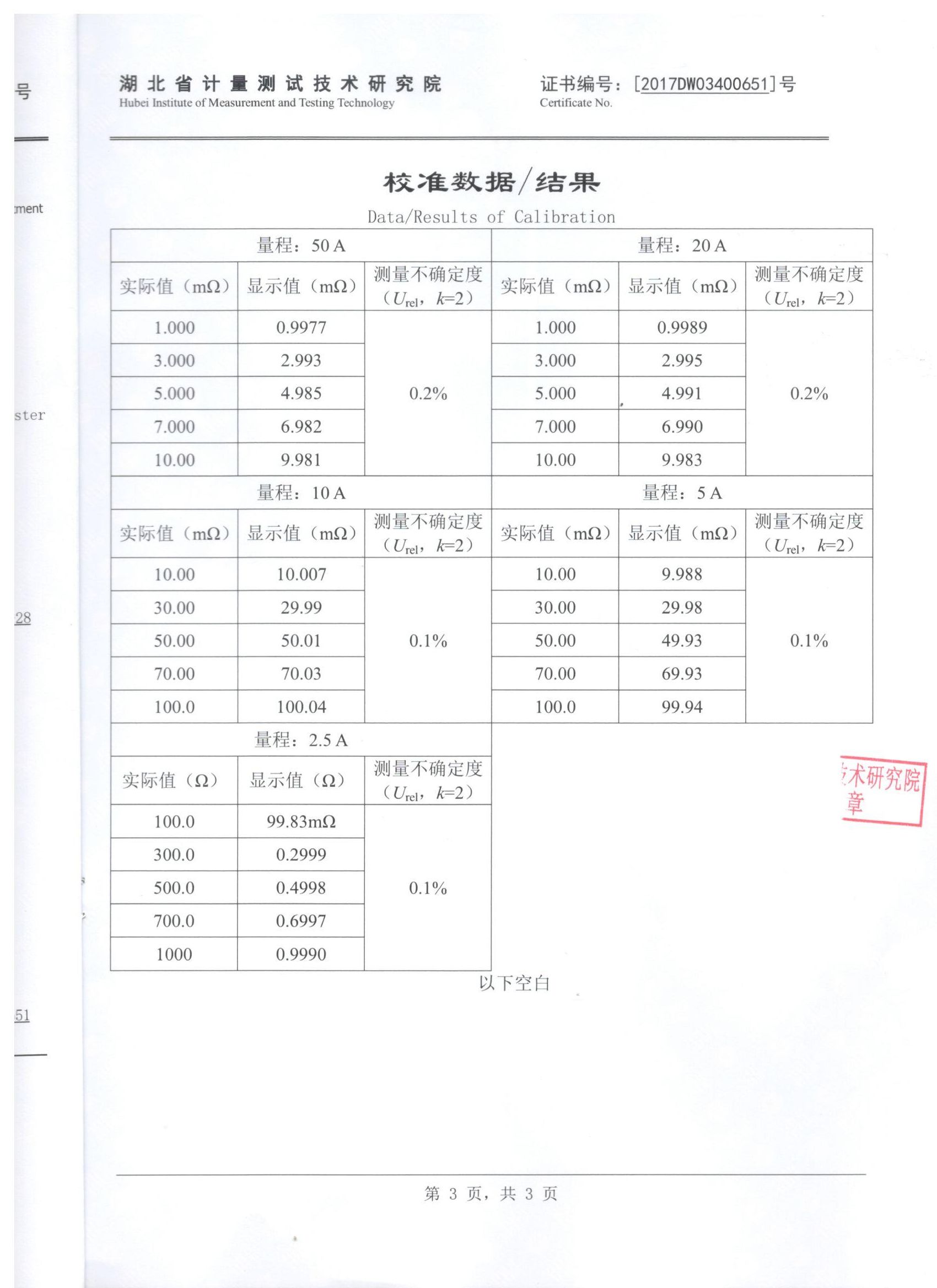

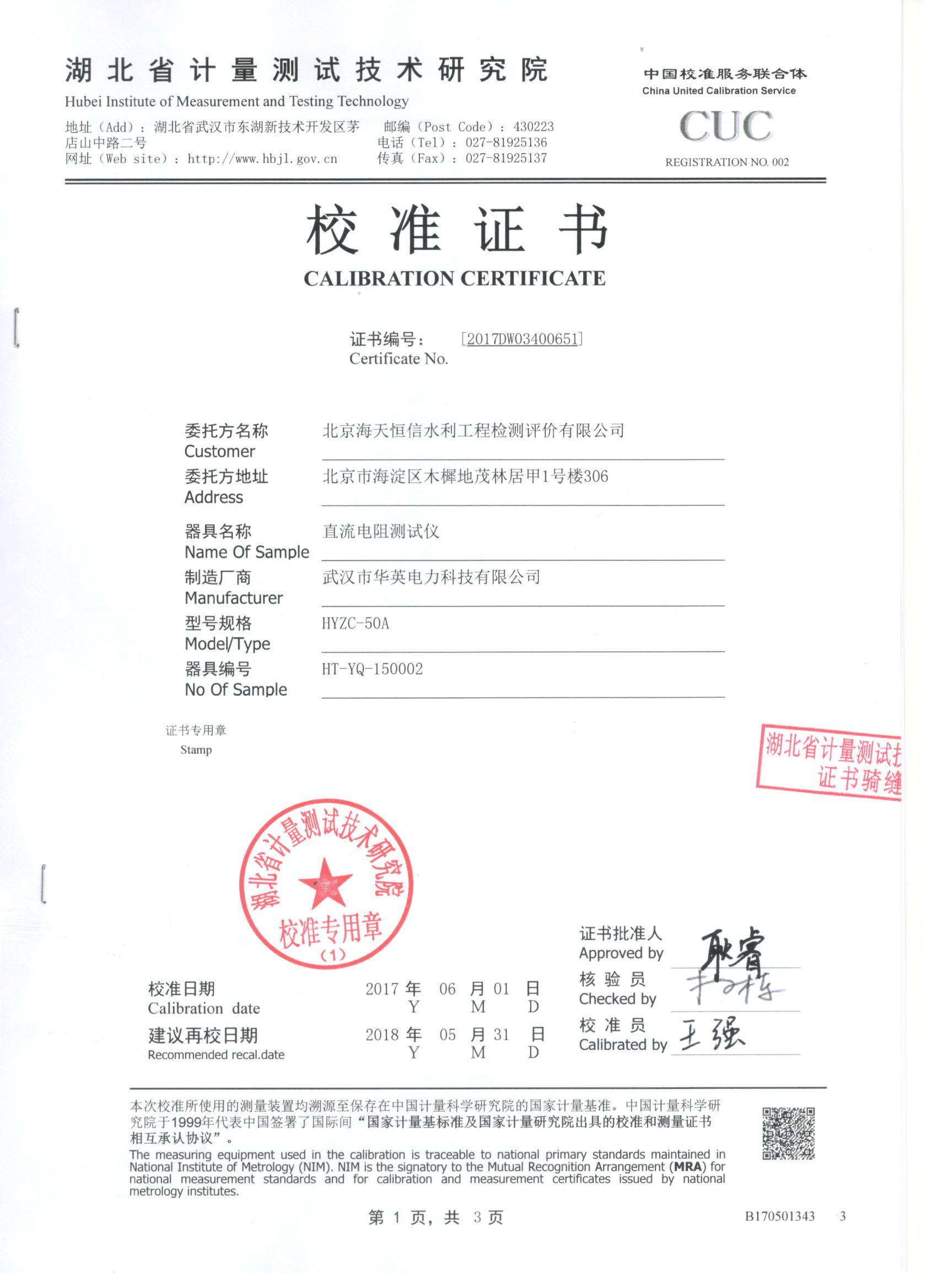

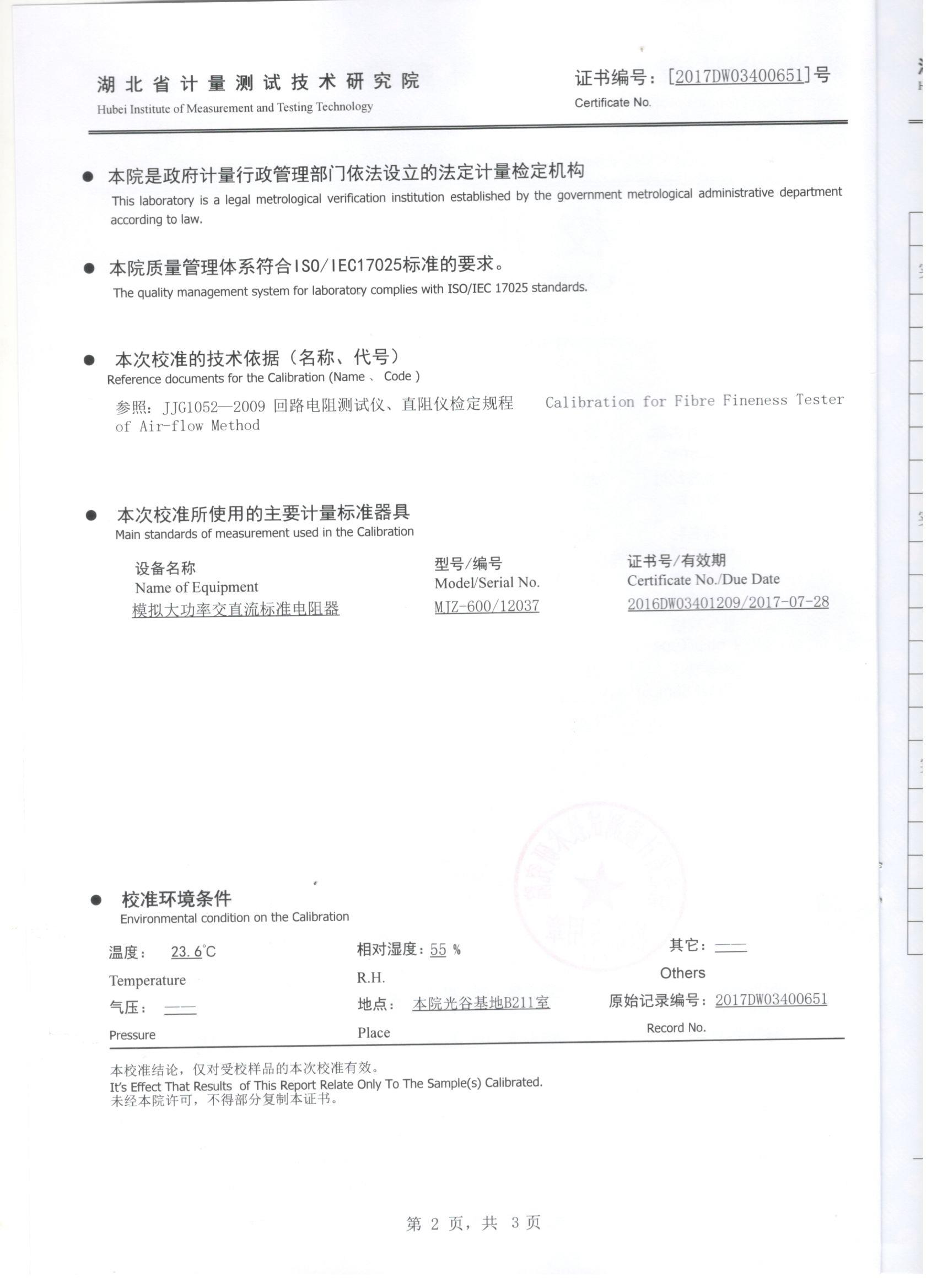

Calibration certificate of Winding Resistance Tester HYZC-50A issued by Hubei Institute of Measurement and Testing Technology
-
