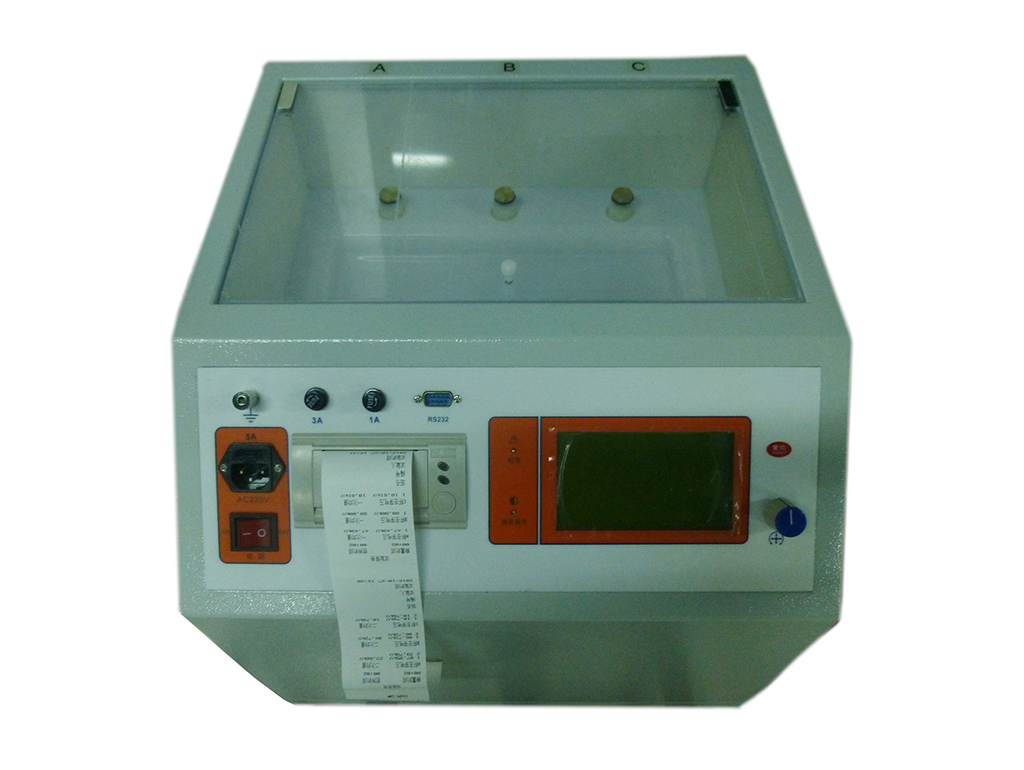

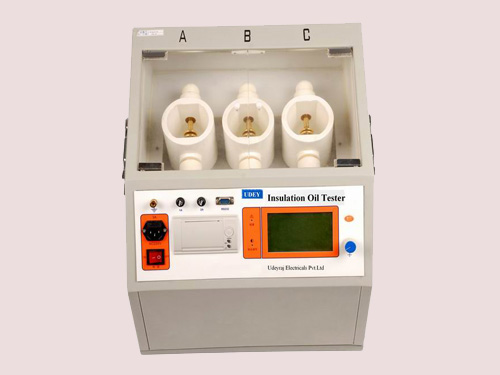

Insulating Oil Tester HYYJ-503
HYYJ-503 is developed according to the national standard GB-86 Insulating Oil Dielectric Strength Testing Method .The tester can test three cups of oil at the same time. LCD screen can display test procedure and test result. It is very easy for customers to measure the breakdown voltage of all kinds of oil by HYYJ-503.
Datasheet
Video
Contact UsFeatures
1. Three oil cups are tested at the same time, saving a lot of test time.
2, high stability and long service life.
3, All the human interaction operations complete by the rotating mouse .You can print the test result by the micro printer internal the tester.
4, PC application software is provided to upload test data to make WORD test report.
Technical Specification
| Input voltage | AC 220V±10% |
| Output voltage | AC 0~80KV |
| Make a choice and combination at random between A,B and C cup | |
| Rate of voltage rise | 2KV/s±10% |
| Measuring precision | 3 class |
| Times | 1-6 |
| Mixing time | 0~99 second |
| Placing time | 0-9 minute 59second |
| Save 50 groups of data | |
| Voltage limit setting for proof test | 20KV----70KV |
| Hold time for proof test | 0 minute -----10 minutes |
| Environment temperature | 5-40℃ |
| Relative humidity | ≤80%RH |
| Size | 420×380×410mm3 |
| Weight | 28kg |
