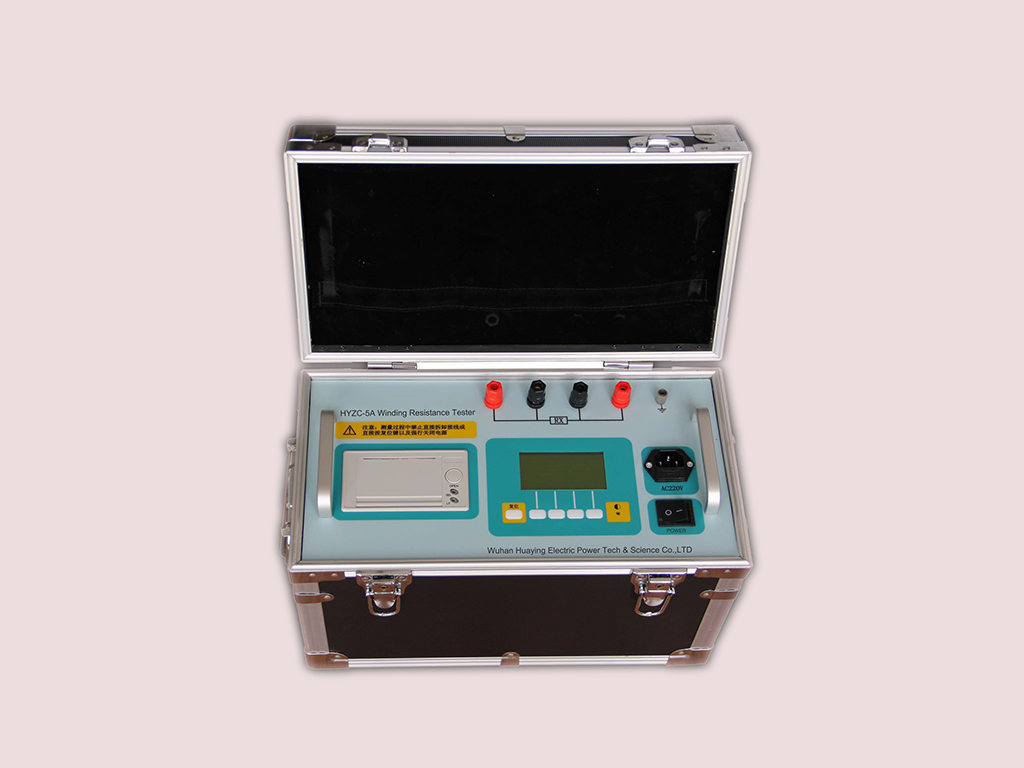

Winding Resistance Tester HYZC-5A

The HYZC-5A winding resistance tester ( Micro ohm meter) is a high accuracy replacement of the dc single, double armed bridge. The instrument adopts the advanced switch power supply technique, displaying measurement result by 240×128 LCD. It overcomes the weakness of inconvenient reading of the LED in the sunlight of the similar products, having the function of automatic arc-suppressing at the same time.

Features
Technical Specification

1) Application condition:

    Ambient temperature: 0 ℃~ 40 ℃

    Relative humidity: ≤ 85% RH

2) Ranges: 1mΩ~20mΩ, 20 ~ 200m Ω, 0.2 ~ 2 Ω, 20 ~ 200 Ω, 200 Ω~ 2kΩ

3) Accuracy: 0.2 level

4) Resolution: 1 μΩ

5) Constant output: 5 A(1μΩ~ 2 Ω ), 0.5 A(2 Ω~ 200 Ω ), 0.005 A(20 Ω~ 2000 Ω )

6) Working voltage: AC 220 V.

7) Power consumption: ≤85W

8) Size: 350mm(L)× 2600mm(W)× 140mm(D)

9) Weight: 3kg
