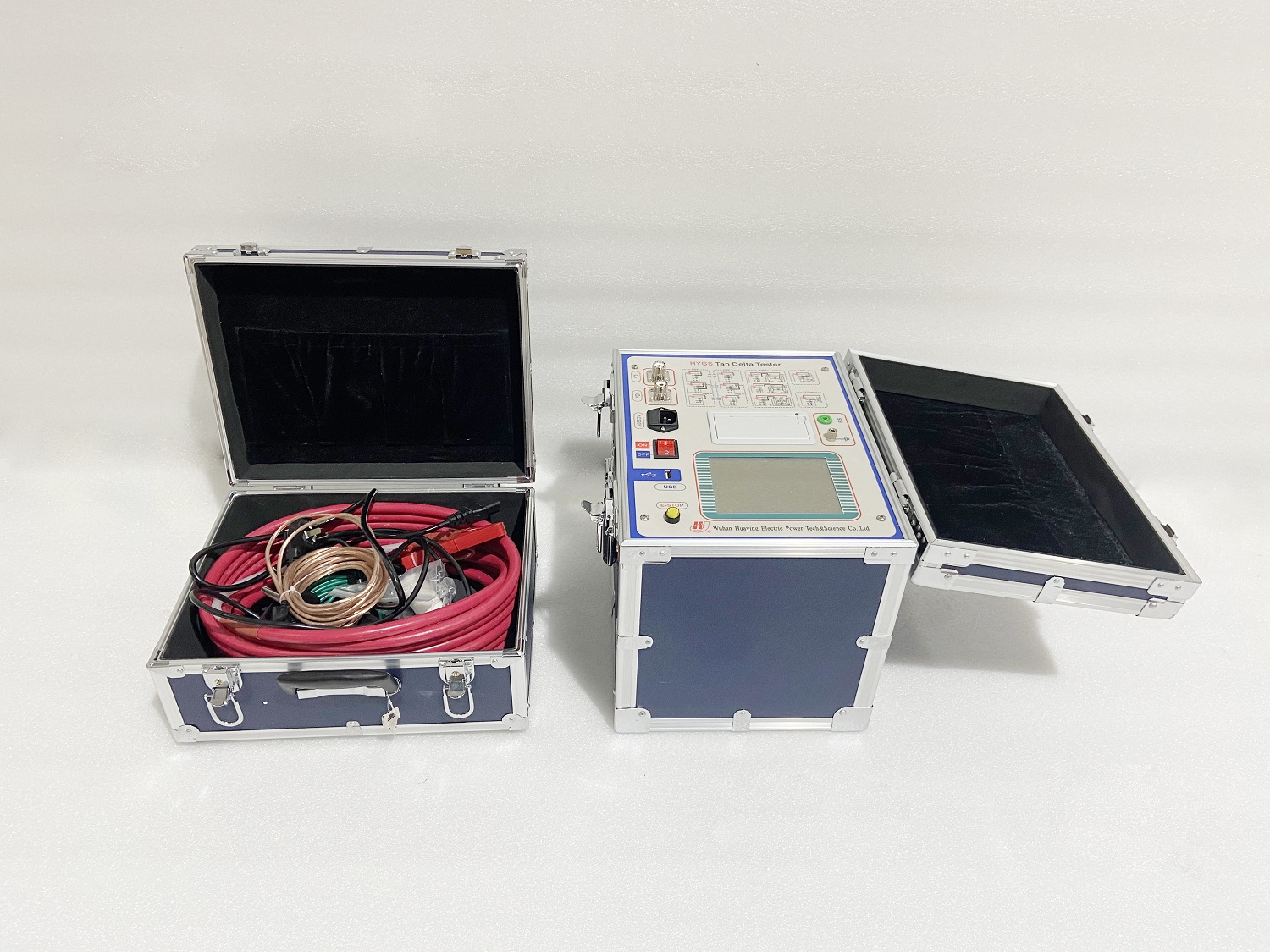

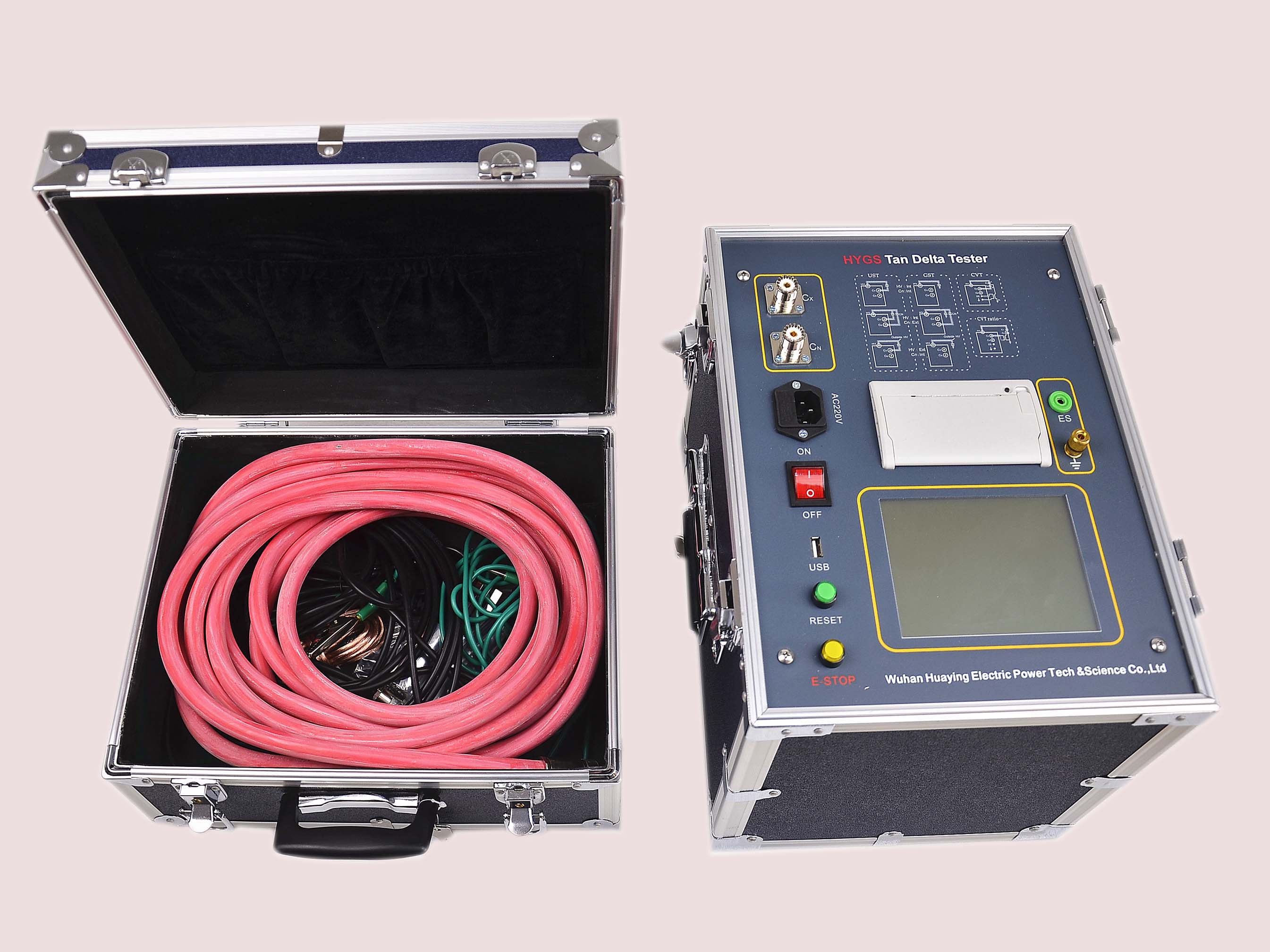

Tangent Delta Tester HYGS

HYGS tangent delta tester is a high-precision instrument, which can be applied to automatically measure electrical loss tangent ( ) and capacitance of all kinds of high voltage electrical equipments on the spot of power plants, substations,laboratory, etc. The instrument is an integrated structure with a dielectric loss test bridge, a variable frequency power supply, a step-up transformer and a SF6 high stability standard capacitor.


Features
Technical Specification

1

Use conditions

-15℃∽40℃

RH<80%

2

Anti-interference

Frequency conversion

3

Power

AC 220V±10%

Allowable generator

4

High output

0.5KV∽10KV(rated voltage:10KV)

Every 0.1kV

0.5KV∽12KV(rated voltage:12KV)

Precision

2%

Maximum current

200mA (rated voltage:10KV)

167mA (rated voltage:12KV)

Capacity

2000VA

5

Self-excited power

AC 0V∽50V/15A

45HZ/55HZ   47.5HZ/52.5HZ
55HZ/65HZ   57.5HZ/62.5HZ
Automatic double frequency

6

Resolving power

tgδ: 0.001%

Cx: 0.001pF

7

Precision

△tgδ:±(Reading*1.0%+0.040%)

△C x :±(Reading*1.0%+1.00PF)

8

measuring range

tgδ

Unlimited

C x

15pF < Cx < 300nF

rated voltage:10KV

10KV

Cx   < 60  nF

5KV

Cx < 150 nF

1KV

Cx < 300 nF

rated voltage:12KV

12KV

Cx < 30  nF

5KV

Cx < 150 nF

1KV

Cx < 300 nF

CVT test

Cx < 300 nF

9

CVT range

10∽10000

accuracy

0.1%

Resolving power

0.01

10

Exterior dimension

350(L)×270(W)×270(H)

11

Memory size

The 200 groups supports U disk data storage

12

Weight

28 Kg


Product Certificates

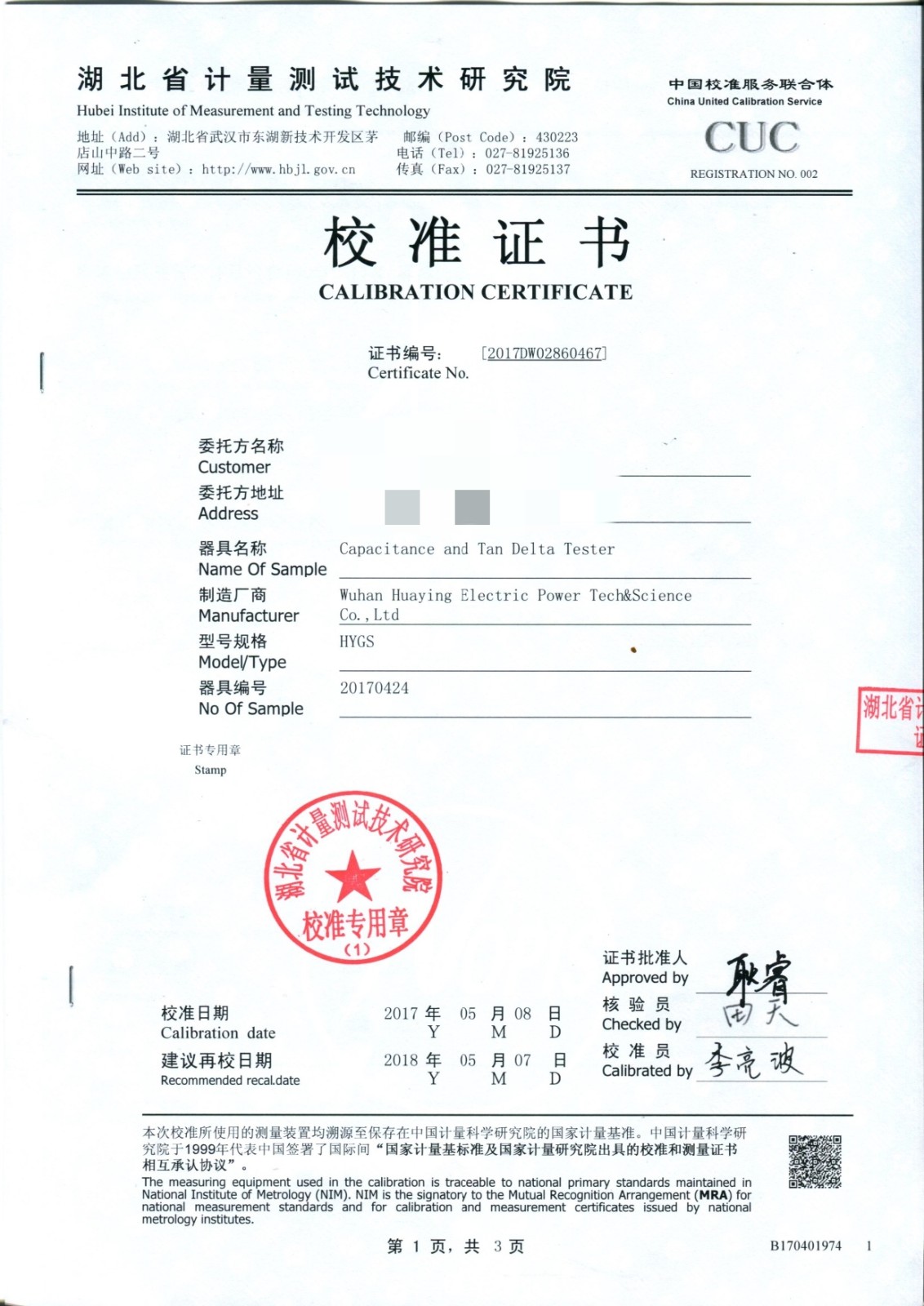

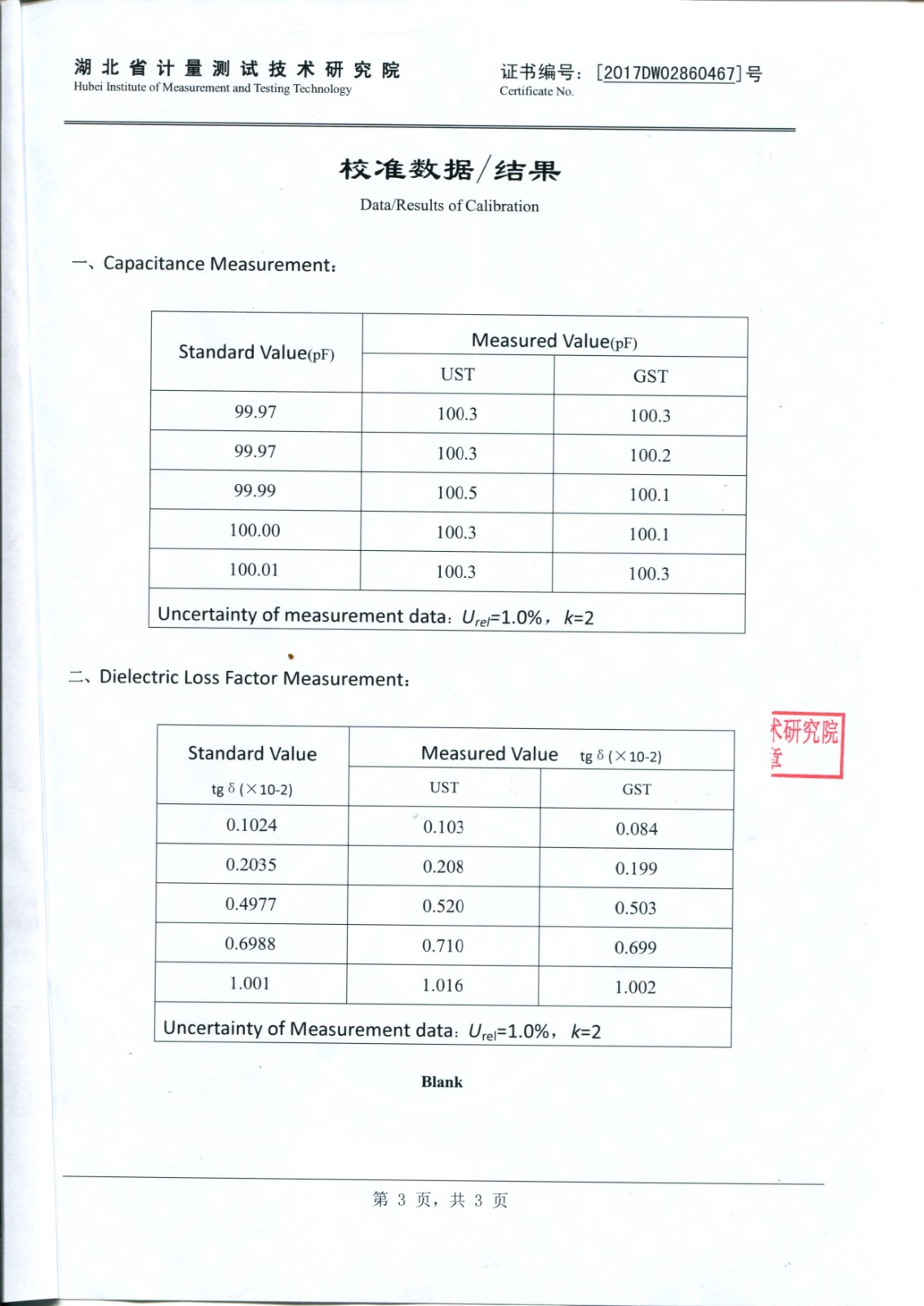

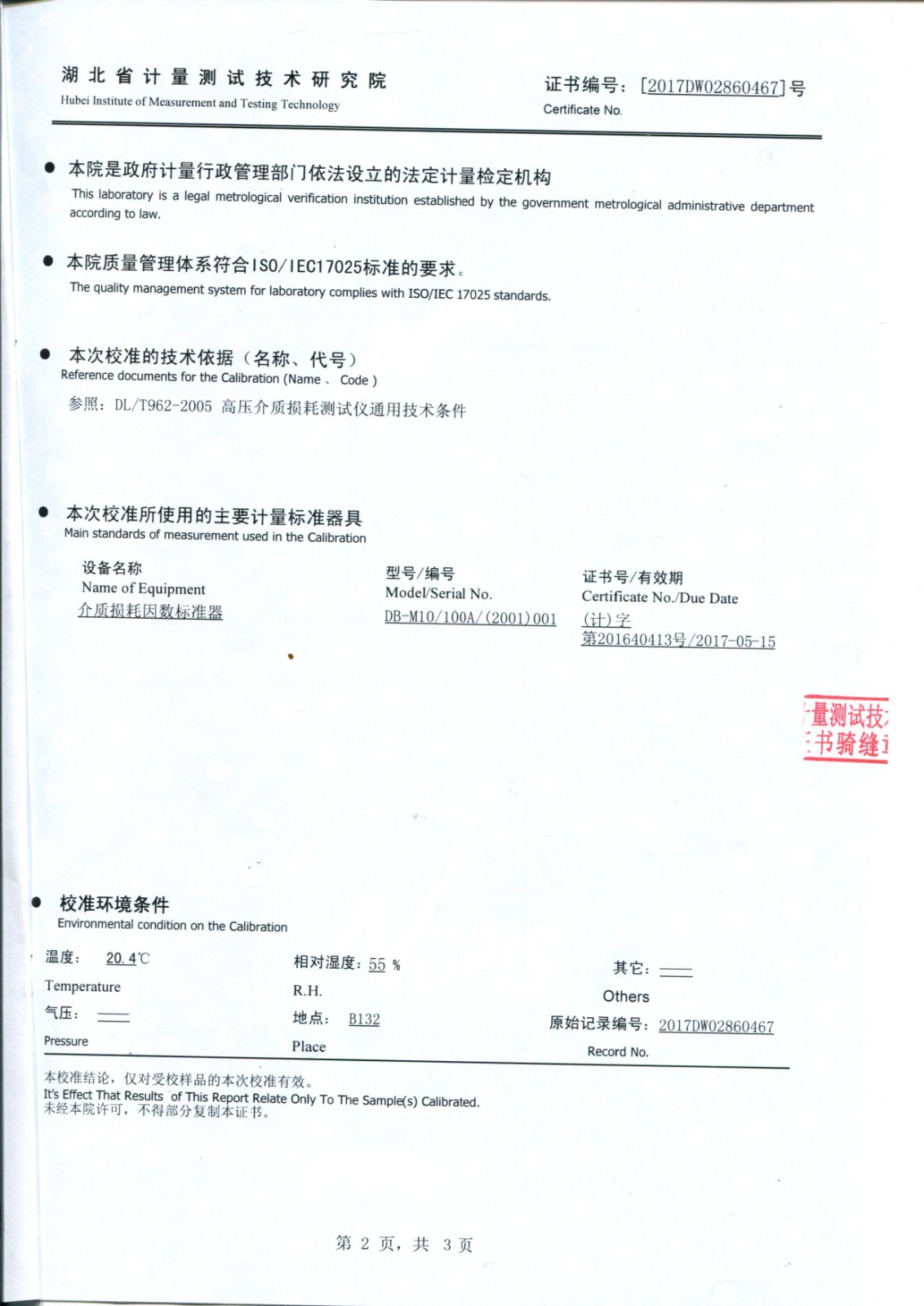

Calibration certificate of Tangent Delta Tester HYGS issued by Hubei Institute of Measurement and Testing Technology
