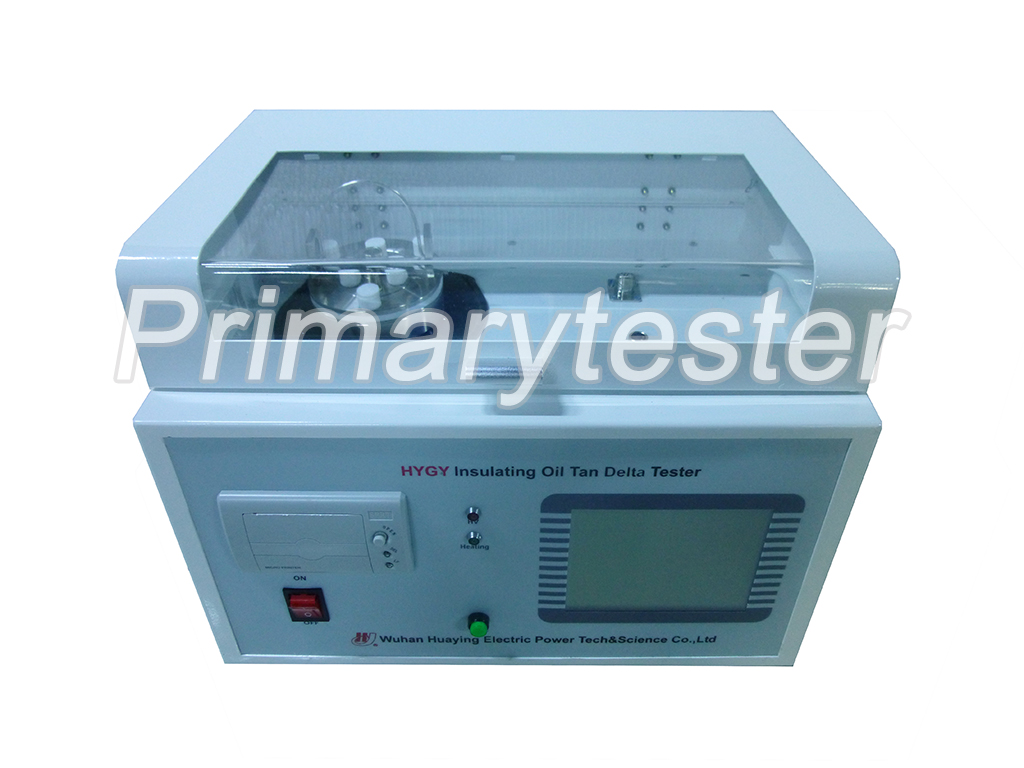

Insulating Oil Tan Delta Tester HYGY

HYGY Digital Automatic Dielectric Dissipation Factor Tester is a high-precision instrument, which can be applied to measure dielectric loss angle and Volume Resistivity of insulating oil etc. It is integrated by oil cup for dielectric loss, temperature-control equipment, temperature sensor, test-bridge for dielectric loss, AC trial electrical source, standard capacitor, high resistance meter and DC high-voltage power etc.

Features
Technical Specification


1

Condition of Use

-5℃∽40℃         RH<80%

2

Power Source

AC 220V±10%     Without Frequency Limit

3

AC High Voltage Output

400V∽2200V     ±2%       Every 100V   50VA

4

DC High Voltage Output

200V∽600V       ±2%

5

Temperature Control Induction Stove

Maximal Power    500W

6

Temperature Control Range

<100℃

7

Temperature Control Error

±0.5 ℃

8

Temperature Measurement Resolution

0.1℃

9

Temperature Control Time

Room Temperature 90℃          <20min

10

Measuring Range

tgδ                Without Limit

Cx                 15PF-300PF

Rx                 10M-20T

11

Resolution

tgδ                0.001%

Cx                 0.01pF

Rx                 0.01

12

Precision

△    tgδ:

△     Cx :

△     Rx :

±(Reading*0.5%+0.020%)

±(Reading*0.5%+0.5PF)

±Reading *   10%

13

Relative Dielectric Loss Constant

εr

Calculated Automatically

14

Volume Resistivity

ρ

Calculated Automatically

15

Dimension

450(L)×310   (W)×360 (H)

16

Weight

21Kg




Product Certificates

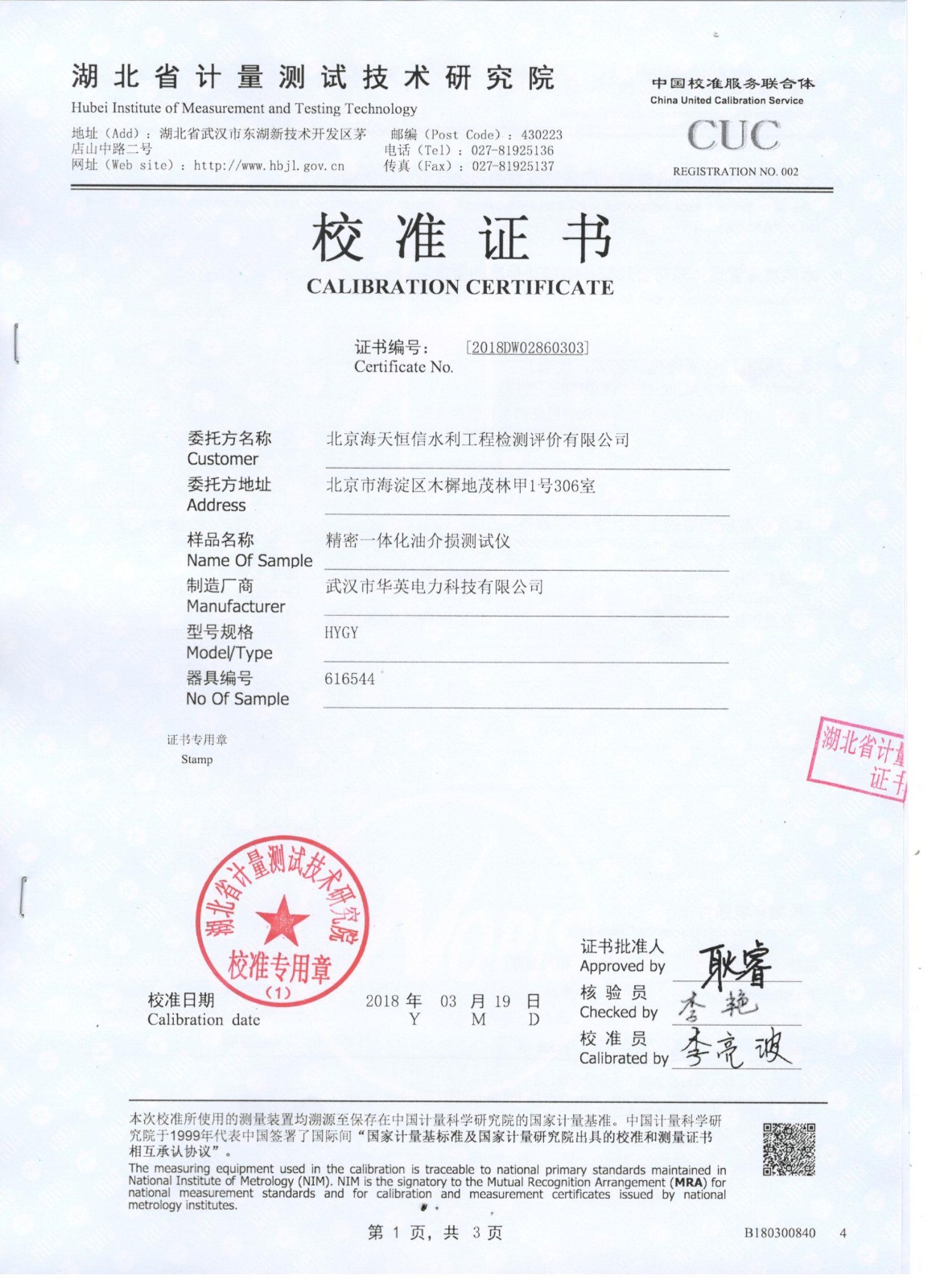

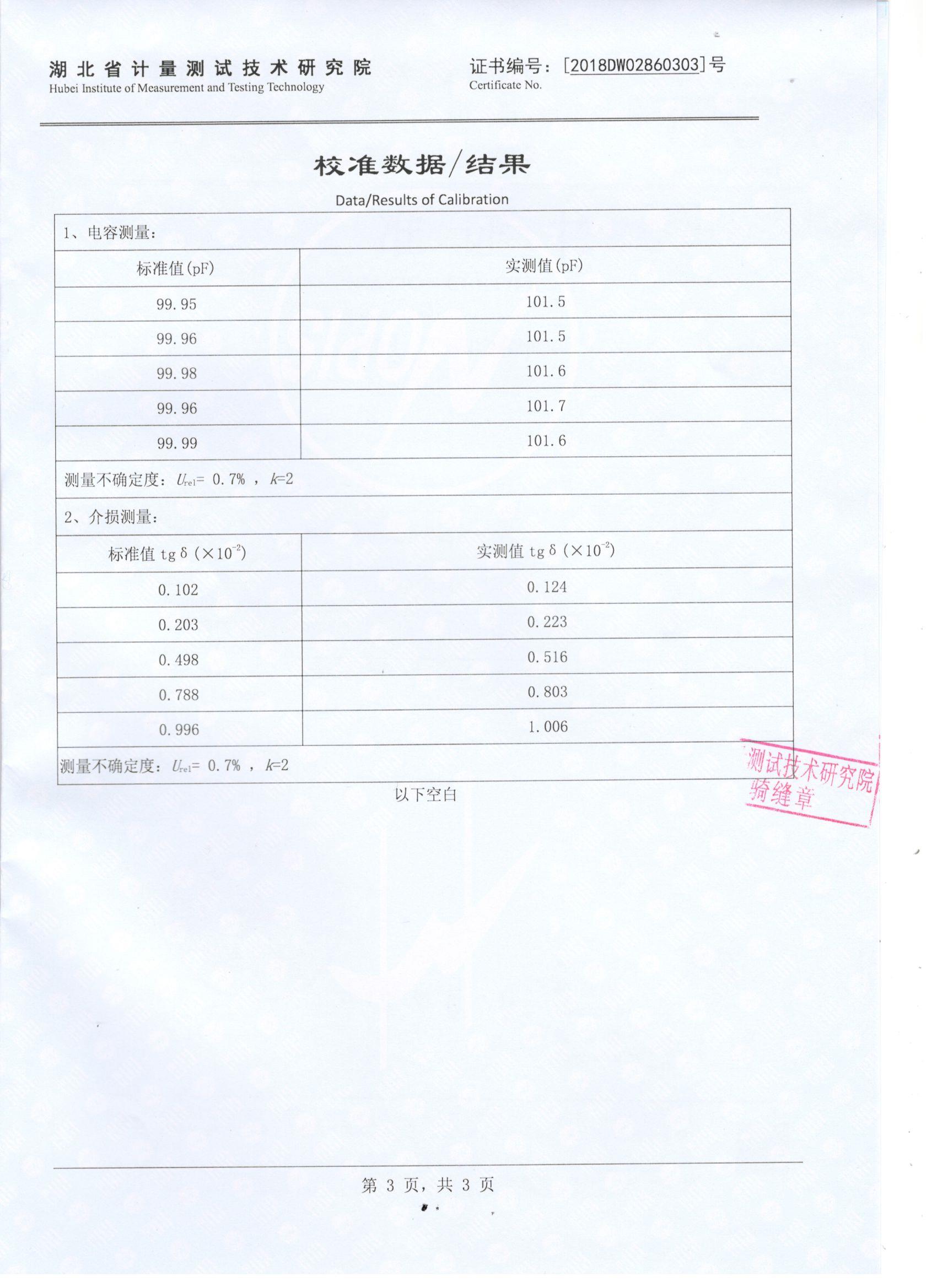

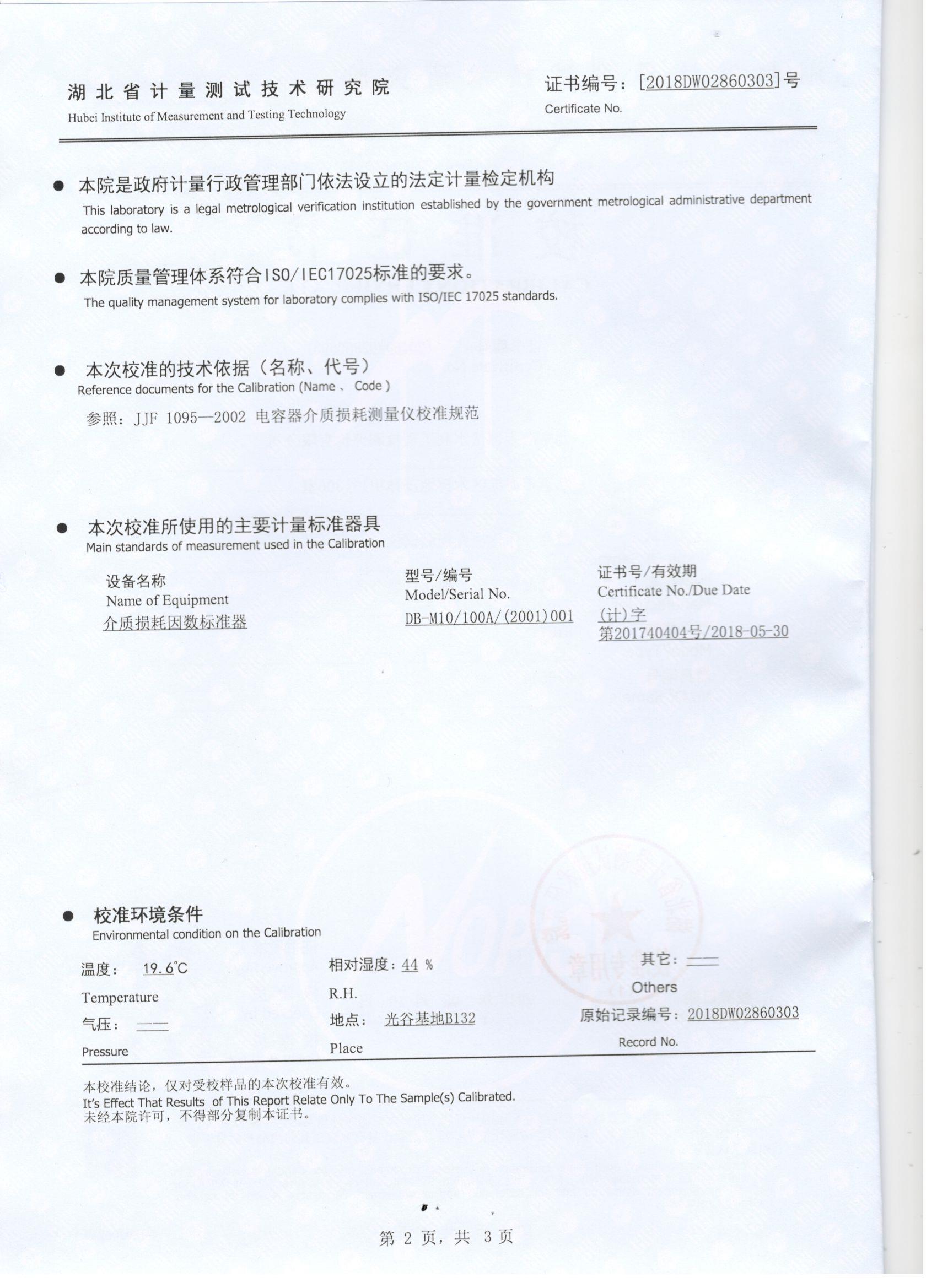

Calibration certificate of Insulating Oil Tan Delta Tester HYGY issued by Hubei Institute of Measurement and Testing Technology
