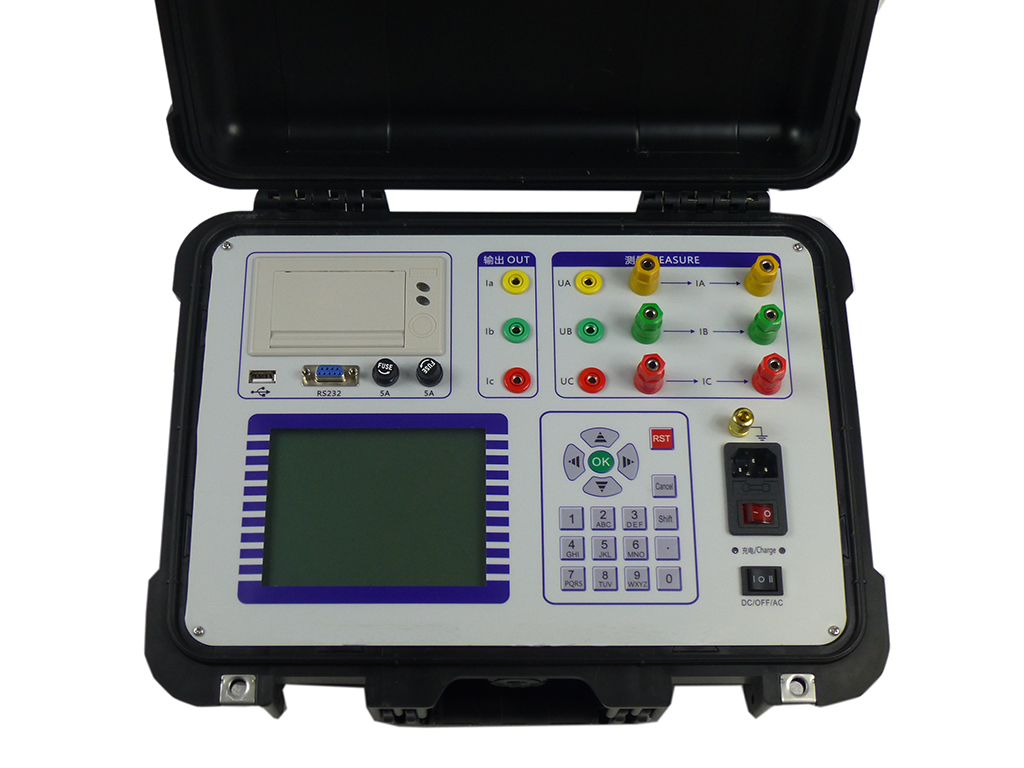

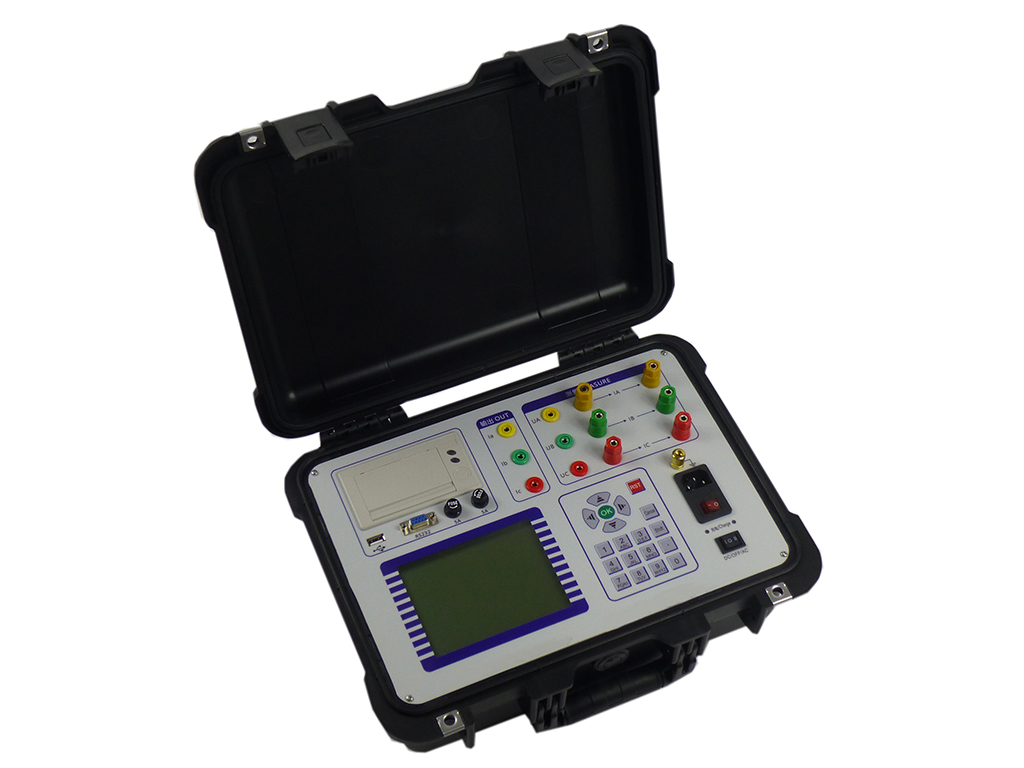

Transformer Load and Capacity Tester HYKFR

Transformer Load and Capacity Tester HYKFR can be used to measure the transformer load current, load loss, short-circuit voltage, short circuit (load) losses, capability. The tester is mainly used in the test bed with integrated for supporting the use of transformers to achieve high-precision testing of transformer no-load load characteristics.


Features
Technical Specification
Capacity measuring range30kVA ~ 31500kVA
Current measurement range0-100A, auto-switch the measurement range
Current measurement accuracy± (0.2% + 3digits)
Voltage measurement rangeLine Voltage0-750V
phase voltage 0-450V, auto-switch the measurement range
Voltage measurement accuracy± (0.2% + 3digits)
Capacity accuracy< ±0.5%(CosΦ>0.1),±1.0%(0.02<CosΦ<0.1)
Insulation resistance > 100MΩ
Leakage current<3.5mA
Dielectric strength: the power connection on the chassis can withstand1500V
External transformer can broaden the scope of measurement instruments
Frequency Range40 ~ 65Hz, accuracy class 0.2
Power InputAC220V ± 10%
