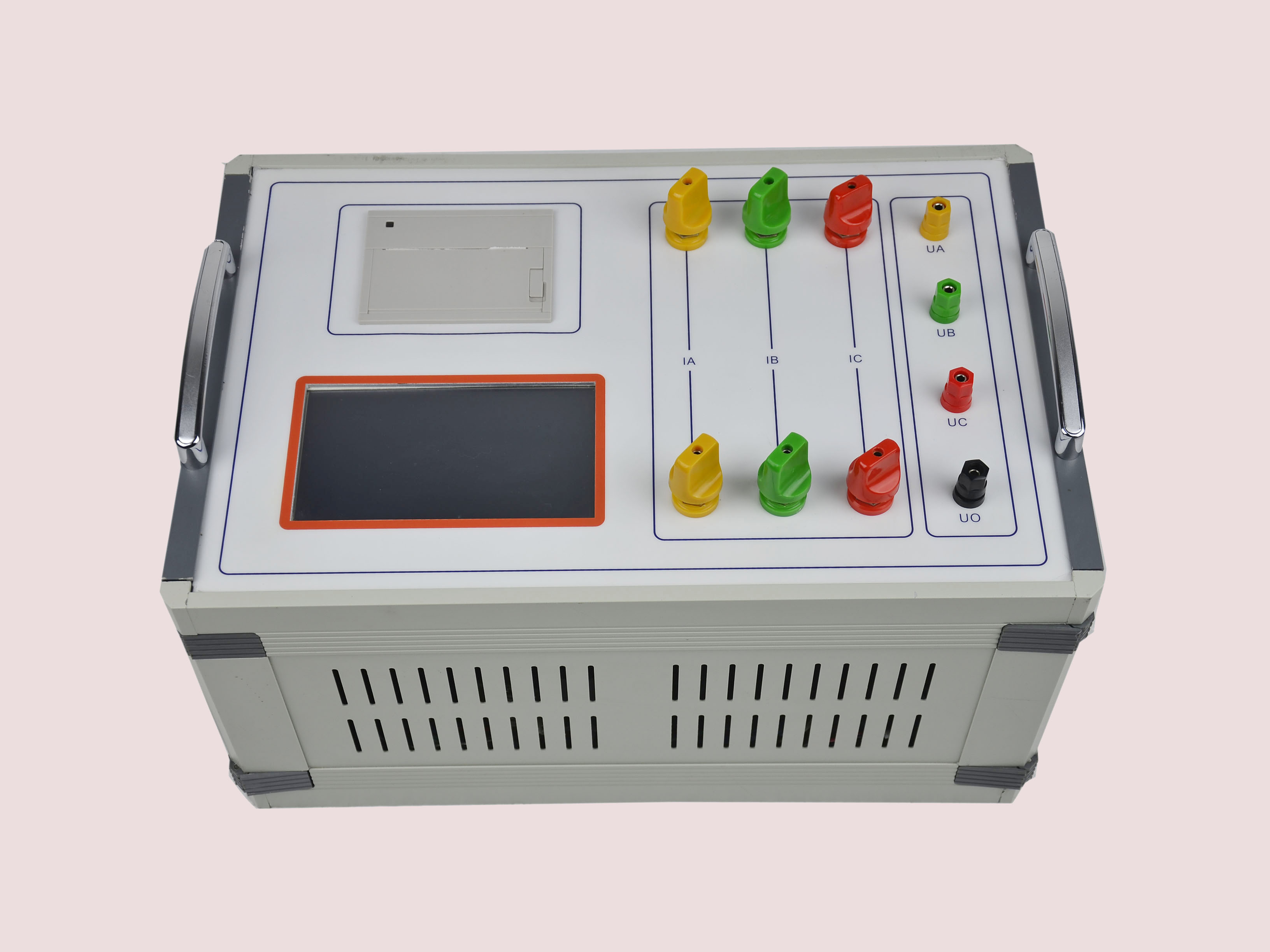

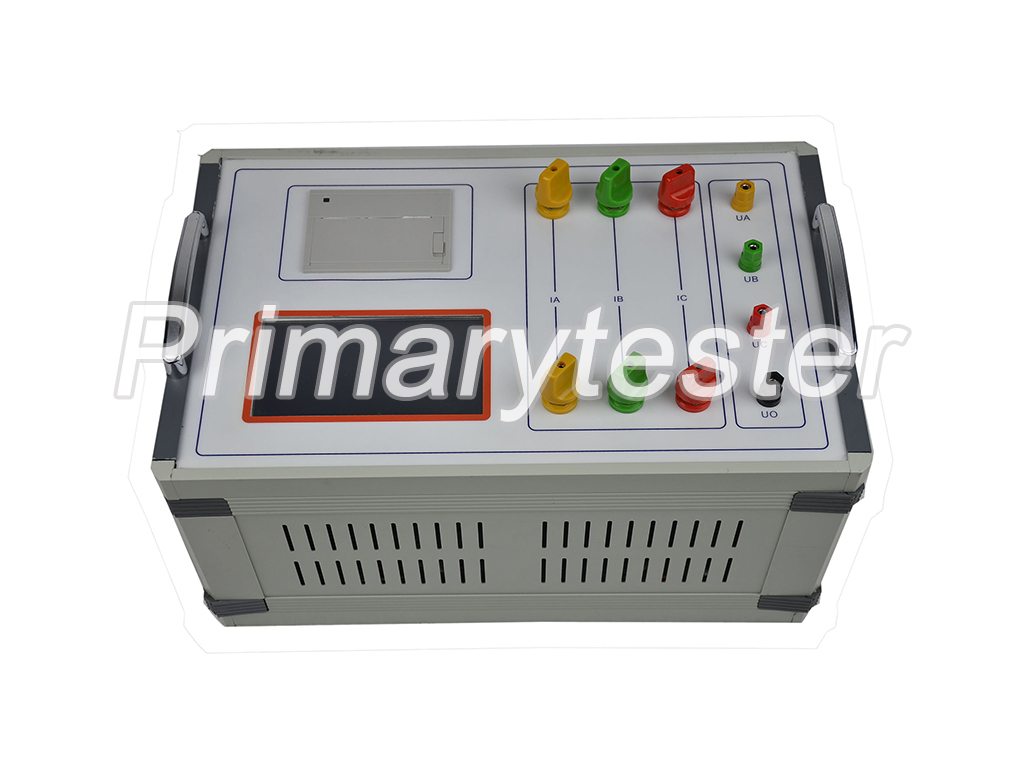

Frequency Response Analyzer HYRZ-903

Our company has designed the frequency response analyzer HYRZ-903, which can use two methods to detect the deformation of the transformer at the same time. One is the sweep frequency response analysis method, the other is low-voltage short-circuit impedance method. Using two methods can effectively reduce incorrect judgments. The tester, follow the national power industry standards DL / T911-2004 and DLT 1093-2008, and can be used for IEC60076-18-2012 and IEC60076-5-2006.

Features
Technical Specification

Sweep frequency response

1, Two different sweep modes Linear sweepSection sweep

      Linear sweep

     10HZ-1MHZ       interval 0.5KHZ     2000 dots

      100HZ-2MHZ       interval 0.5KHZ     2000 dots

     10HZ-1MHZ       interval 0.25KHZ    4000 dotsPC available

      100KHZ-2MHZ       interval 0.25KHZ   4000 dotsPC available

      User define FrequencyintervalScan Dots can be setPC available

      Section sweep

      10HZ-100HZ          interval  1HZ       90 dots

      100HZ-1KHZ          interval  5HZ       180 dots

      1KHZ -10KHZ          interval  50HZ     180 dots

      10KHZ-100KHZ        interval  0.2KHZ    450 dots

      100KHZ –300KHZ      interval  0.5KHZ    400 dots

      300KHZ – 1000KHZ     interval  1KHZ     700 dots

2, Test range(-100dB - +20dB

3, Test accuracy(-80dB - +20dB0.2dB  (-100dB - -80dB1.0dB

4, Frequency accuracy< 0.01%

5, Signal input impedance> 1M Ω

6, Signal output impedance50 Ω

7, Repeat test99.5%

Short-circuit impedance and Generator rotor AC impedance

     1AC impedance 0999.999Ω 0.2%±2 digits

     2AC voltage 0600V 0.2%±2 digits

     3AC ampere 0120A 0.2%±2 digits

     4Active power cosφ>0.1  0.5%±2 digits

                       cosφ<0.1  1.0%±2 digits

                       Reactive power 0.2%±2 digits

     5Frequency    4565HZ 0.1%
