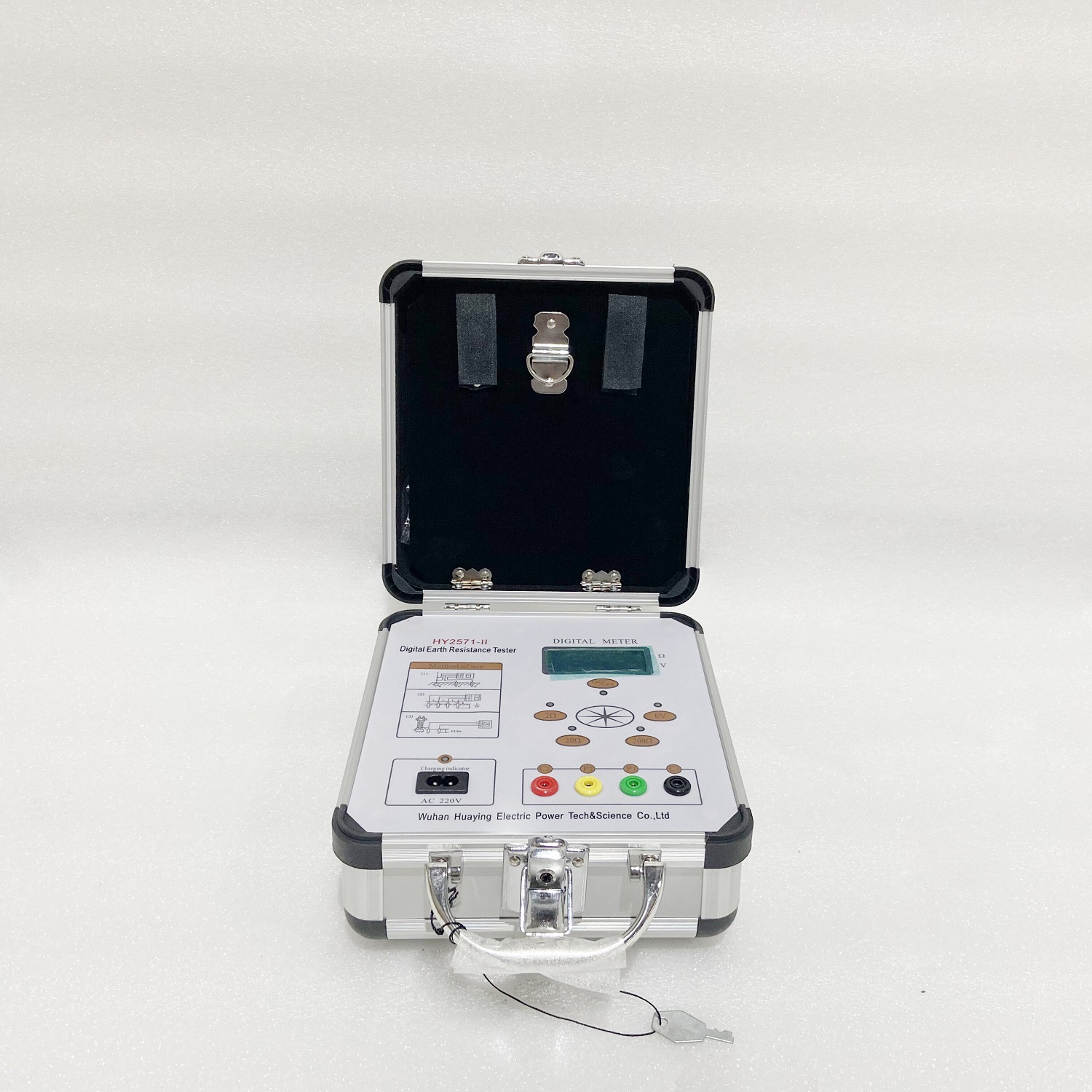

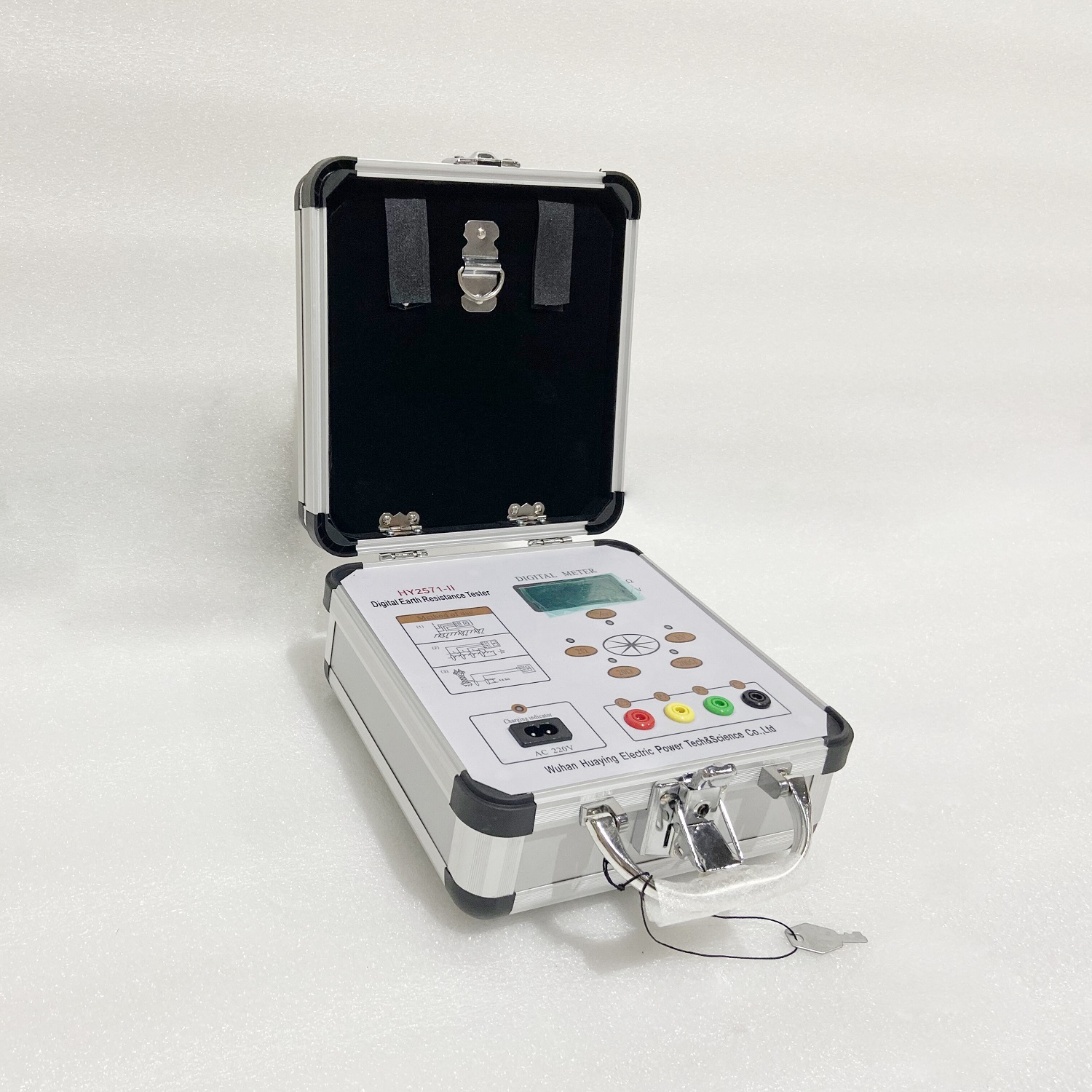

Insulation Resistance Tester HY2671-II

The instrument is the commonly used and essential instruments for the electricity, post and telecommunications, communications, electrical and mechanical installation and maintenance, and the use of electricity as industrial power or energy industrial enterprises. It is suitable for measuring the insulation resistance of various insulating materials and transformers, motors, cables and electrical equipment.


Features
Technical Specification


1. Use condition
    Ambient temperature: 0 ° C to + 45 ° C
    Relative humidity: ≤85% RH
2. Output voltage level, measurement range, resolution, error

Model

Output voltage level

Measurement range

Relative error

Resolution

2670

100V,250V

500V,1000V

1~1999

≤±5%±1d

0.001MΩ,0.01MΩ

0.1MΩ, 1.0MΩ

2671

500V,1000V

2000V,2500V

1~19990

≤±5%±1d

0.01MΩ,0.1MΩ,

1.0MΩ,10.0MΩ

2672

500V,1000V

2500V,5000V

20~1999

±10%±1d

0.01MΩ,0.1MΩ

1.0MΩ

3. Output the highest voltage carrying capacity and short circuit current

Model

Voltage/   Load

Voltage   sag

Short-circuit   current

2670

1000V/2MΩ

Approx. 10%

>2.0mA

2671

2500V/20MΩ

Approx.10%

>1.6mA

2672

5000V/20MΩ

Approx.10%

≥3.0mA


4. Power supply range, power loss

    DC: 7 ~ 9V (7 5 # rechargeable battery pack) external AC 220V power supply for charging.
    Power consumption: static power ≤ 160mW; maximum power ≤ 2.5W
5. Size and weight
    Size: 220mm×200mm×105mm
    Weight: <1.4kg
