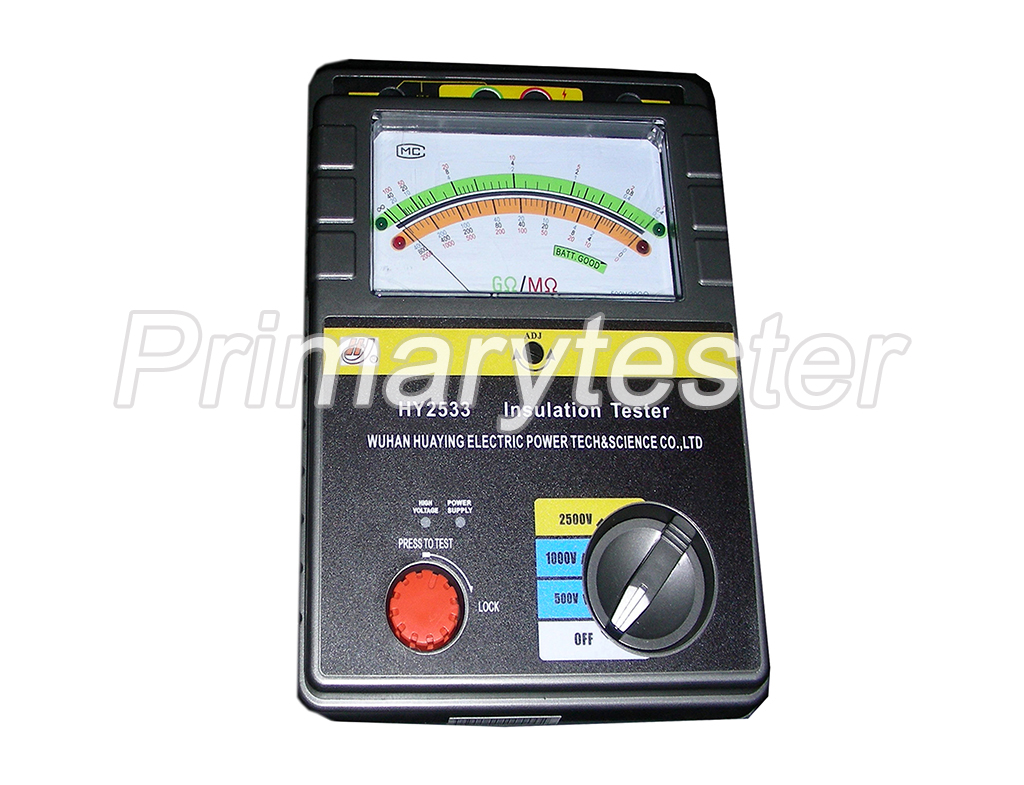

Insulation Resistance Tester HY2533

Our Insulation Resistance Tester HY25 series uses super-thin tensile meter and multi test voltage. It features high capacity, strong anti-interference, applicable both AC and DC (C type), simple and fast test, and easy to carry. It is the ideal tester for insulation resistance like transformer, mutual inductor, electric generator, high voltage motor, power capacitor, power cable, and arrester.

Features
Technical Specification


Model

HY   2533

Output   Voltage

500V DC

1000V DC

2500V DC

Accuracy

Temperature

23℃±5℃

Insulation   Resistance

1MΩ~20GΩ

±5%

2MΩ~40GΩ

±5%

5MΩ~100GΩ

±5%

Output   Voltage

4MΩ~20GΩ

0~+10%

8MΩ~40GΩ

0~+10%

20MΩ~100GΩ

0~+10%

Short Circuit Current

Approximately 1mA

Working Power Supply

8pcs AA alkaline batteries(8pcs   AA rechargeable battery, charging   adapter)

Working Temperature and Humidity

0℃~40℃,maximum relative humidity 80%

Storage Temperature and Humidity

-10℃~60℃,maximum   relative humidity 90%

Insulating Property

Insulation resistance between circuit and   housing≥50MΩ

Withstand   Voltage

Apply 3kv between tester circuit and   housing, 50Hz sine AC voltage,last for one minute,no   breakdown or flashover

Size

230(L)×190(W)×90(H)mm

Weight

2kg

Accessory

A set of   one plug test lead, manual, Certificate of Approval, Charging adapter(C type)


Product Certificates

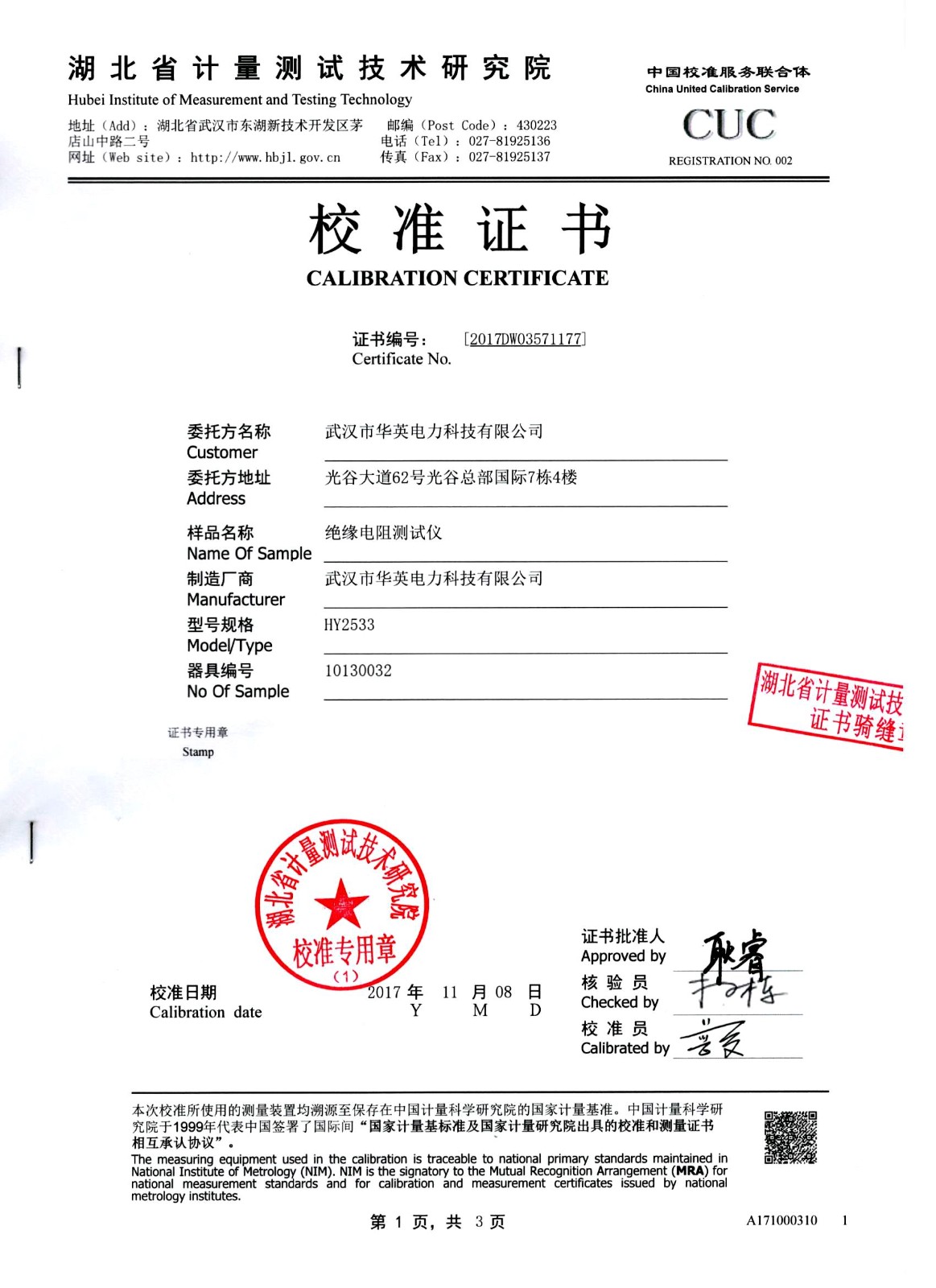

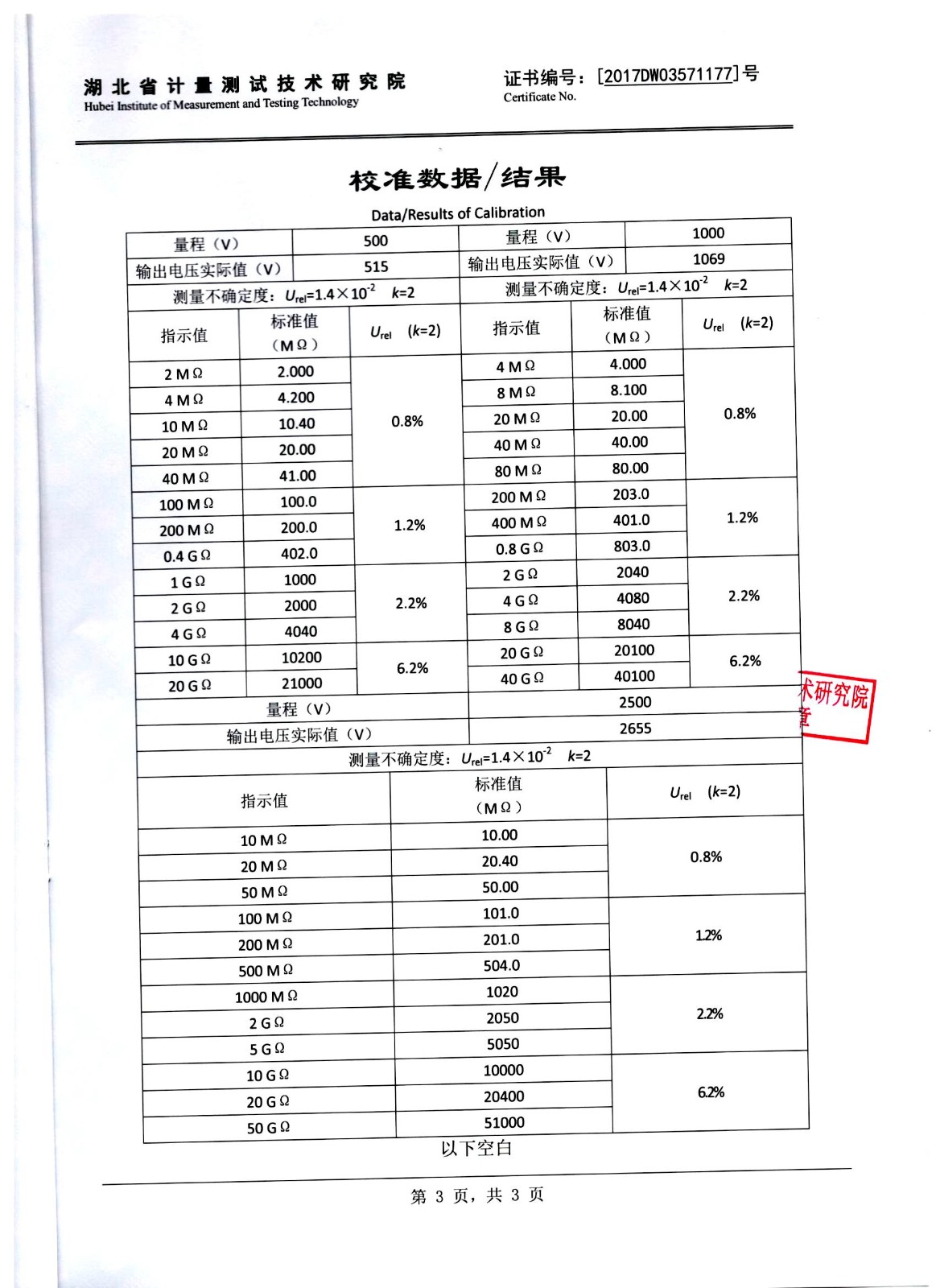

Calibration certificate of Insulation Resistance Tester HY2533 issued by Hubei Institute of Measurement and Testing Technology
