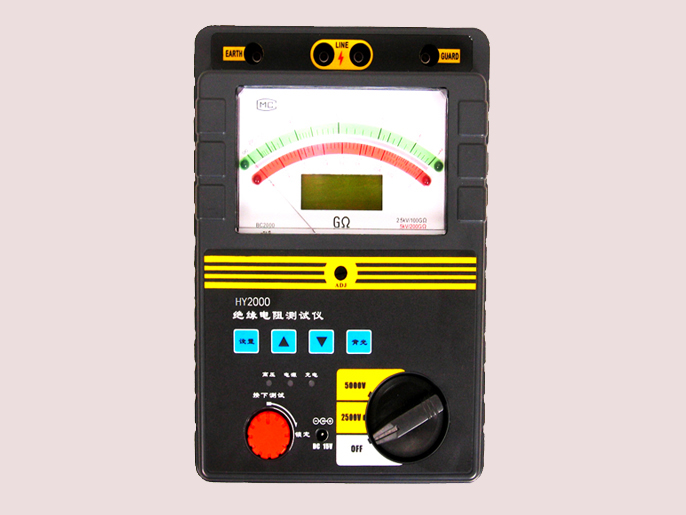

Insulation Resistance Tester HY2000

The instrument is with a variety of voltage output level (2500V,5000V), high capacity, strong anti-interference, the pointer and digital synchronous display, AC-DC dual-use, simple operation, automatic calculation of various insulation index (absorption ratio, polarization index). All measured characteristics have the anti-power-down function . It is the ideal tester for insulation resistance like transformer, mutual inductor, electric generator, high voltage motor, power capacitor, power cable, and arrester.

Features
Technical Specification

(Temperature, humidity: 23±5℃, 45~75%RH)

Model

HY2000

Output Voltage

2500V DC

5000V DC

Accuracy

Temperature

23℃±5℃

Insulation Resistance

0~99GΩ

±5%

0~99GΩ

±5%

≥100 GΩ ±10%

Output Voltage

20MΩ~100GΩ

-5%~+10%

40MΩ~200GΩ

-5%~+10%

Short Circuit   Current

≥3mA

Working Power   Supply

8pcs AA   alkaline batteries(8pcs AA rechargeable battery, charging adapter)

Working Temperature and Humidity

0℃~40℃,maximum   relative humidity 80%

Storage   Temperature and Humidity

-10℃~60℃,maximum   relative humidity 90%

Insulating   Property

Insulation   resistance between circuit and housing≥50MΩ

Withstand Voltage

Apply 3kv   between tester circuit and housing, 50Hz sine AC voltage,last   for one minute,no breakdown or flashover

Size

230mm×190mm×90mm  (L×W×H)

Weight

2kg

Accessory

A set of   one plug test lead, manual, Certificate of Approval, Charging adapter(C   type)
