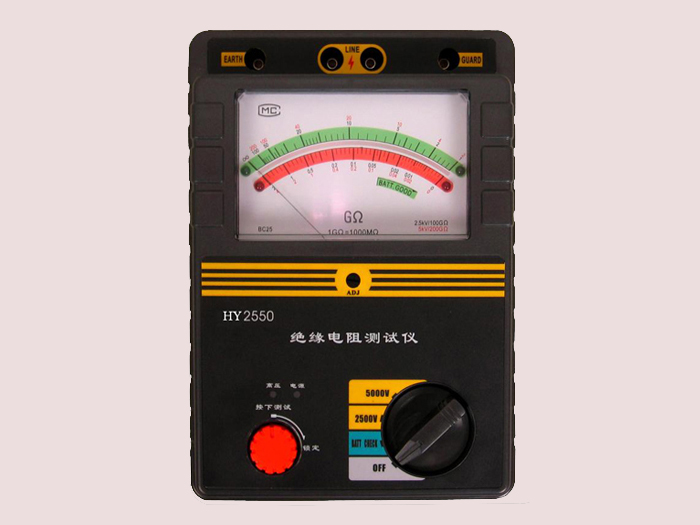

Insulation Resistance Tester HY2550

Our Insulation Resistance Tester HY25 series uses super-thin tensile meter and multi test voltage. It features high capacity, strong anti-interference, applicable both AC and DC (C type), simple and fast test, and easy to carry. It is the ideal tester for insulation resistance like transformer, mutual inductor, electric generator, high voltage motor, power capacitor, power cable, and arrester.

Features
Technical Specification

Model

HY2550

Output   Voltage

2500V DC

5000V DC

Accuracy

Temperature

23±5

Insulation   Resistance

5MΩ100GΩ

±5

10MΩ200GΩ

±5

Output   Voltage

20MΩ100GΩ

0+10

40MΩ200GΩ

0+10

Short Circuit Current

Approximately 1mA

Working Power Supply

8pcs AA alkaline batteries8pcs   AA rechargeable battery, charging   adapter

Working Temperature and Humidity

040maximum relative humidity 80

Storage Temperature and Humidity

-1060maximum relative humidity 90

Insulating Property

Insulation resistance between circuit and   housing≥50MΩ

Withstand   Voltage

Apply 3kv between tester circuit and   housing, 50Hz sine AC voltagelast for one minuteno   breakdown or flashover

Size

230L×190W×90Hmm

Weight

2kg

Accessory

A set of   one plug test lead, manual, Certificate of Approval, Charging adapterC type
