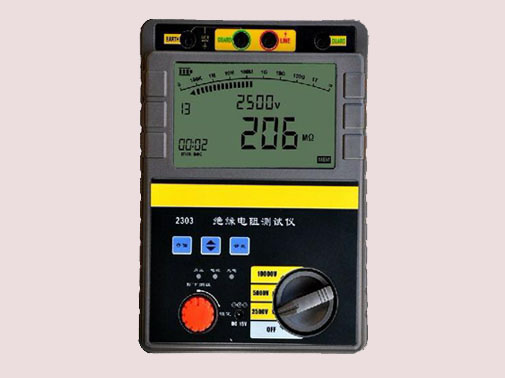

Insulation Resistance Tester HY2303

The instrument is with a variety of voltage output level (2500V,5000V,10000V), high capacity, strong anti-interference, the pointer and digital synchronous display, AC-DC dual-use, simple operation, automatic calculation of various insulation index (absorption ratio, polarization index). All measured characteristics have the anti-power-down function . It is the ideal tester for insulation resistance like transformer, mutual inductor, electric generator, high voltage motor, power capacitor, power cable, and arrester.

Features
Technical Specification



Output voltage

2500V DC

5000V DC

10000V DC

Accuracy

Temperature

23±5

Insulation resistance

5M100G ±5

10M200G ±5

20M400G ±5

Other range is ±10

Voltage

2.5M100G
0+10

5M200G
0+10

10M400G
0+10

Short-circuit current

≥1mA

Power source

Adapter Power or charging battery size AA×8pcs

Operating temperature   & humidity range

-1040Relative humidity 85% or less (no condensation)

Storage temperature   & humidity range

-2060Relative humidity 90% or less (no condensation)

Insulation resistance

2000MΩMaximum/DC 1000V (Between electrical circuit and enclosure)

Insulation performance

Can last for 1 minute when the votlage is AC 3KV/50Hz between electric circuit and shell

Size

230mm×190mm×90mm (L×W×H)

Weight

2.5kg

Accessory

Test ling package, power adapter, power cable, instruction manual, charge battery size AA×8pcs
