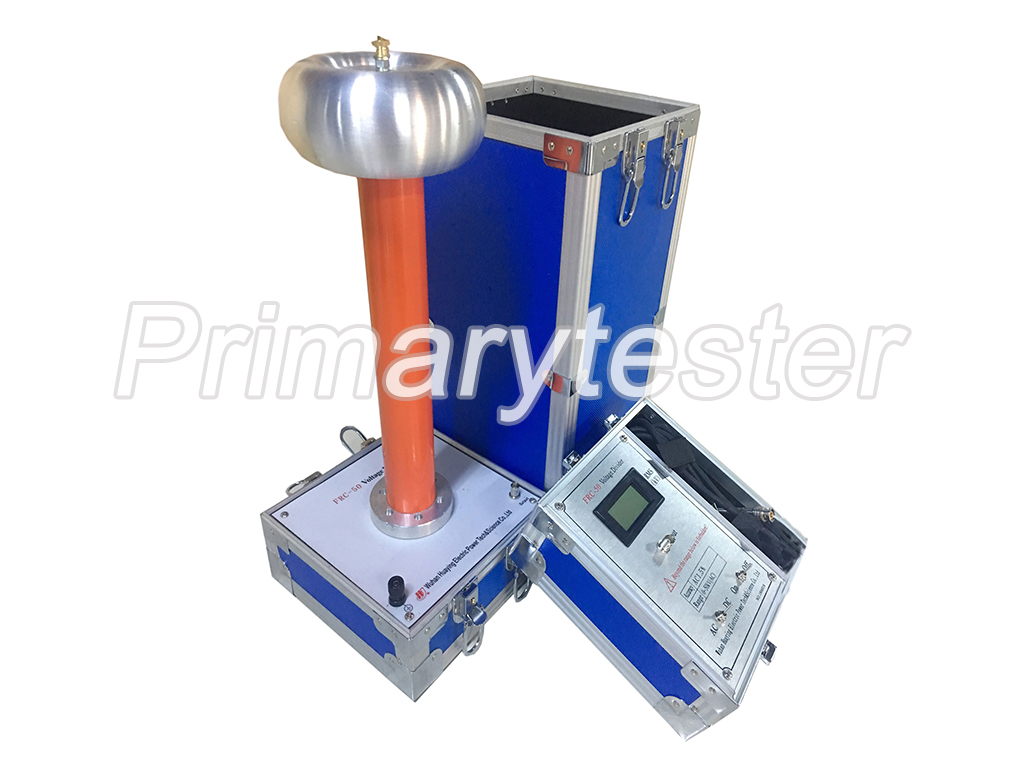

Voltage Divider FRC

FRC series voltage divider (Kilovoltmeter) is a universal high voltage measuring instruments which can be used to test power frequency AC high voltage and DC high voltage for electric power systems, electrical appliance, electronic equipment manufacturing sector. It includes high voltage testing part & low-voltage measuring instruments. The low-voltage & high voltage part can work separately. It is safe and reliable. It is the upgrading products of static high voltage meter, packed with aluminum alloy case for easy carrying.

Features
Technical Specification

Type

FRC-50

FRC-100

FRC-200

FRC-300

Range

(kV)

AC

50

100

200

300

DC

70

140

280

400

Accuracy

AC

1.5%

1.5%

1.5%

1.5%

DC

1.0%

1.0%

1.0%

1.0%

Impedance

R(MΩ)

200

400

800

1200

Capacitance

C(PF)

/

200

100

75

Size(mm)

Divider

Ф76×450

Ф76×700

Ф76×1300

Ф76×1700

Alloy Case

590x270x260

220×220×750

220×220×1400

220×220×1800

Weight(kg)

/

5

10

18

25



The use of environmental conditions allowed:

Temperature:0-40℃

Relative humidity:<85%



Product Certificates

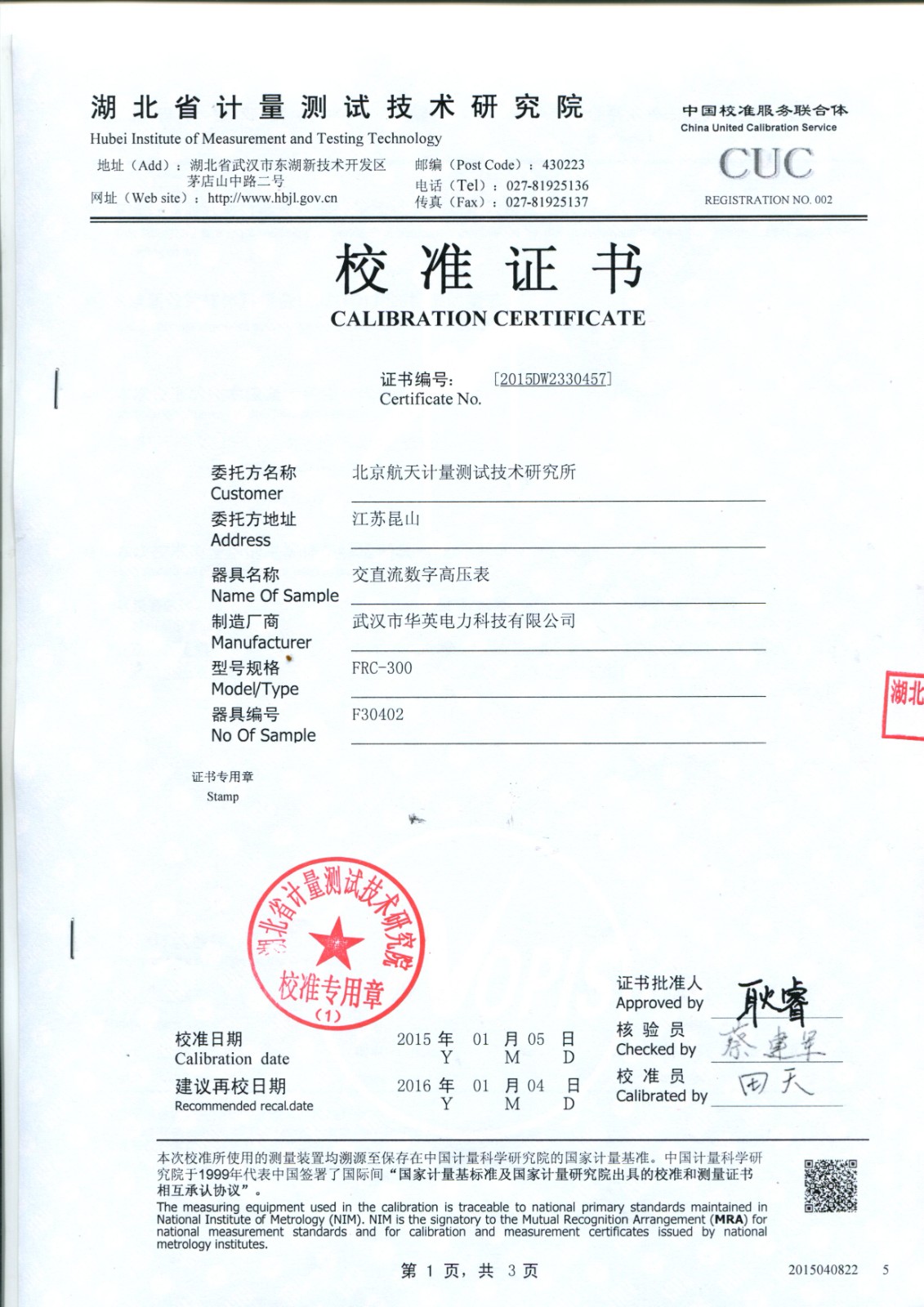

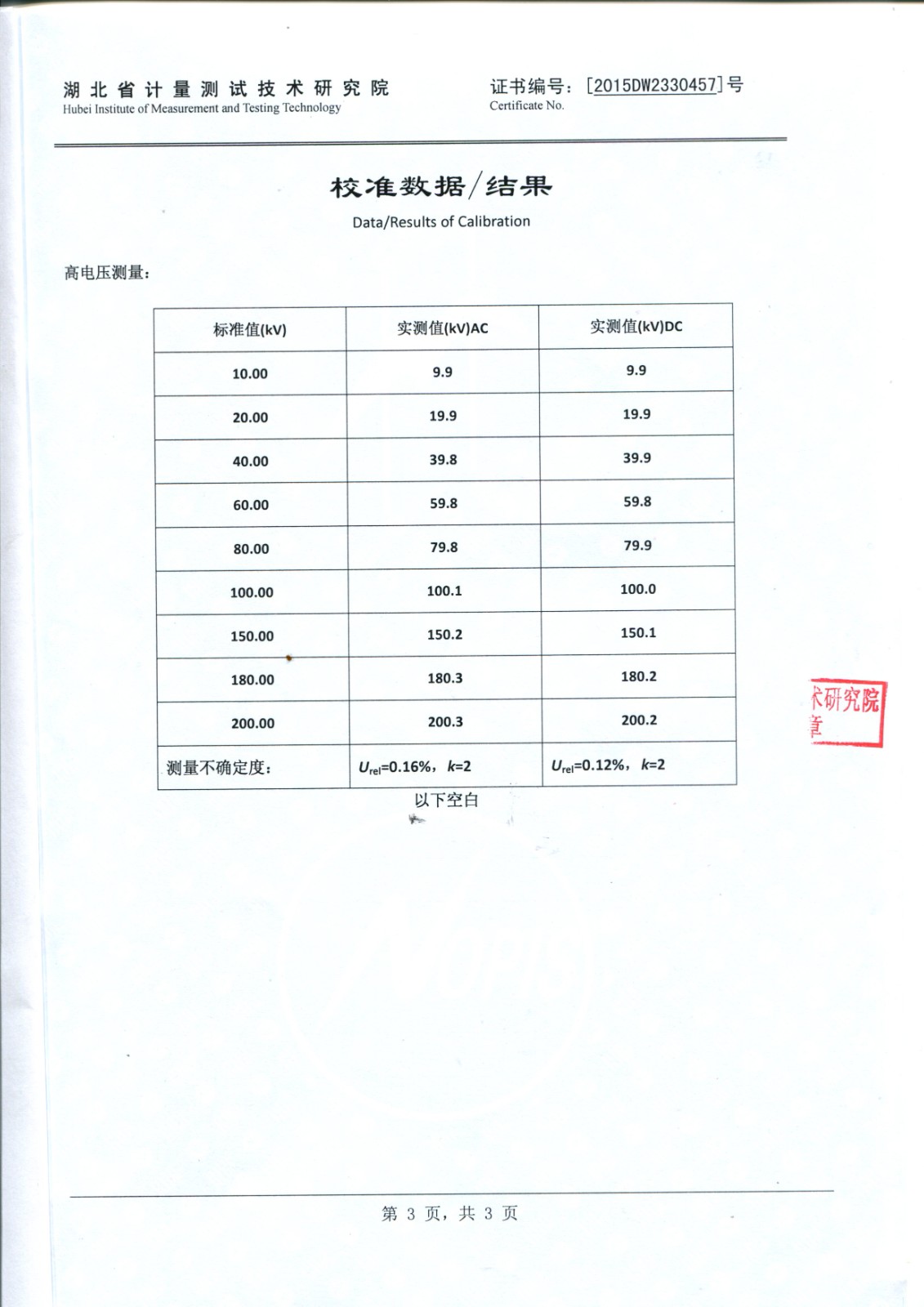

Calibration certificate of Voltage Divider FRC-300 issued by Hubei Institute of Measurement and Testing Technology
