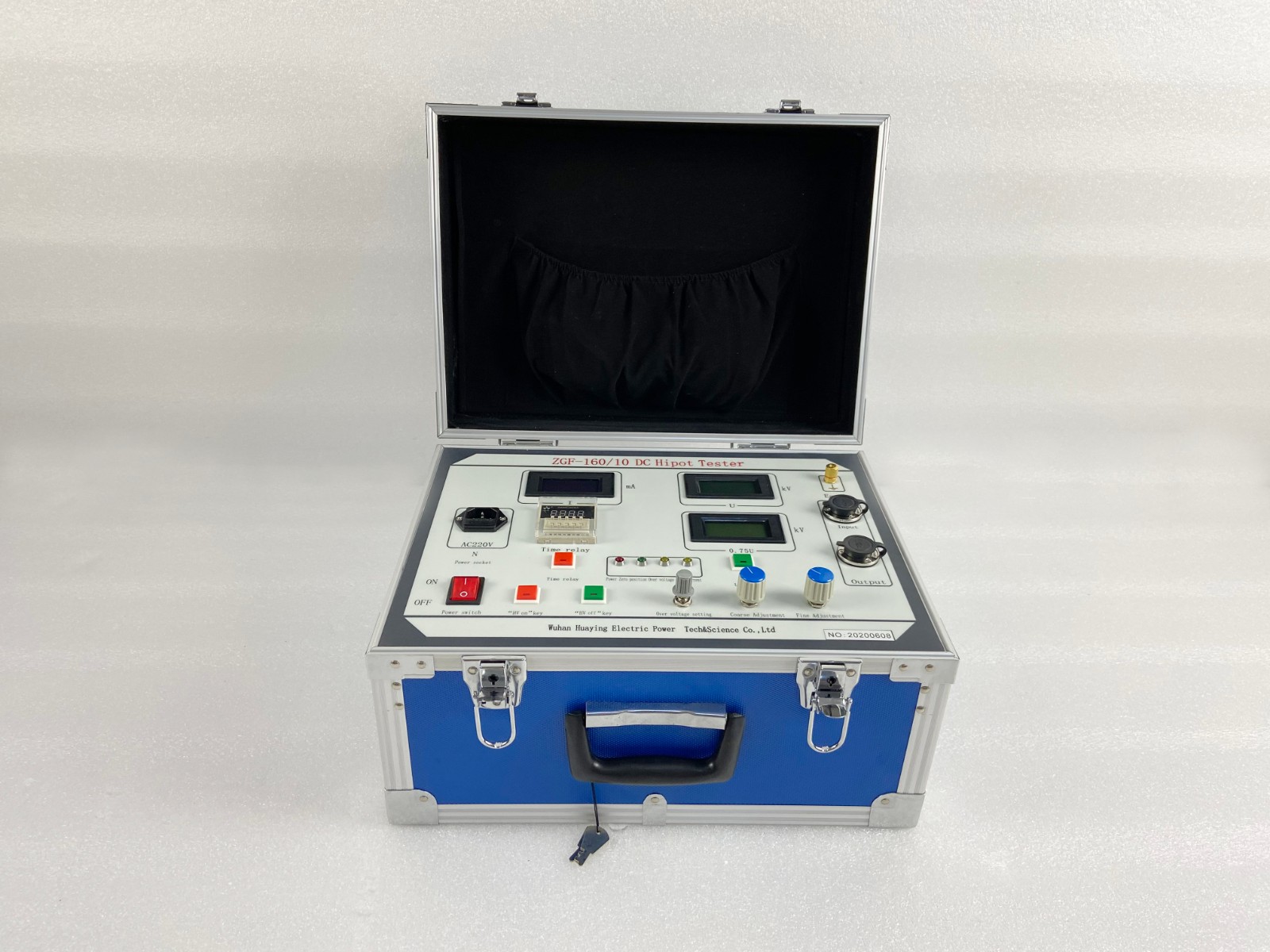

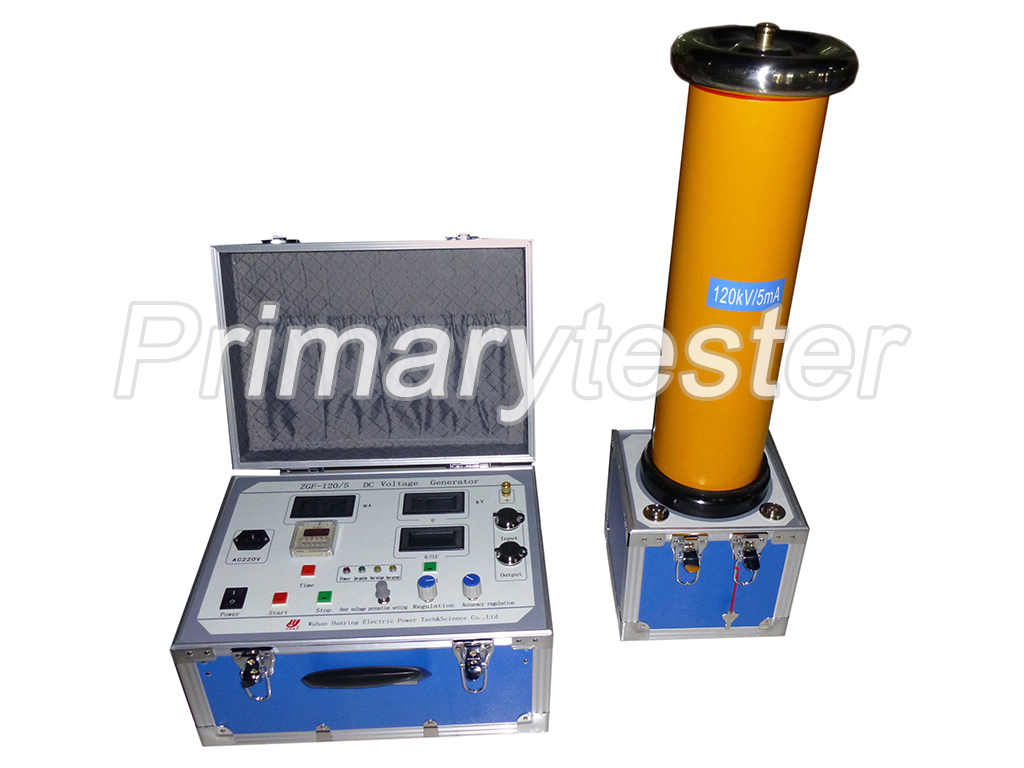

DC High Voltage Generator ZGF

Portable DC HV generator is important equipment for DC voltage withstand test and leakage current test of HV electrical equipments, cables, surge arresters in maintain service of electrical production, transmission and consumption departments. The tester has a good performance in stability and protection of faulty specimen breakdown. The separate units of tester make the operator keep enough safe distance with high voltage circuit.




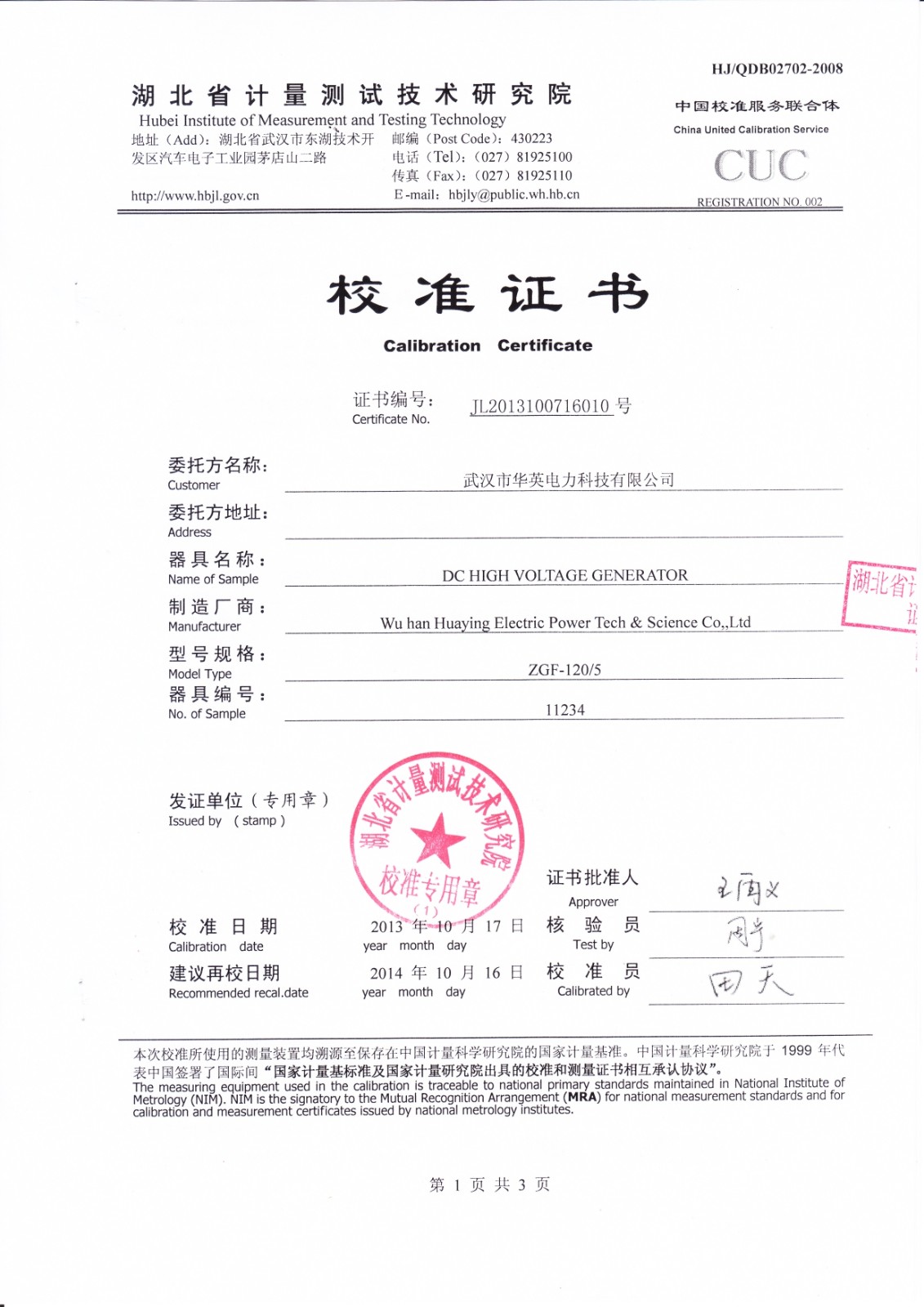

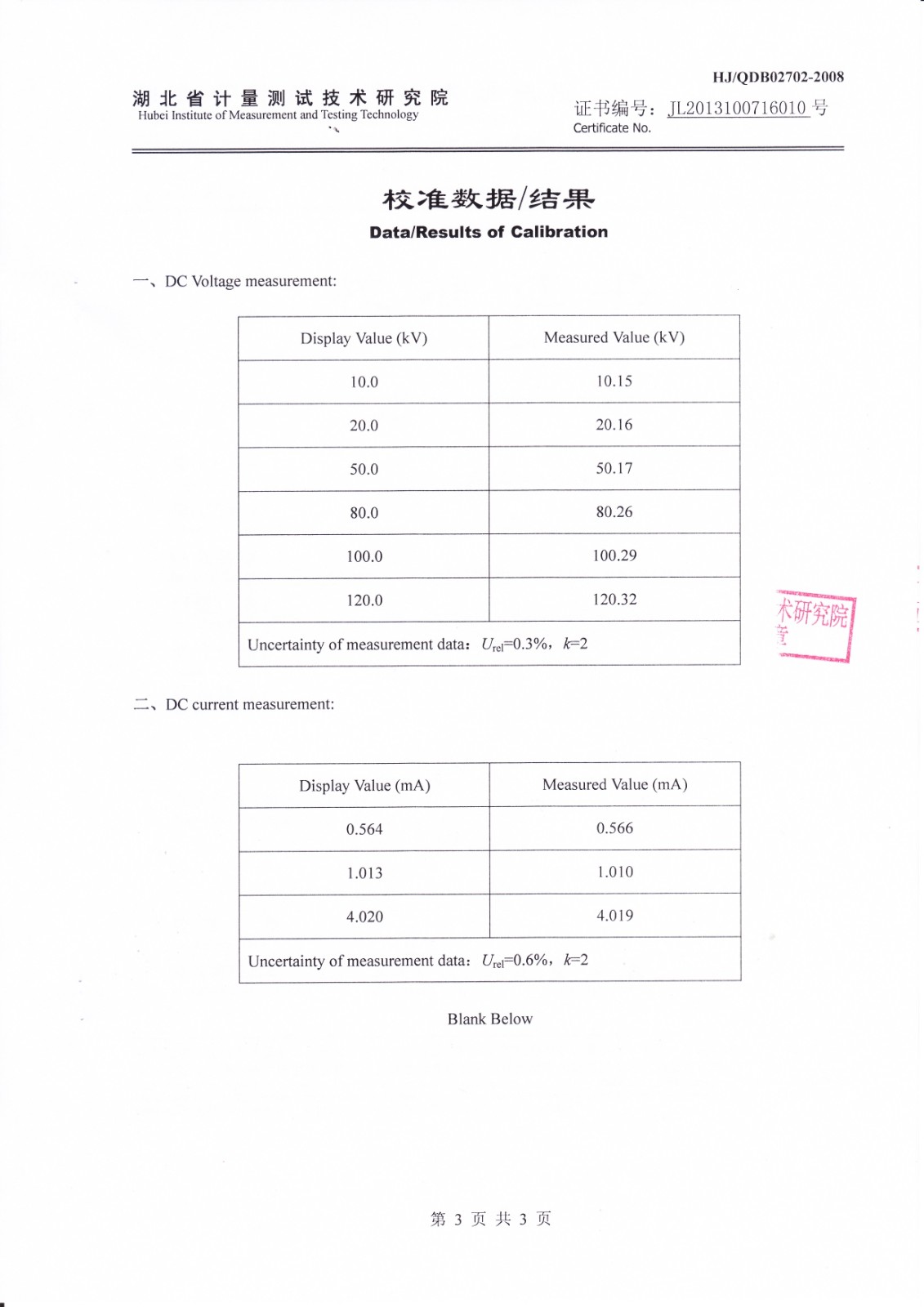

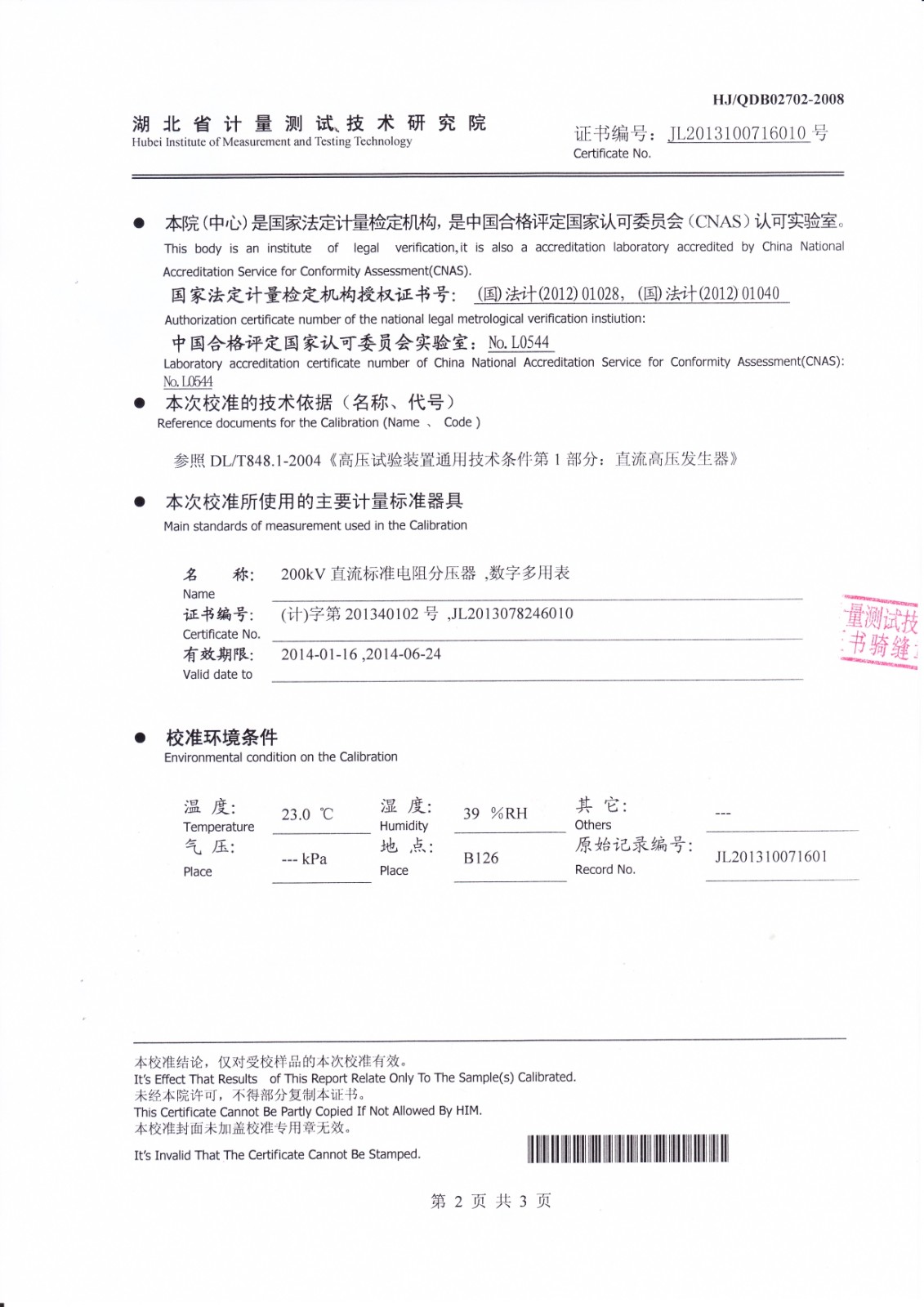

Features
Technical Specification

1.   Power: AC220V+10%, 50Hz+1%

2.   Output high voltage indicator error: <1%Readings+1D

3.   Output current indicator error: <1%Readings+1D

4.   Ripple contain factor of high voltage: <0.5% Readings+0.05%Full scale

5.   0.75 times output voltage indicator error: <1% Setting value, can be locked

The model of ZGF is defined as ZGF Max voltage / Max current. Such as ZGF 200kv/2mA stand for the maximum voltage output is 200kv and the maximum current is 2mA

Table 1 Detail parameters for ZGF series


rating

output DC

voltage

(KV)

rating

output DC

current

(mA)

rating

output

powe(W)

Voltage

Booster

Height(m)





weight(kg)

ZGF-60

60

2

120

0.5

16


60

3

180

0.5



60

10

600

0.5


ZGF-120

120

2

240

0.8

20


120

5

600

0.8



120

10

1200

0.8


ZGF-200

200

2

400

1.2

26


200

5

1000

1.2



200

10

2000

1.2


ZGF-300

300

2

600

1.7

31


300

5

1500

1.7



300

10

3000

1.7


Above model is the common requirement. It also can be customized for different voltage and current output.
