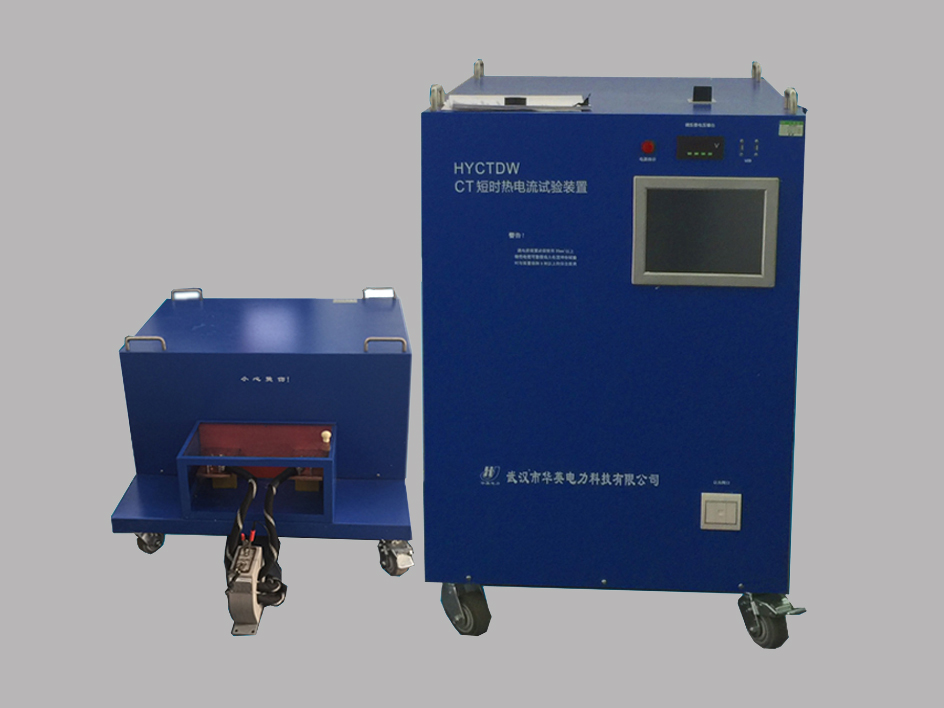

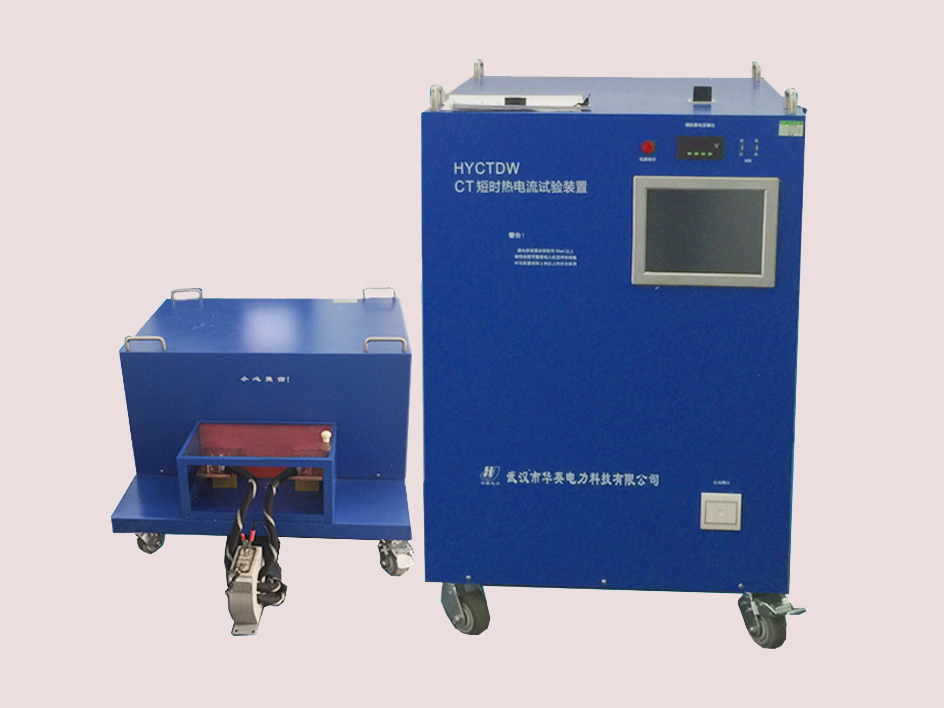

Short-time Thermal Current Test Set HYCTDW

Automated short-time thermal test set can be applied to conduct high thermal current test for CT, circuit breaker and other primary equipment of power system. The tester has the following advantages: volume and weight reduction, low cost, full-automatic short-time thermal current, easy and safe operation, etc.

Features
Technical Specification
Maximum output current0~25000A (greater output current is customizable), output current error is
less than 10%% of set value
Output capacity250KVA (customizable)
Current of sample primary circuit0~25000A, with measurement error of 0.1%FS
Voltage of sample primary circuit0~10V, with measurement error of 0.1%FS
Voltage and current waveform sampling rate during test25 kHz, with time measurement error of 0.04ms
Power supplyAC380V 45Hz~65Hz
Operating temperature0~50 ℃, humidity is less than 90%


Product Certificates

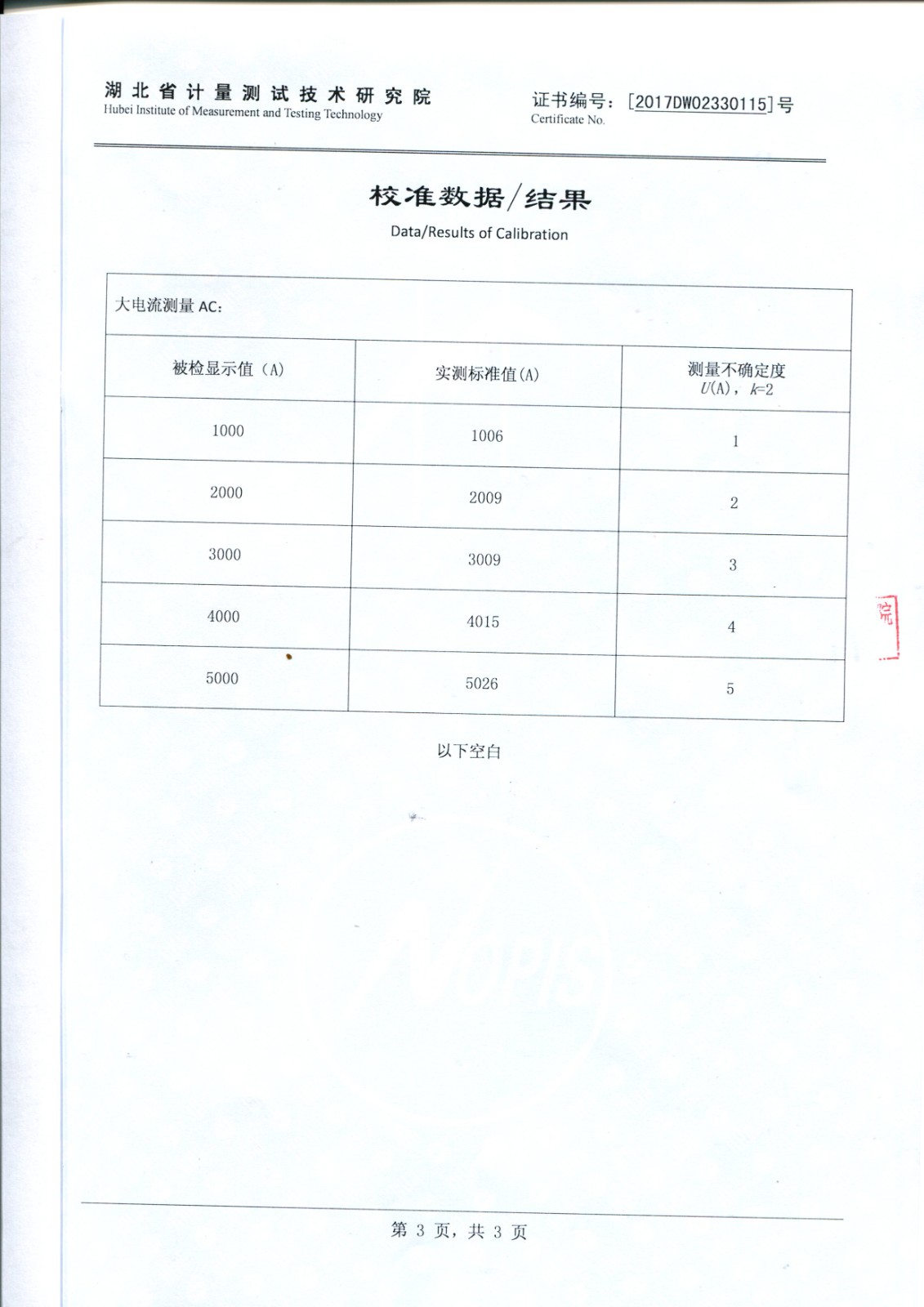

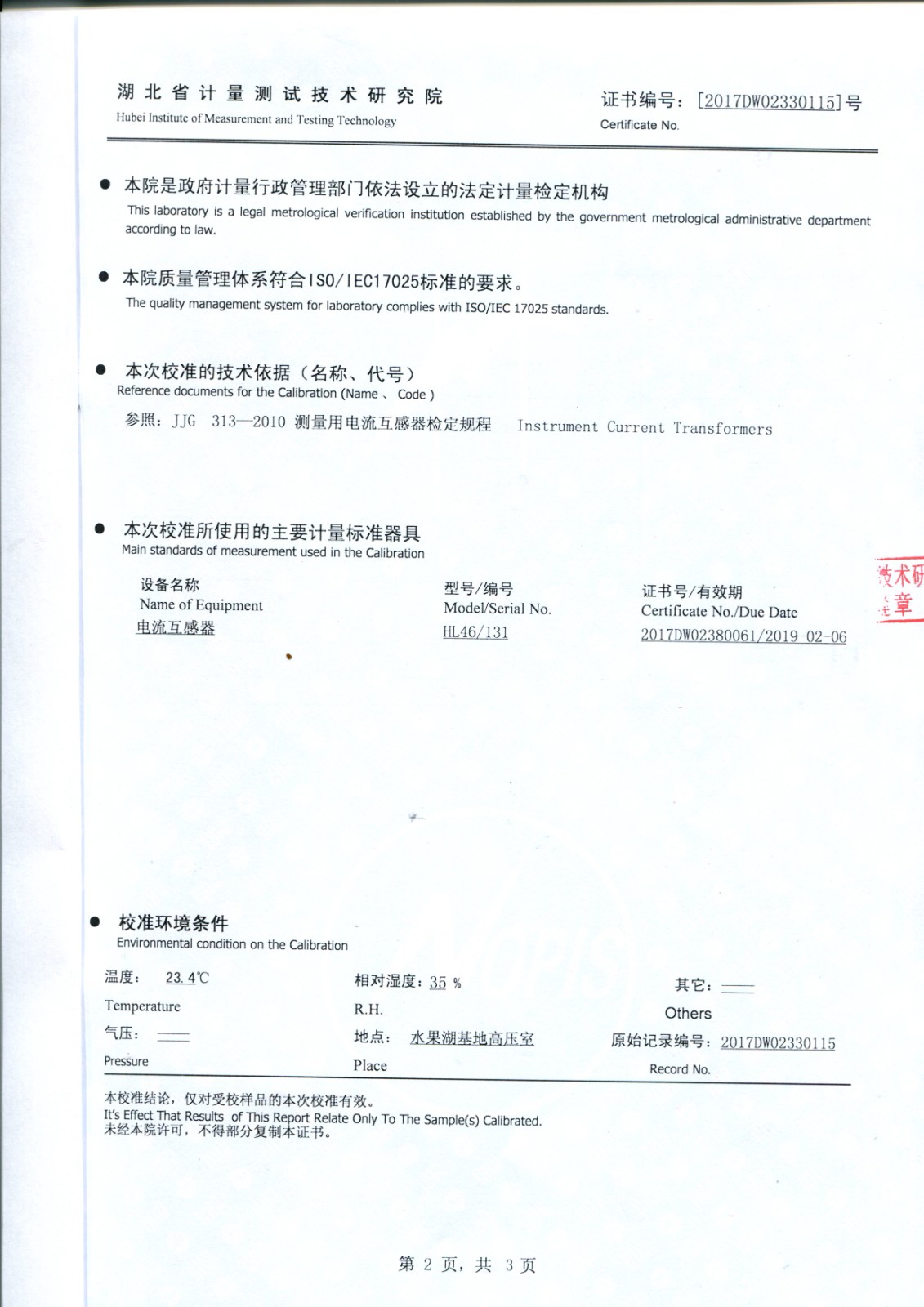

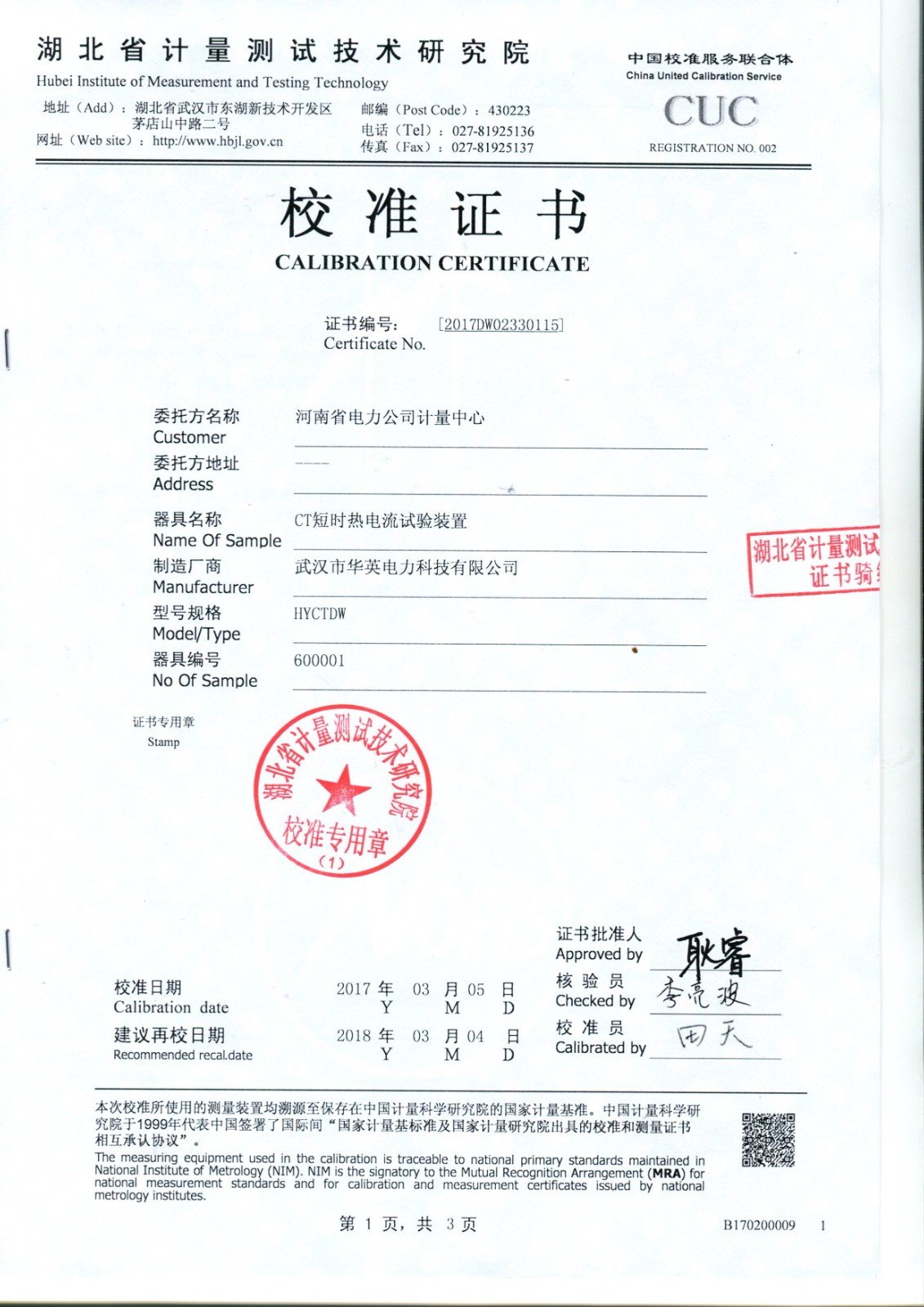

Calibration certificate of Short-Time Thermal Current Test Set HYCTDW issued by Hubei Institute of Measurement and Testing Technology
