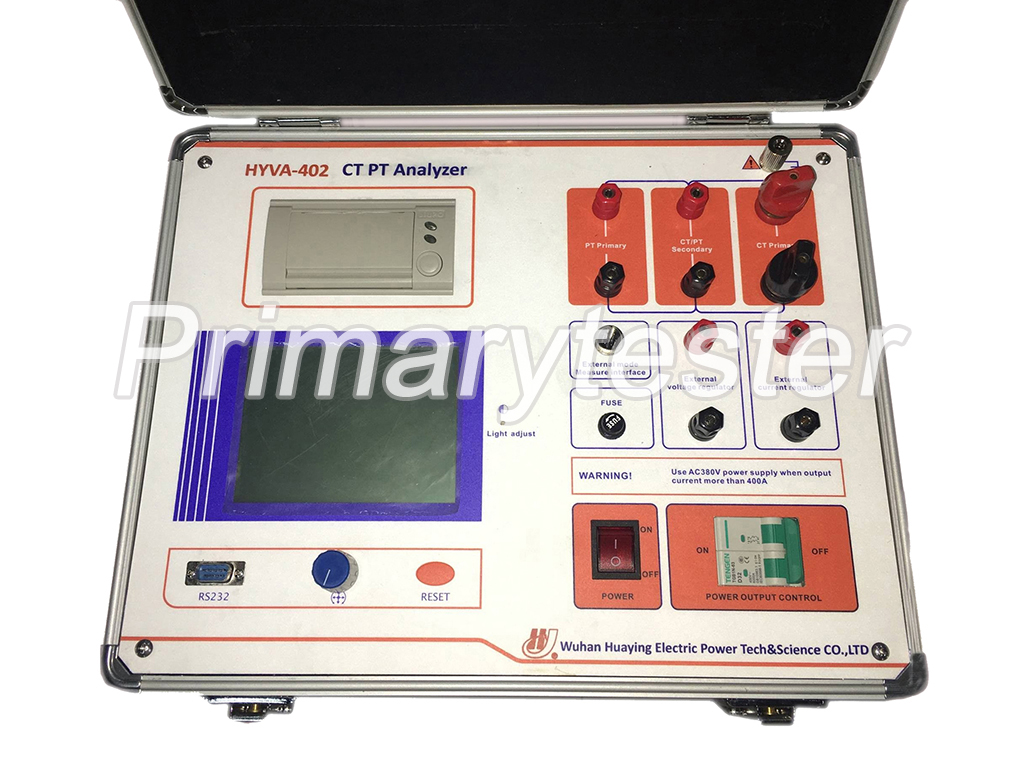

CT PT Analyzer HYVA-402

HYVA-402 is a full automatic transformer comprehensive tester developed by Wuhan Huaying electric power tech&science co.ltd.The tester can finish: CT/PT volt-ampere characteristic curve test, CT/PT polarity test, CT/PT transformation ratio test. It can automatically calculate error curve of any CT point, CT/PT ratio difference and other result parameters.

Features
Technical Specification

Input voltage

Output scope

Measuring scope

Measuring degree

Device main engine

220V

0~600V、0~20A

0~600V、0~20A

0.5%

380V

0~1000V、0~20A

0~1000V、0~20A

0.5%

220V

0~600A

0~600A

Transformation ratio measuring precision 1%

External voltage raising machine

220V

0~1650V、0~3A

0~1650V、0~3A

0.5%

380V

0~2000V、0~3A

0~2000V、0~3A

0.5%

External current raising machine

220V

0~2000A

0~2000A

Transformation ratio measuring precision 1%

External voltage adjustment machine



0~1000V、0~30A

0.5%

Device working power

AC   220V/380V 50HZ

External dimensions

420×330×320㎜

Weight

24㎏
