Power On Cable Identifier HYCI-500

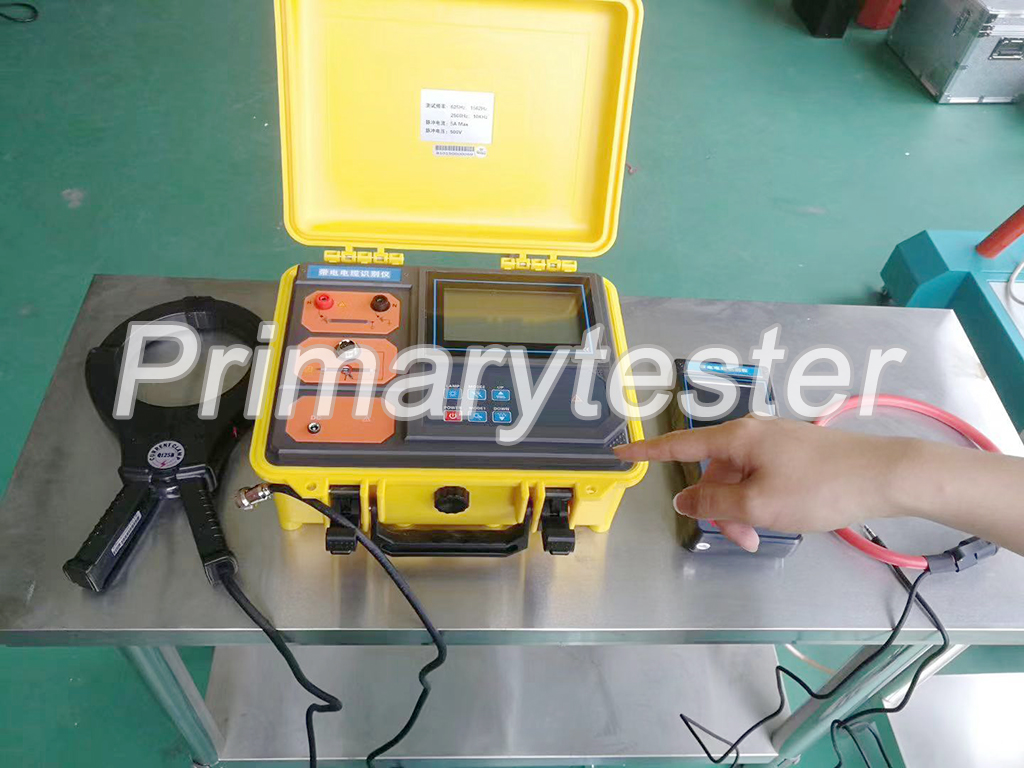

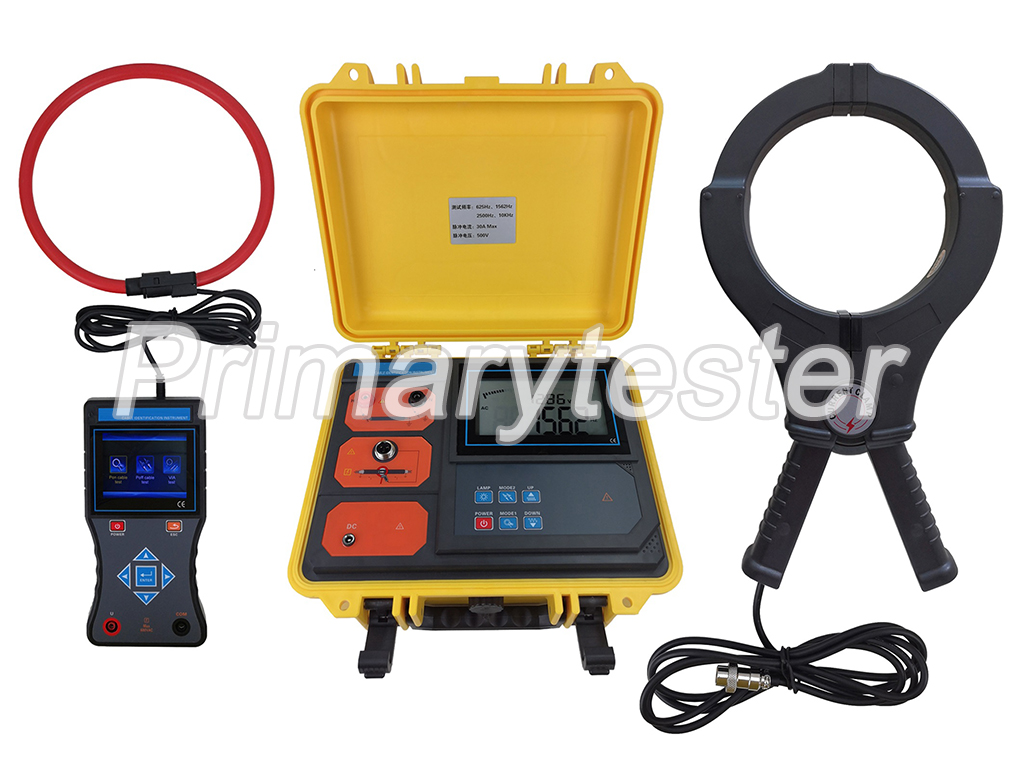

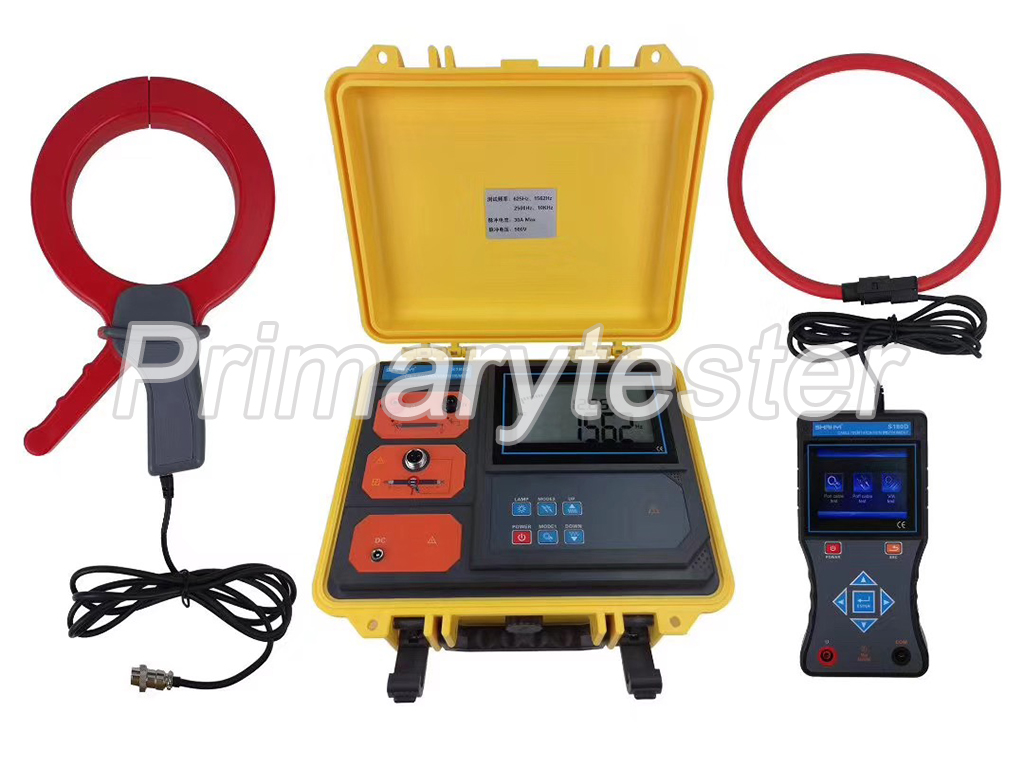

The Power On Cable Identifier is designed for power cable engineers and cable workers to solve technical problems in cable identification. This product has the functions of power on cable identification, power off cable identification, AC current test and AC voltage test. It consists of transmitter, transmitting current clamp, receiver, receiving flexible current clamp and so on.

Features
Technical Specification

Function

Pon cable identification, Poff cable identification,Voltage testing,Ampere Testing

Battery

Rechargeable lithium batteries: transmitter 11.1V; receiver 7.4V, full-charge continuous operation for about 8 hoursattery

Display

Receiver super large LCD real-time display residual battery voltage; Receiver 3.5 inch color screen, color icon

Transmit HZ

625Hz、1562Hz、2500Hz、10kHz

Pulse   voltage

500V

Pulse   Current

30A Max;1times/sec(Depending on the circuit resistance); pulse width 2ms

Range

AC   0.00V~600V; AC 0.00A~5000A(50Hz/60Hz)

Resolution

AC   0.01V,0.01A

Clamp   size

Transmitter   clampφ120mm;Flexible clampφ200mm

Length   of Testing wire

Crocodile clamp test line 3 meters; watch pen test line 1 meter

Signal   status

Transmitting signal: dynamic display of bar chart

Success to identify:icon √;non-target carble:icon ×

Size

Transmitter: 320mm×275mm×145mm;receiver: 207mm×101mm×45mm

weight

transmitter:2.5kg;receiver:540g;total:3.3 kg

package

LWH   400mm×245mm×335mm
