AC resonance test set HYXZ

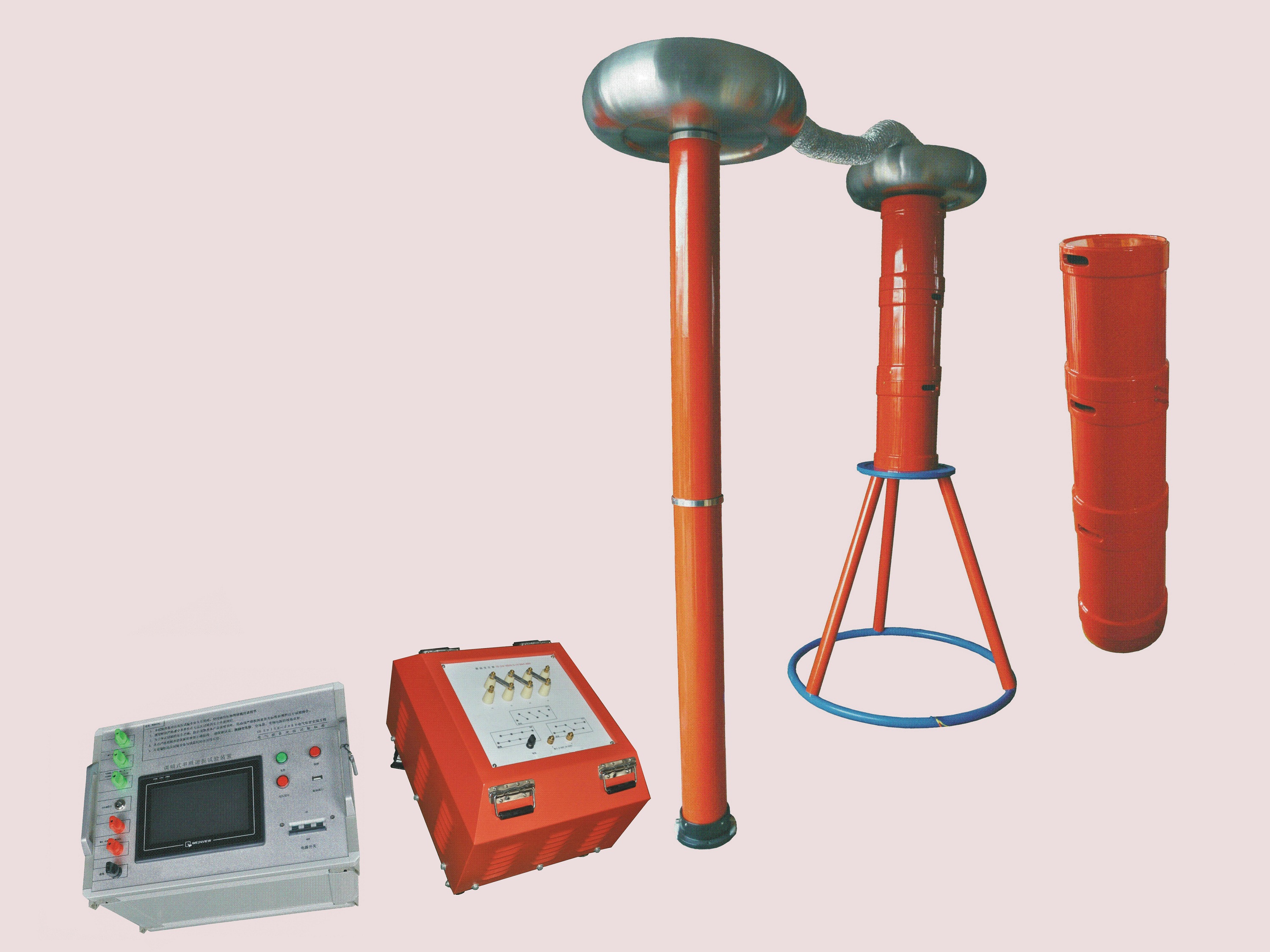

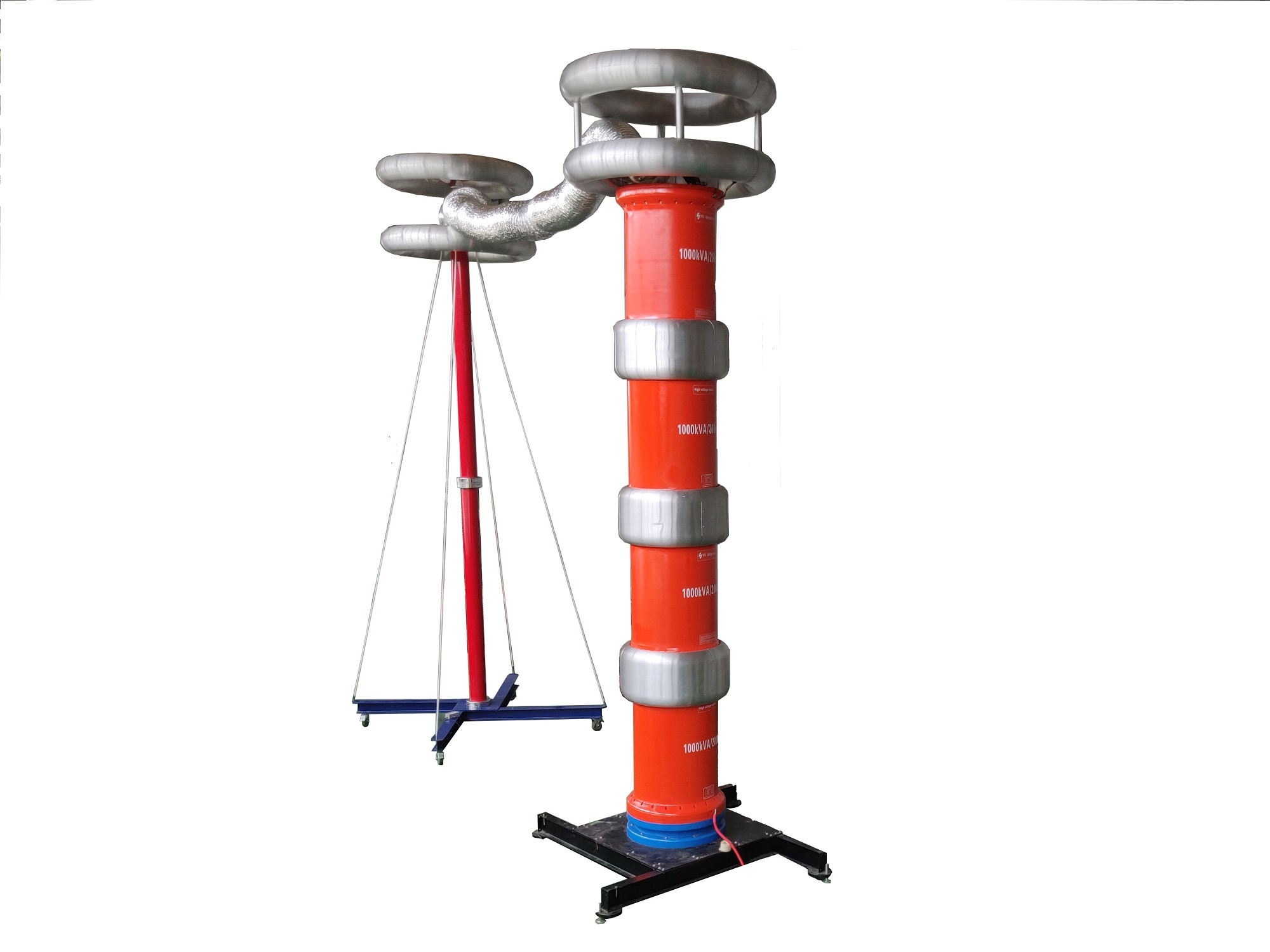

The test set is mainly for cable, main transformer neutral point, GIS, switches whose rated voltage not more than 110kv and other AC high voltage withstand test. The test set consists of variable frequency power supply, excitation transformers, reactors, capacitive voltage divider.

Features
Technical Specification

Power supply:

                       380V±10%, three-phase 50Hz/60Hz

Rated voltage output:

0~1000KV

Max output Capacity:

0~6400KVA

Test frequency range:

30~300HZ

Continuous duty cycle:

60min

Quality Factor:

                        30~80

Frequency setting   resolution:

0.1HZ

Test voltage waveform:

sine wave, waveform deviation factor : ≤1%

Temperature:

0~50°C

Humidity:

≤ 90%RH
