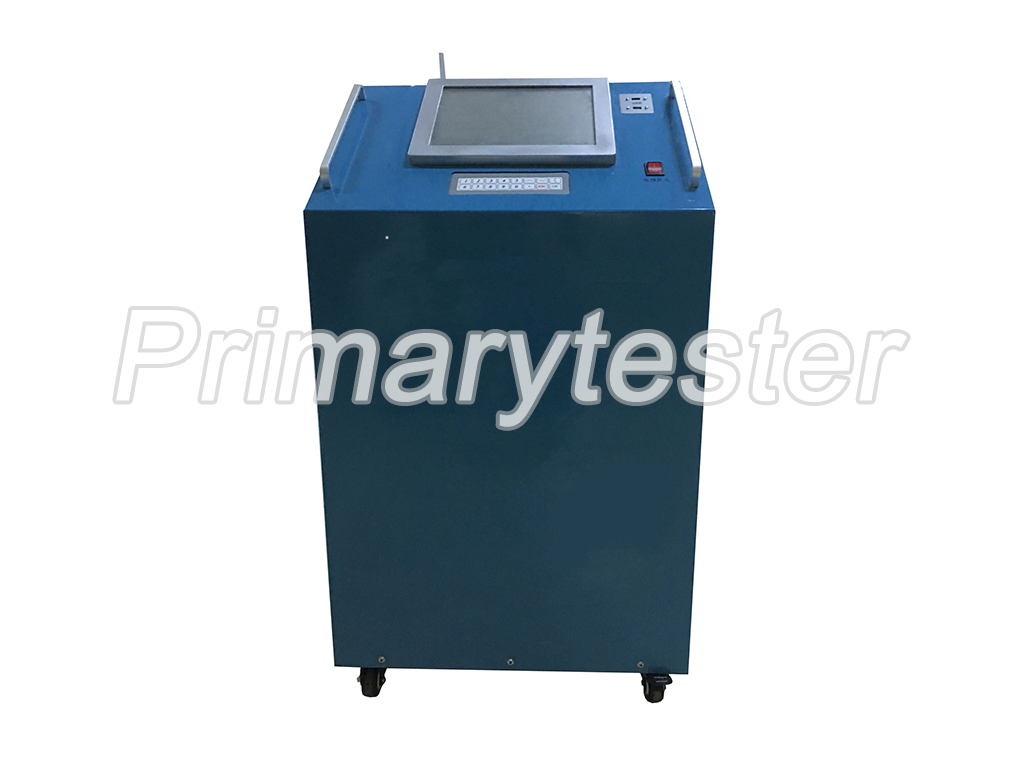

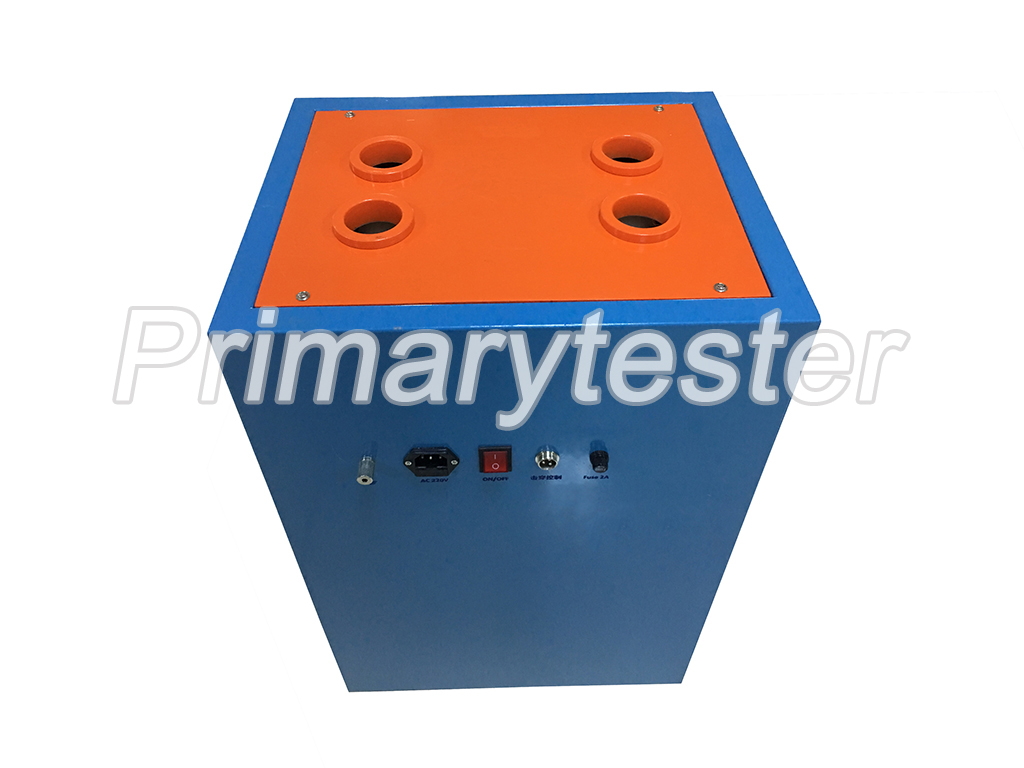

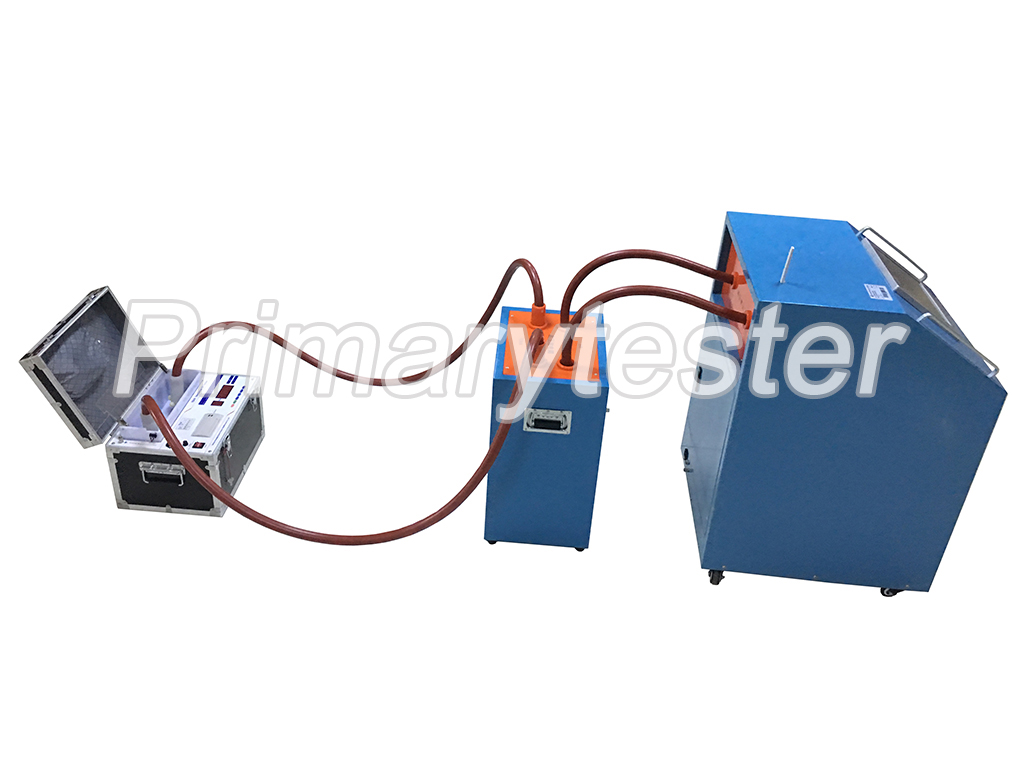

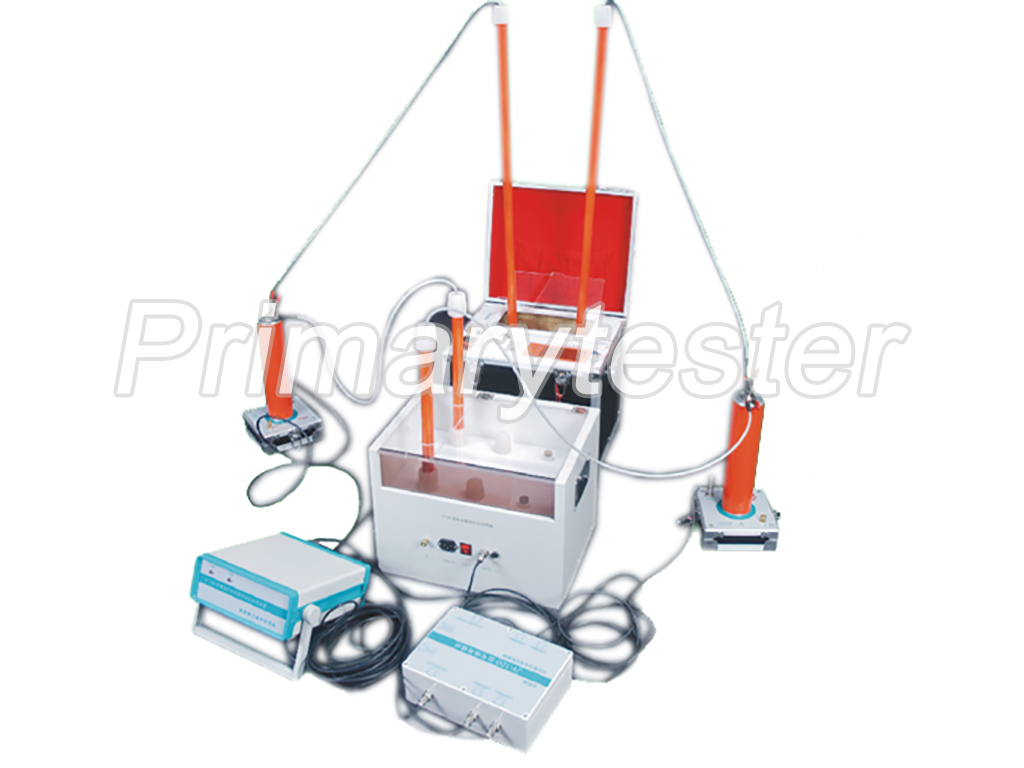

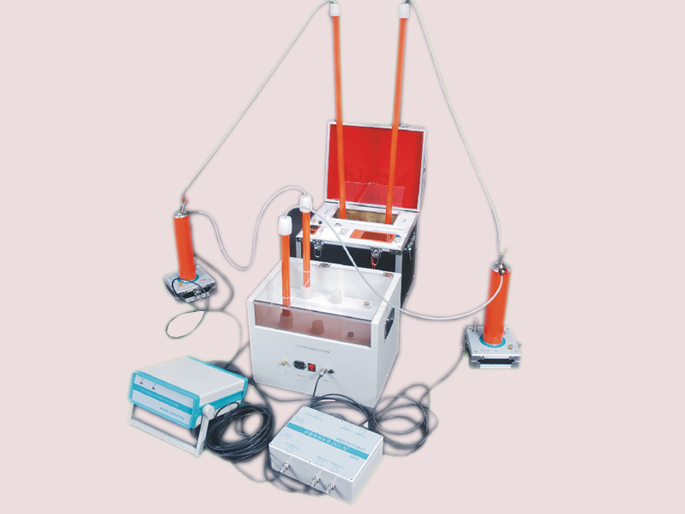

Insulating Oil Tester Calibration Device JY-100

The insulating oil tester calibration device is a professional instrument designed for the calibration of the insulating oil dielectric strength tester of the electric power test and measurement institutes. It can complete the detection of performance parameters such as breakdown voltage, boost rate and waveform distortion of the insulating oil dielectric strength tester, and automatically report the test results. It uses the voltage at the instant of breakdown of the insulating oil dielectric strength tester as the basis for detection, and calculates the error of the instrument, which is more intuitive, accurate and effective than the previous method of steady-state calibration.

Features
Technical Specification
High voltage measurement0-80kv/0-100kv
High voltage measurement error0.2%RDG+0.02kv
High voltage rise rate measurement error< 0.5%RDG+0.005kv/s
High voltage distortion rate measurement error< 2%
Cut off time measurement error< 0.08ms
Measurement high voltage divider capacity< 20pf
Power supplyAC220V±10%  50Hz/60Hz
Environment temperature0~50℃
Humidity≤ 80%RH
Weight < 10kg
