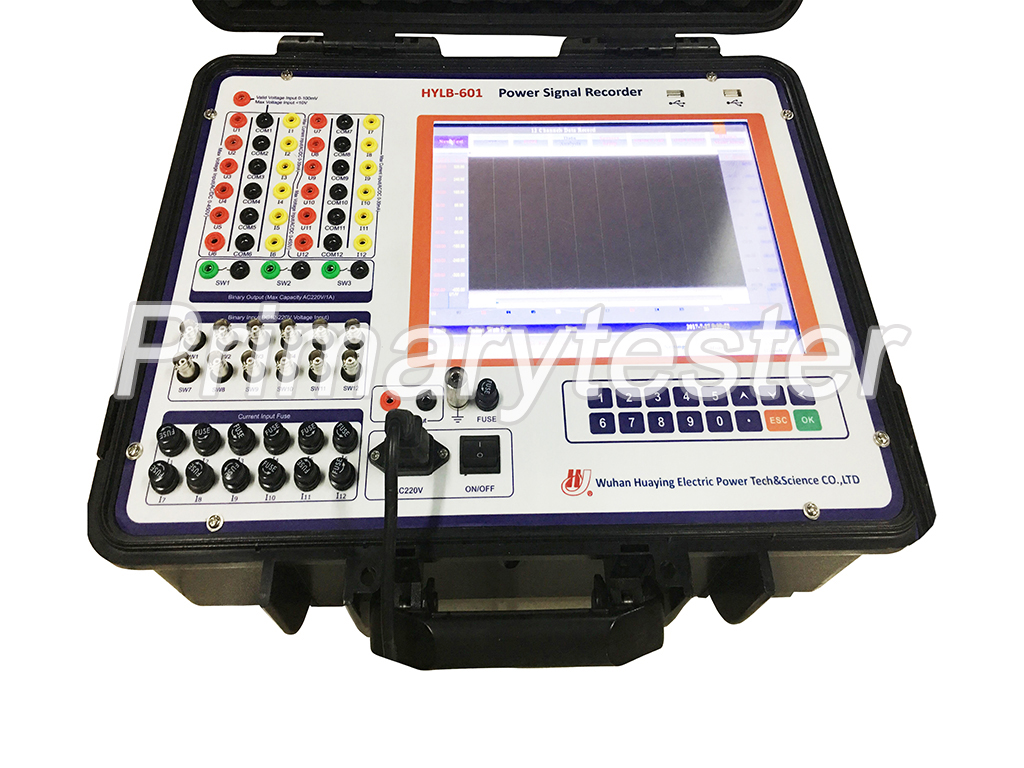

Power Signal Recorder HYLB-601

HYLB-601 is an instantaneous signal recorder applied in industry signal analysis. It takes IPC as the core for data sample and process. Special design makes the reorder has a good performance in anti-jamming and easy operation.

Technical Specification

1. Analog signal sample channels:12

2. Optional ranges: -450V~450V,-100V~100V,~10V~10V,-20mA~20mA , -100mV~100mV (only 1 channel)

3. Sample error:

    -450V~450V         error<0.5V

    -100V~100V         error<0.2V

    -10V~10V             error<0.01V

    -20mA~20mA      error<0.02mA

    -100mV~100mV  error<0.5mV

4. Binary signal input interface: 12

    Binary signal voltage ranges: DC 12~220V

5. Work condition:

    Power supply: AC220V±10%
    Power Frequency: 50Hz/60Hz
    Power consumption: ≤60w
    Temperature: -10 50°C
    Humidity: ≤85%RH

    Size: 448mm 260mm 150mm
    Weight :<10kg
