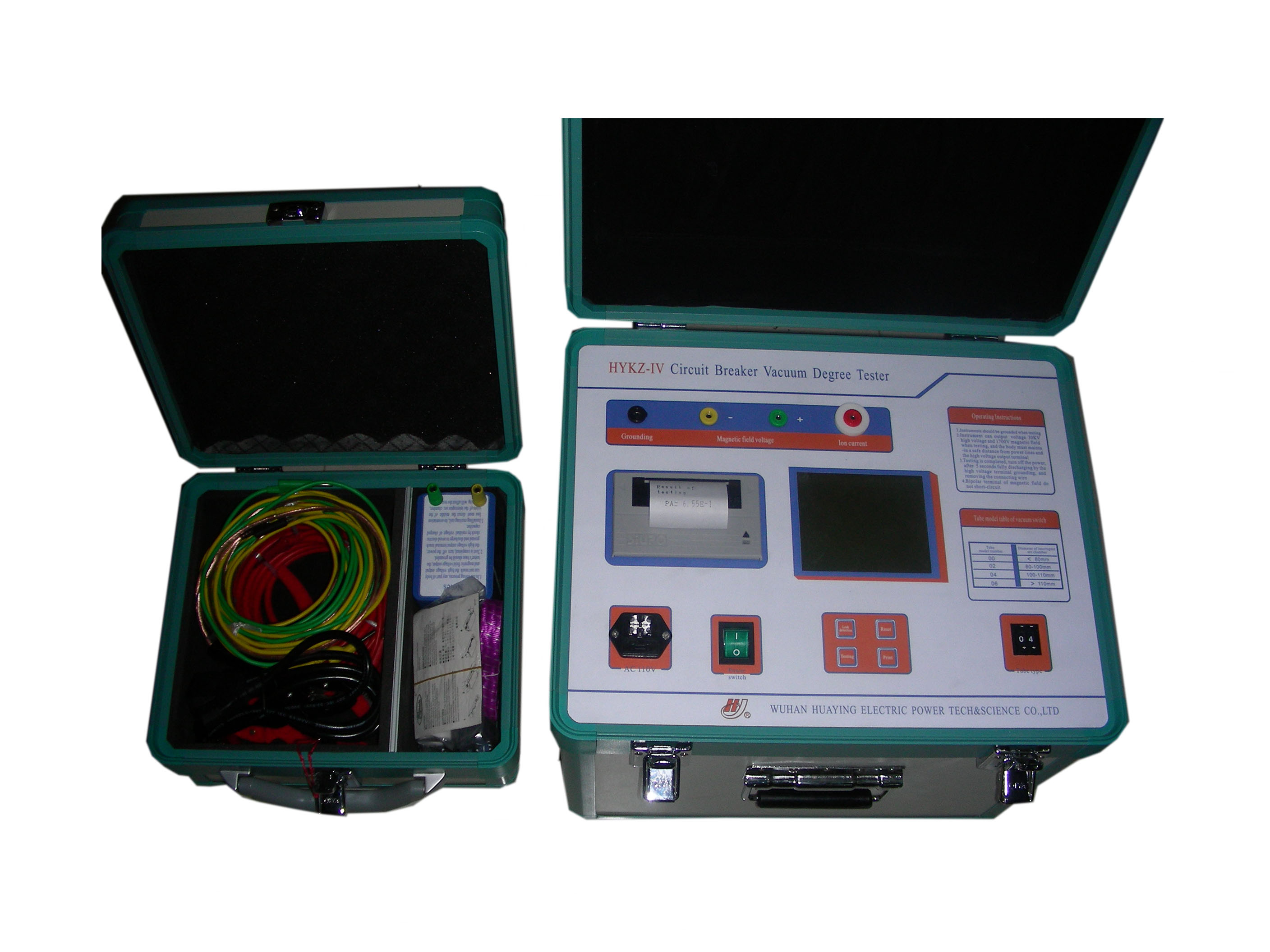

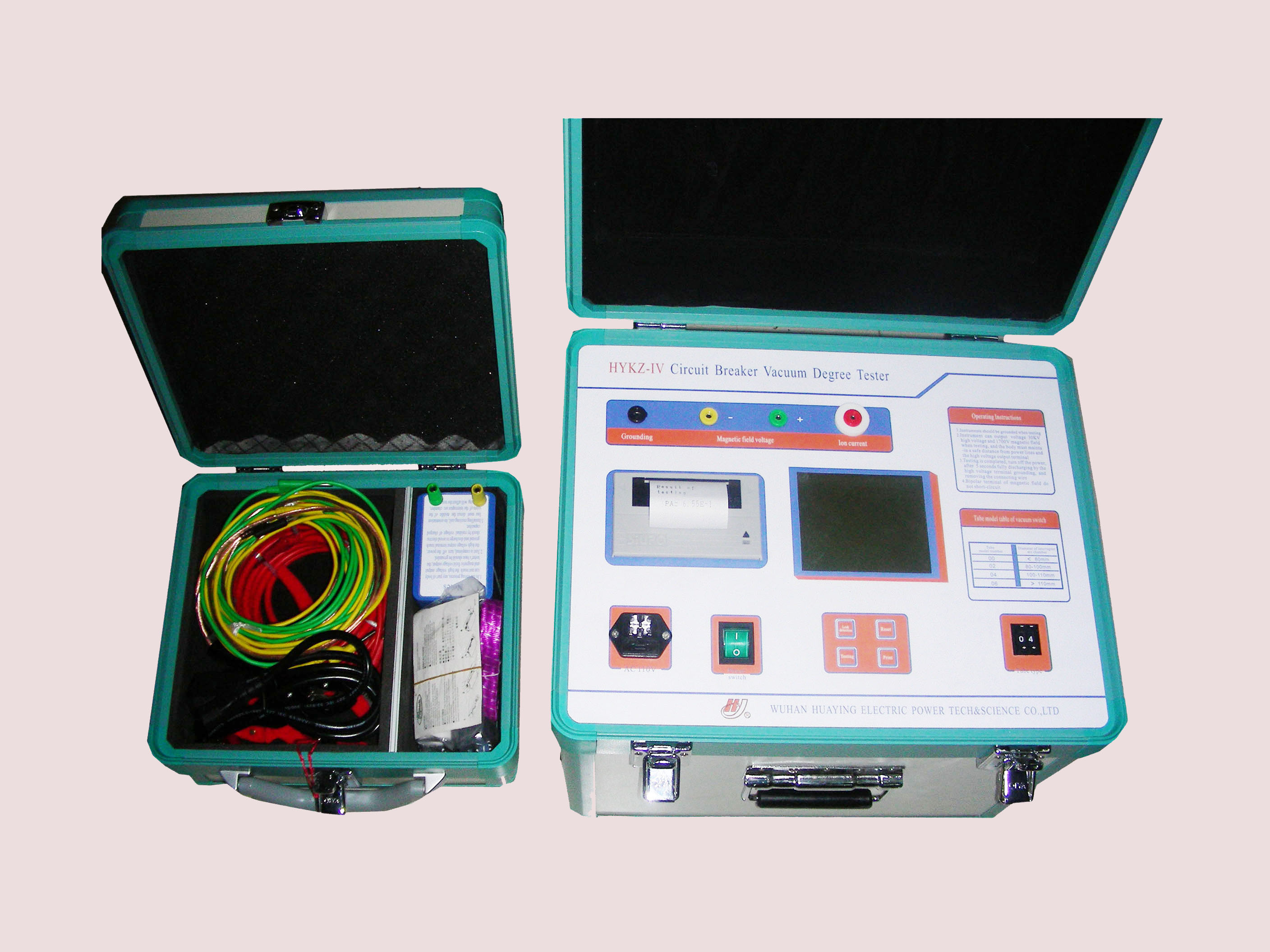

Circuit Breaker Vacuum Degree Tester HYKZ-Ⅳ

Circuit Breaker Vacuum Degree Tester HYKZ-Ⅳ  is the latest generation of products of our company. It has some features: higher measurement accuracy, better stability, more capacity. This instrument is a kind of practical testing instrument, which is widely used in the departments of electricity, steel, petrochemical, textile, coal, railway and so on.

Features
Technical Specification
Detection objectsvarious models of vacuum switch
Detection method
using new excitation coil and detect vacuum tube without disassembly
Application areathis instrument is a all-purpose type, can measure the vacuum of variety
models of open magnetic vacuum tube
Detection range10-5-10-1 Pa
Measurement accuracy10-5-10-4 Pa, 10%
10-4-10-3 Pa, 10%
10-3-10-2 Pa, 10%
10-2-10-1 Pa, 10%
Magnetic field voltage1700V
High-voltage of pulsed electric field30KV
Open distance of switch tube in vacuum testnormal open distance
Testing environment-20℃~ 40℃
Weight12kg
Dimension420 × 320 × 280 (mm)
Samplermagnetic coil
