Circuit Breaker Analyzer HYGK-303

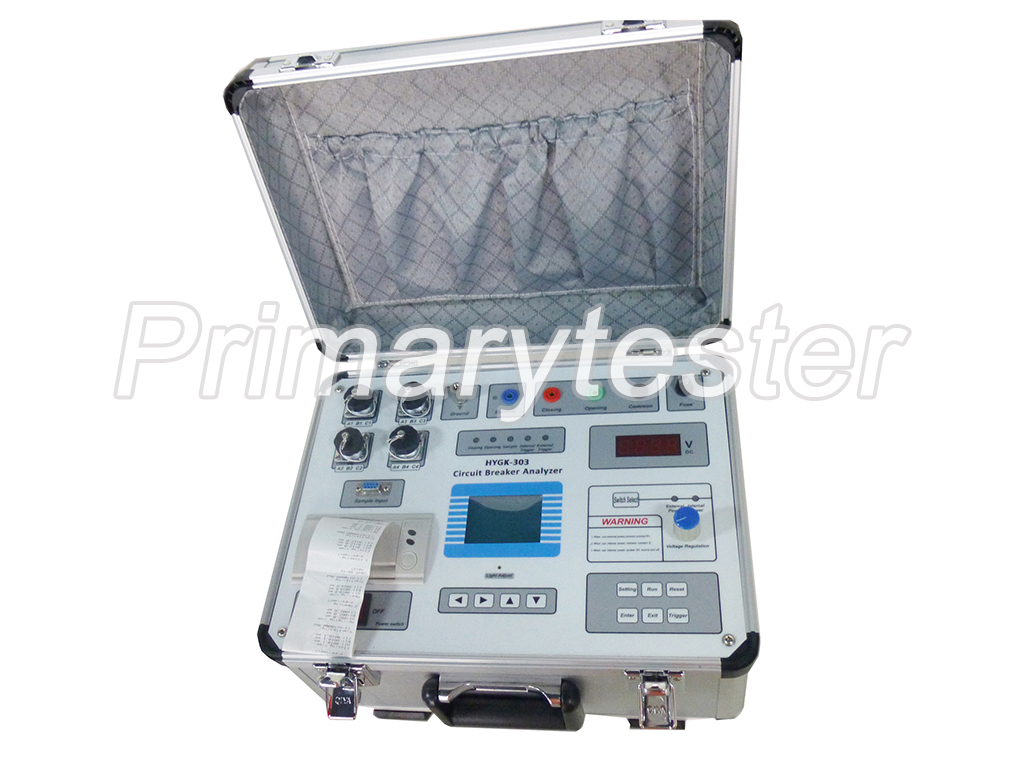

The HYGK-303 circuit breaker analyzer is our company's special_purpose instrument designed to meet the need of testing high_voltage switches . It takes the micro controller unit(MCU) as core to sample, process and then output. The main characteristic is that it's operated in Chinese. It has many advantages such as intelligence, multi-function, accurate data, strong anti-jamming, easy operation, small size, beautiful appearance, etc. It can test the switches as follows: indoors or outdoors switches with less oil or more oil, vacuum switches, SF6 switches and so on.
Datasheet
Video
Contact UsMajor testing items and functions:
1. Test 12 contacts’s opening time and closing time
2. Test reclosing time
3. Test opening_simultaniety and closing_simultaniety
4. Test speed at instant of contacts touching (separating)
5. Test springing time and springing magnitude
6. Test clearance between open contacts/gaps and overtravel between them(except in testing the vacuum switches, user has to set the clearance to the instrument beforehand) .
7. Test open (close) average speed
8. Display and print the speed-distance curve
1. Time measurement
Number of contacts to be measured :≤12
Range of the set time during the measuring course : 0 to 6 seconds
Resolution:0.1ms
2. Test of clearance between two open contacts, overtravel, springing magnitude
Range: <1000mm resolution:1mm
3. Error of measure
Error of time measured : ±1%
Error of clearance measured : ±1%
4. Operating conditions
Power supply: AC220V±10%
Frequency: 50HZ/60HZ
Power cost: ≤60W
Temperature of using environment: 0~40℃
Humidity of using environment: ≤90%RH
Size: 400mm*350mm*200mm
Weight: 7kg
-
